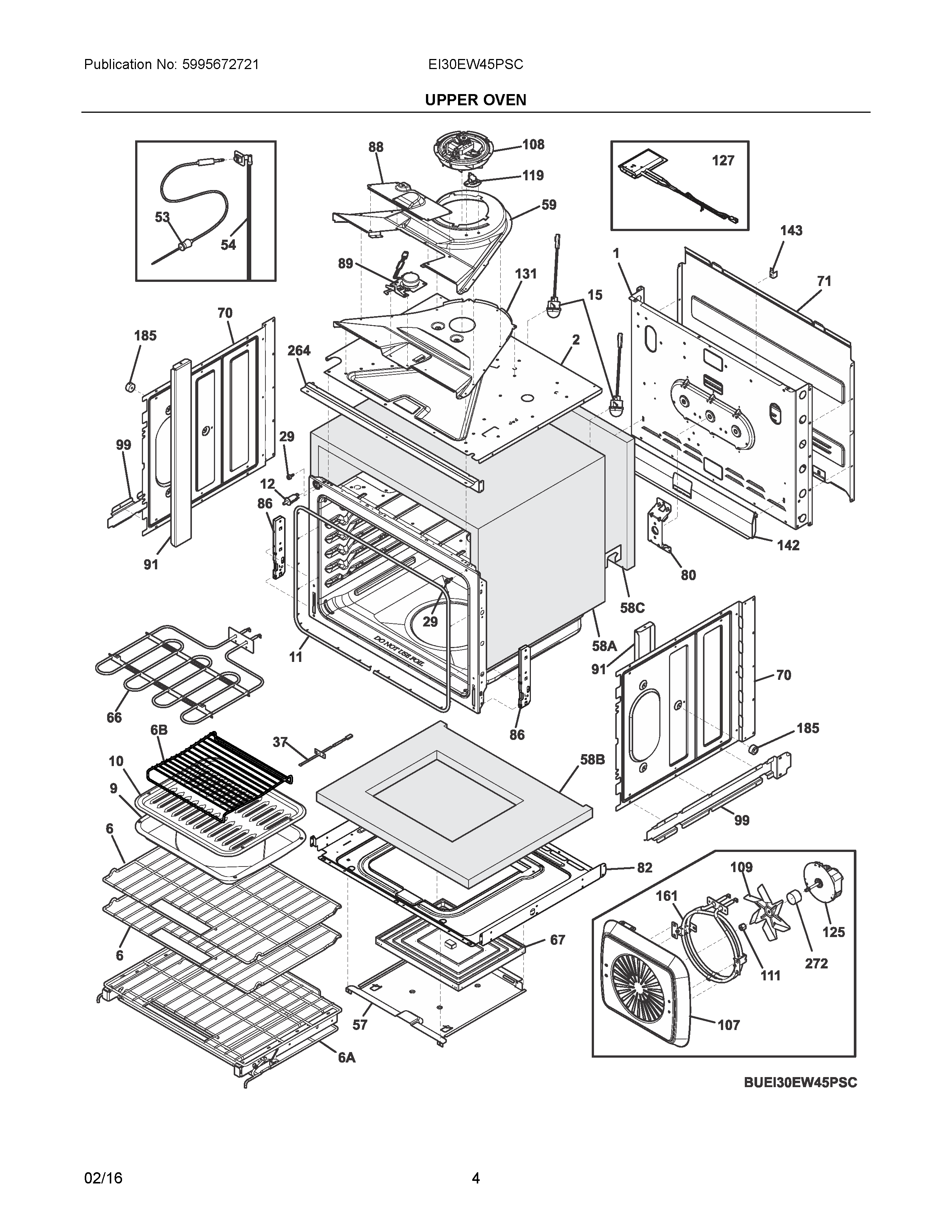

EI30EW45PSC 03 – UPPER OVEN

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI807597603 Frigidaire Oven Screw
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NIAWCI 318231870
NIA316418900 Frigidaire Oven Screw
NIAWCI 318579001
NI5304501346 Frigidaire Harness
NI316021109 Frigidaire Oven Screw
NI5303289910 Frigidaire Oven Screw
NIB5303323130 Frigidaire Oven Screw
1WCI 139017304
2SHIELD, INSULATION, TOP
6AWCI 139013308
65304514983 Frigidaire Oven Rack
6BWCI 318219500
9316081901 Frigidaire Oven Baking Pan
10316082001 Frigidaire Oven Insert
11807545504 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
29316517601 Frigidaire Bumper
37SENSOR
535304503737 Frigidaire Black Meat Temperature Probe
54139017203 Frigidaire Assembly Receptacle
57807988901 Frigidaire Oven Panel
58C139021400 Frigidaire Insulation
58B807989001 Frigidaire Insulation
58A139001700 Frigidaire Insulation
59139027600 Frigidaire Oven Duct
665304521861 Frigidaire Element
67318601604 Frigidaire Oven Bake Element
70139000601 Frigidaire Oven Shield
71139020000 Frigidaire Shield
80139021101 Frigidaire Bracket Assembly
82807988802 Frigidaire Shield
86139026900 Frigidaire Receptacle
885304506964 Frigidaire Oven Cover
89139021302 Frigidaire Oven Motor
91WCI 5304500329
99139005201 Frigidaire Bracket
107139013902 Frigidaire Oven Cover Assembly
108318575614 Frigidaire Oven Wall Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318578506 Frigidaire Oven High Limit Thermostat
125139008504 Frigidaire Oven Motor
127WCI 807123502
131139027700 Frigidaire Oven Duct
1425304507678 Frigidaire Shield
143318172904 Frigidaire Bracket
161139006500 Frigidaire Oven Element
185318531800 Frigidaire Oven Spacer
264139017601 Frigidaire Oven Trim
272139021700 Frigidaire Oven Tube
