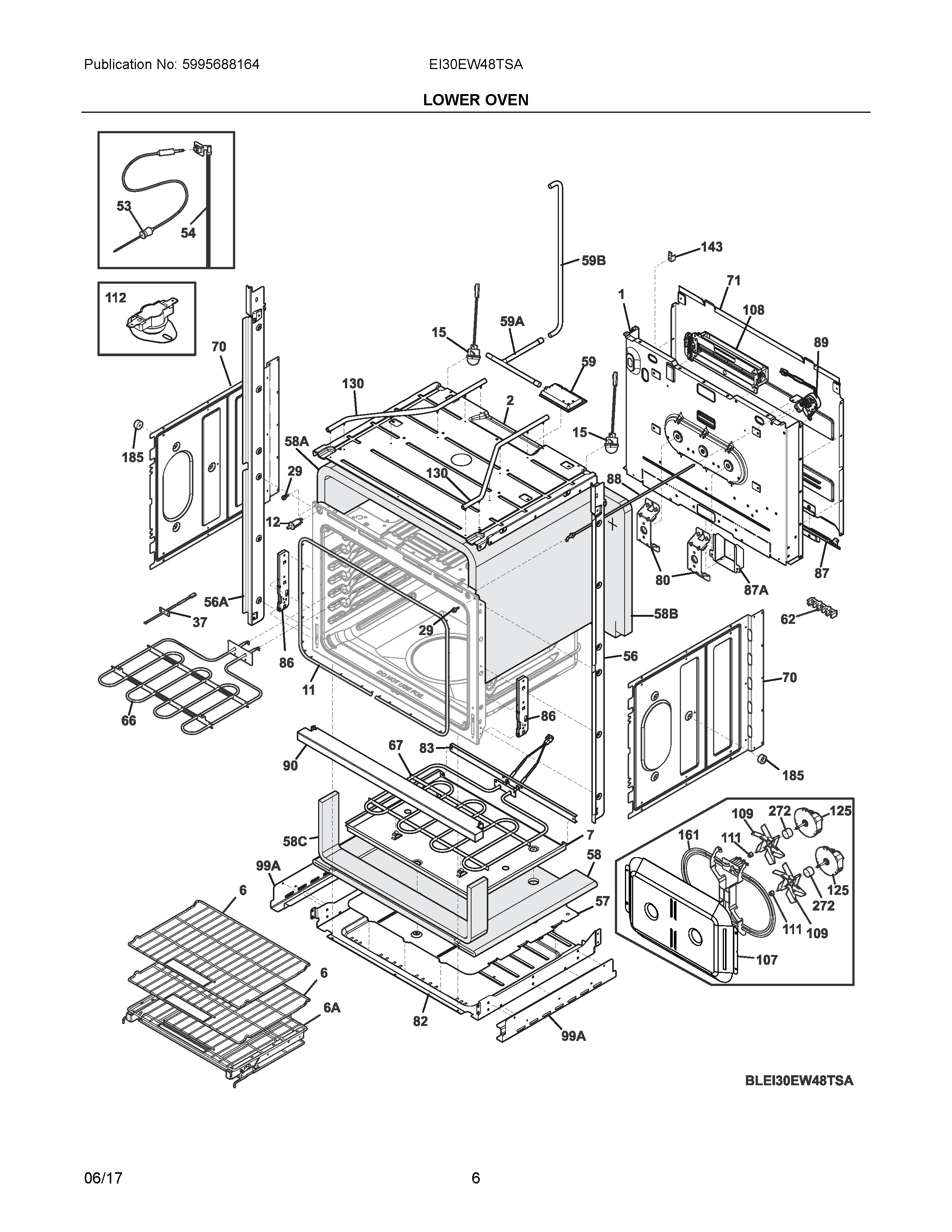

EI30EW48TSA 04 – LOWER OVEN

EI30EW48TSA 04 – LOWER OVEN

Written by

in

EI30EW48TSA 04 – LOWER OVEN

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIA316418900 Frigidaire Oven Screw
NIA139022101 Frigidaire Insulation
NI318165800 Frigidaire Oven Door Glass Spacer with Screw
NIA5304514913 Frigidaire Harness
NI5304470882 Frigidaire Oven Screw
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NIAA5304500643 Frigidaire Bracket
NI807597603 Frigidaire Oven Screw
NI5304506955 Frigidaire Harness Assembly
NIWCI 5304507932
NI5303289910 Frigidaire Oven Screw
NIB5303311164 Frigidaire Oven Spring
NI316021109 Frigidaire Oven Screw
NIB316205500 Frigidaire Oven Nut
NI5303324184 Frigidaire Wall Oven Range Screw
NIA316001017 Frigidaire Screw
NIA318167300 Frigidaire Clip
NIAB5303323130 Frigidaire Oven Screw
1139035302 Frigidaire Panel
2808651302 Frigidaire Shield
6ARACK ASSEMBLY, GLIDING, W/HANDLE
65304514983 Frigidaire Oven Rack
7BOX, BAKE ELEMENT
11139036700 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
29316517600 Frigidaire Oven Spacer
37SENSOR
535304503737 Frigidaire Black Meat Temperature Probe
54139017203 Frigidaire Assembly Receptacle
565304520852 Frigidaire Trim
56A5304520850 Frigidaire Trim
575304521752 Frigidaire Shield
58808816501 Frigidaire Insulation
58AINSULATION, OVEN WRAPPER
58B808905101 Frigidaire Insulation
58C807887503 Frigidaire Insulation
59808931403 Frigidaire Vent Box Assembly
59BTUBE, CONNECTOR, CATALYST
59ATUBE, EXTENSION, CATALYST
625304409888 Frigidaire Oven Terminal Block with Hardware
665304521861 Frigidaire Element
675304501015 Frigidaire Oven Element
70139000601 Frigidaire Oven Shield
71808650302 Frigidaire Shield
80139021101 Frigidaire Bracket Assembly
825304522581 Frigidaire Shield
835304520860 Frigidaire Shield
86139026900 Frigidaire Receptacle
87A5304520866 Frigidaire Shield
875304520557 Frigidaire Bracket
88808721601 Frigidaire Rod
895304528925 Frigidaire Motor Assembly
90808109405 Frigidaire Oven Trim
99A808108601 Frigidaire Oven Support
1075304500627 Frigidaire Oven Cover
108808963704 Frigidaire Wall Oven Blower Assembly
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
1125304494446 Frigidaire Oven Switch
125139008504 Frigidaire Oven Motor
130808931801 Frigidaire Seal
143318172904 Frigidaire Bracket
1615304500622 Frigidaire Oven Element
185318531800 Frigidaire Oven Spacer
272139021700 Frigidaire Oven Tube
