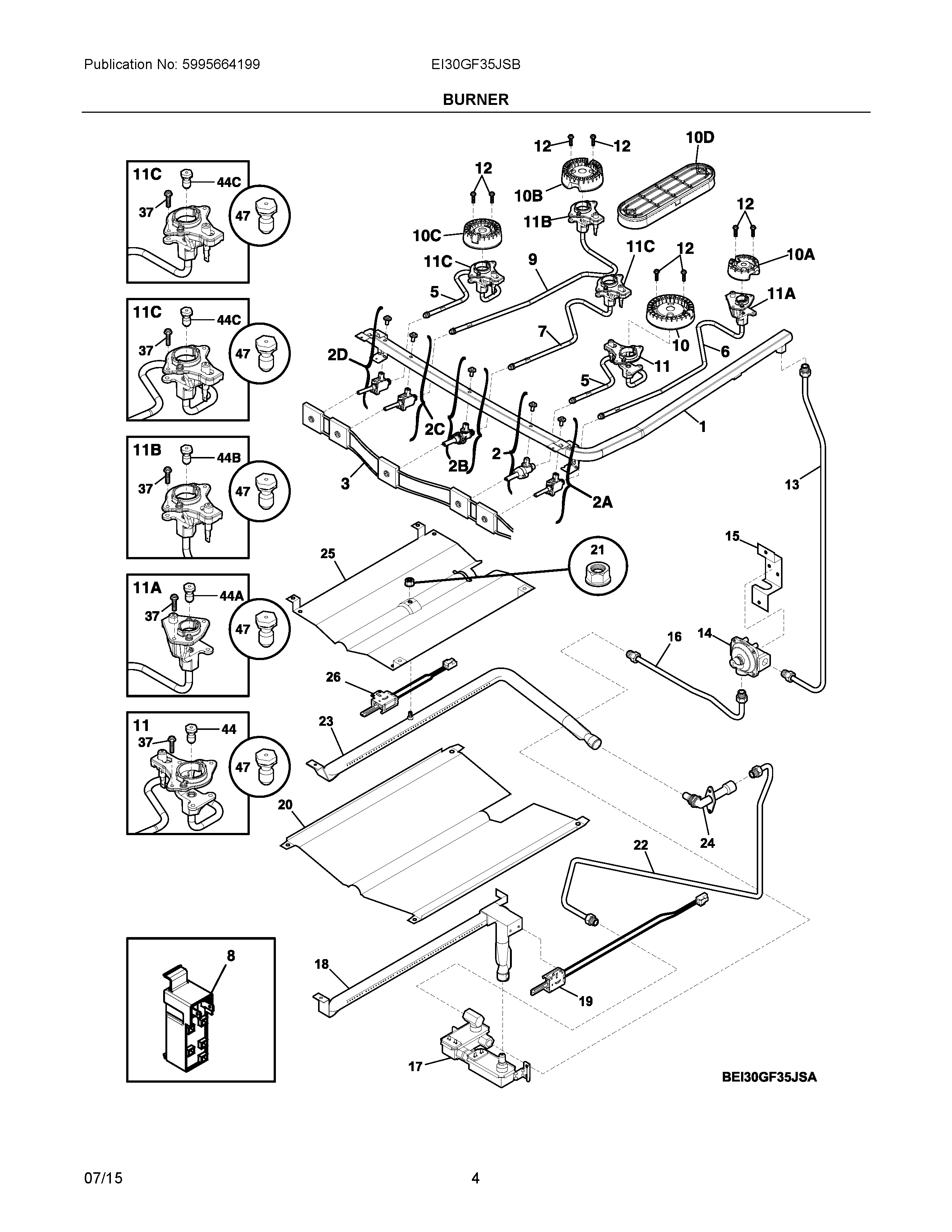

EI30GF35JSB 03 – BURNER

EI30GF35JSB 03 – BURNER

Written by

in

EI30GF35JSB 03 – BURNER

Products

PositionProduct
NI316021104 Frigidaire Oven Screw Assembly
NI316001017 Frigidaire Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI241853202 Frigidaire Refrigerator Screw
NI5304494425 Frigidaire Oven Harness
NIA316498100 Frigidaire Shield
NIA316401500 Frigidaire Oven Cover
NI316021105 Frigidaire Oven Screw
NIWCI 316434900
1WCI 316505200
2C5303935306 Frigidaire Oven Valve
2B5303935309 Frigidaire Top Burner Valve
2D5303935305 Frigidaire Oven Valve
2A5303935308 Frigidaire Oven Valve
2WCI 5303935233
3316580627 Frigidaire Wiring Harness
5WCI 316509300
6WCI 316509200
7WCI 316509400
85304508269 Frigidaire Oven Range Spark Module Kit
9WCI 316526600
10D316559300 Frigidaire Oven Burner
10C316558300 Frigidaire Oven 9.5L Sealed Burner
10A316438200 Frigidaire Range Sealed Burner, 5K
10316438400 Frigidaire Range Sealed Burner, 16/17K
10B316438000 Frigidaire Sealed Burner 12K Assembly
11B316540702 Frigidaire Igniter/Orifice Assembly
11A316540800 Frigidaire Igniter/Orifice Assembly
11C316540700 Frigidaire Igniter/Orifice Assembly
12316540900 Frigidaire Oven Screw
13WCI 316545700
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
165304507348 Frigidaire Oven Tube
17SAFETY VALVE
18316404400 Frigidaire Oven Burner
19BAKE IGNITOR
205304519024 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
225304507768 Frigidaire Oven Tube
23316404302 Frigidaire Oven Burner
245304516894 Frigidaire Oven Elbow
255304497666 Frigidaire Oven Baffle
265304506545 Frigidaire Gas Oven Range Igniter
37316240600 Frigidaire Igniter Mounting Screw
44B316527502 Frigidaire Oven Orifice
44316543200 Frigidaire Igniter/Orifice Assembly
44A316527504 Frigidaire Oven Orifice
44C316527500 Frigidaire Oven Burner Orifice
47GRLP4 Frigidaire Oven LP Conversion Kit
