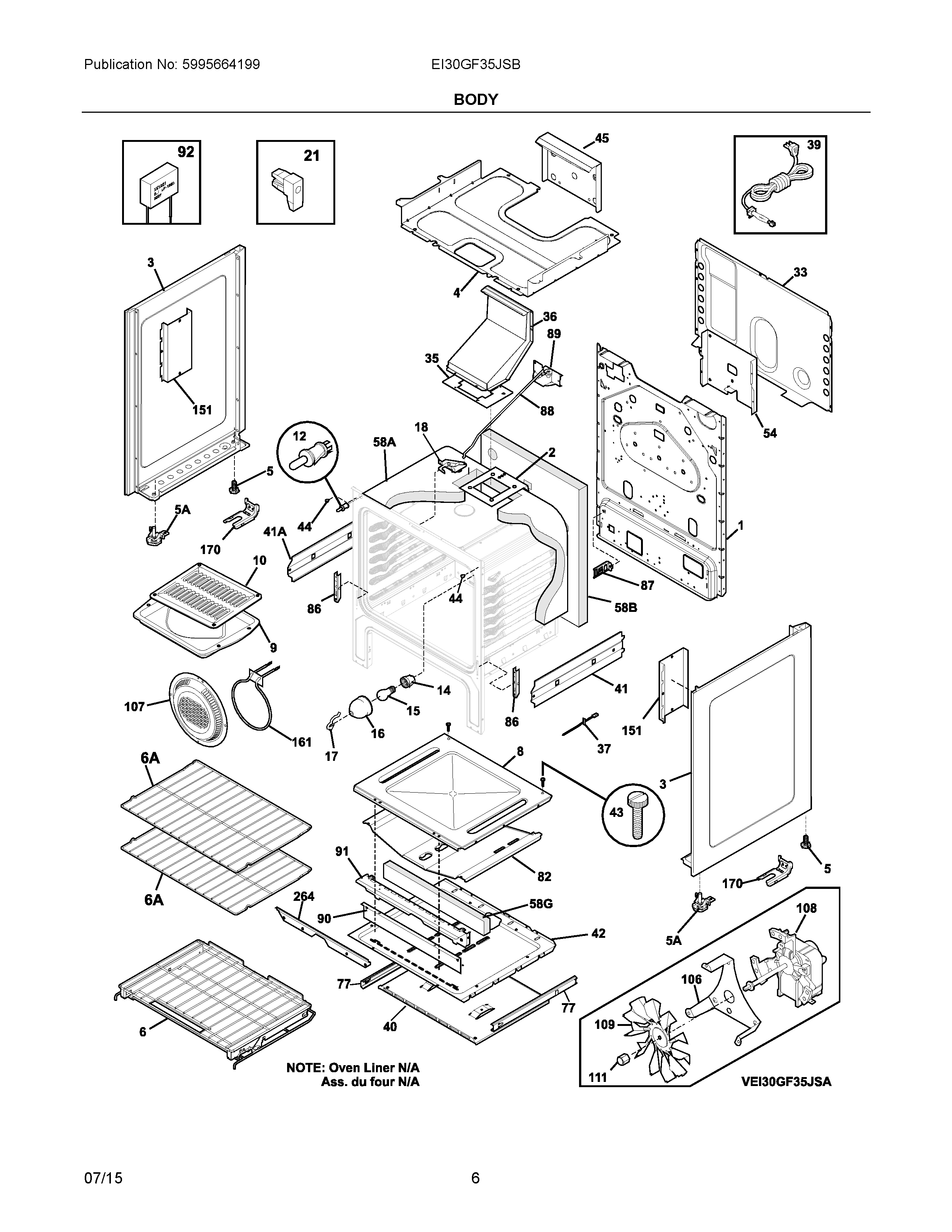

EI30GF35JSB 04 – BODY

EI30GF35JSB 04 – BODY

Written by

in

EI30GF35JSB 04 – BODY

Products

Position	Product
NIB	316116000 Frigidaire Screw
NI	316539800 Frigidaire Oven Retainer
NIA	316432800 Frigidaire Clip
NI	316418901 Frigidaire Oven Screw
NI	316418900 Frigidaire Oven Screw
NI	316279600 Frigidaire Screw
NI	316001017 Frigidaire Screw
NIA	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NI	WCI 316580345
NI	WCI 316580512
NI	Screw,cup pt ,8-18 x 0.375 ,chrome
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316021132 Frigidaire Screw
NI	5303285179 Frigidaire Oven Door Screw
NI	316021105 Frigidaire Oven Screw
1	BACK, MAIN
2	WCI 316525800
3A	316400145 Frigidaire Panel Assembly
3	316400144 Frigidaire Panel
4	BOX, BURNER
5A	5304509869 Frigidaire Oven Leveling Leg Assembly
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
6A	316496201 Frigidaire Oven Rack
6	316571800 Frigidaire Rack Assembly
8	316400603 Frigidaire Oven Stove Bottom Panel
9	316081901 Frigidaire Oven Baking Pan
10	316082001 Frigidaire Oven Insert
12	316445500 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	316087500 Frigidaire Oven Retainer
18	316405800 Frigidaire Assembly Latch
21	316408000 Frigidaire Oven Clip Assembly
33	316402500 Frigidaire Oven Shield
35	316542102 Frigidaire Flue Gasket
36	WCI 316507901
37	316490000 Frigidaire Oven Range Temperature Sensor
39	5304515659 Frigidaire Oven Power Cord
40	WCI 316409600
41	WCI 316409200
41A	WCI 316409201
42	316400700 Frigidaire Shield
43	316282700 Frigidaire Oven Screw
44	316517600 Frigidaire Oven Spacer
45	WCI 316508501
54	WCI 316404200
58G	08067973 Frigidaire 0 Insulation
58A	316403700 Frigidaire Insulation
58B	WCI 316403601
77	316456700 Frigidaire Oven Glide Assembly
82	316400801 Frigidaire Oven Shield
86	316441300 Frigidaire Receptacle
87	316401202 Frigidaire Bracket
88	316232702 Frigidaire Rod
89	MOTOR
90	WCI 316401100
91	WCI 316401000
92	WCI 316539900
106	316404100 Frigidaire Oven Bracket
107	WCI 316026702
108	316256900 Frigidaire Oven Fan Motor
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
151	316404601 Frigidaire Oven Shield
161	316211603 Frigidaire Oven Element
264	316404700 Frigidaire Bracket
