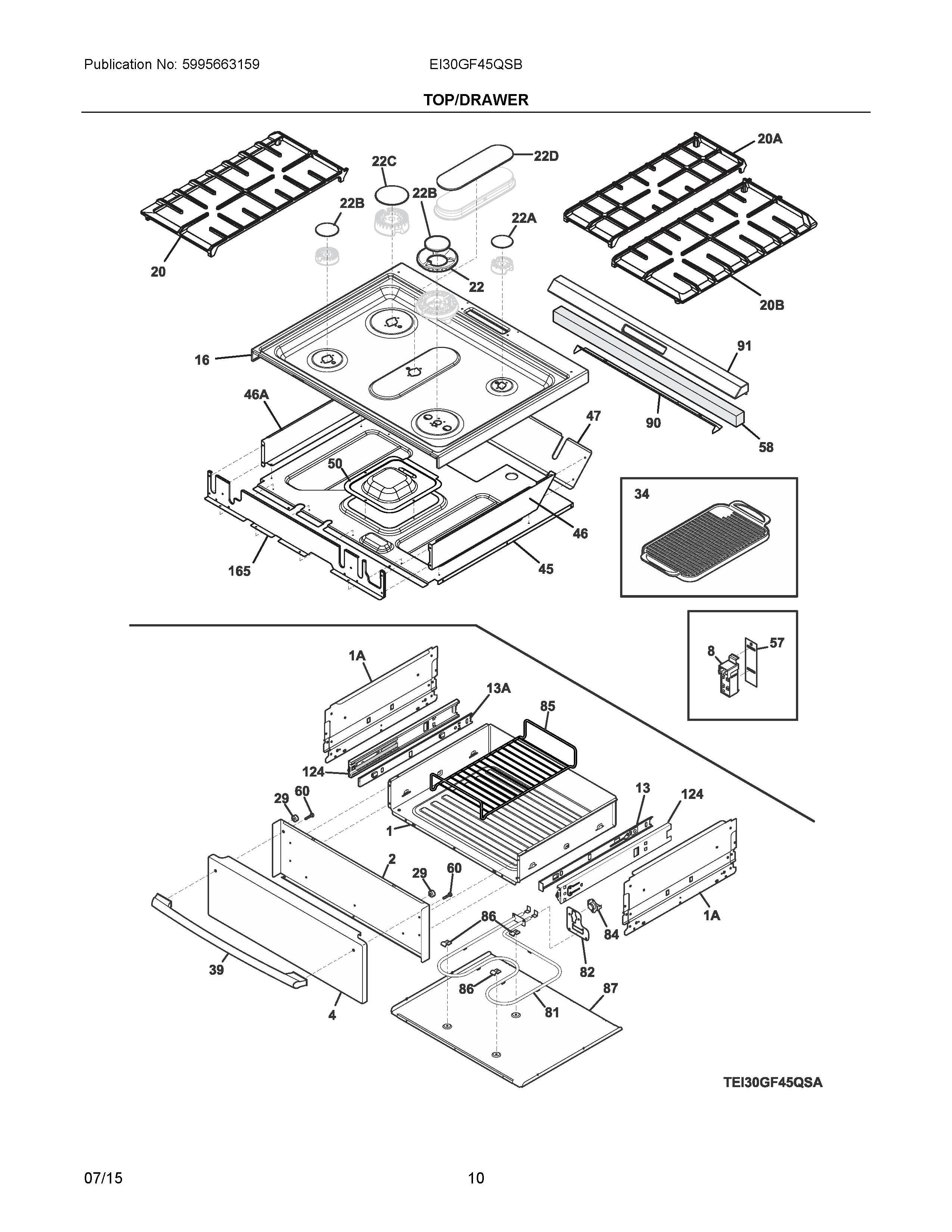

EI30GF45QSB 05 – TOP/DRAWER

EI30GF45QSB 05 – TOP/DRAWER

Written by

in

EI30GF45QSB 05 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIWCI 318163602
NI316021109 Frigidaire Oven Screw
NIAWCI 318591200
NIHARNESS, WIRING, WARMER DRAWER
1DRAWER, BODY ASSEMBLY
1A318300003 Frigidaire Oven Panel
2WCI 318303907
4318298828 Frigidaire Oven Panel
85304508269 Frigidaire Oven Range Spark Module Kit
13AWCI 318259508
13WCI 318259509
16809020401 Frigidaire Oven Main Top
20GRATE, BURNER, LH SIDE
20A5304499692 Frigidaire Oven Grate
20BGRATE, BURNER, RH SIDE
225304520332 Frigidaire Oven Cap
22B5304508442 Frigidaire Oven Surface Burner Cap
22D316559604 Frigidaire Oven Cap
22ACAP
22C5304508443 Frigidaire Oven Surface Burner Cap
29318147430 Frigidaire Oven Bumper
345304495353 Frigidaire Oven Griddle
39316380802 Frigidaire Oven Handle
45PANEL, BURNER BOX, BOTTOM
46PANEL, UPPER SIDE, RH
46APANEL, UPPER SIDE, LH
47PANEL, BURNER BOX, REAR
50PANEL, SERVICE, FAN
57318295611 Frigidaire Panel
58INSULATION, VENT COVER
605303311174 Frigidaire Oven Screw
81318255301 Frigidaire Oven Element
82WCI 318304500
84318005108 Frigidaire Thermostat
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87318300102 Frigidaire Oven Panel
90DEFLECTOR, TOP, BLACK
91TRIM, VENT, STAINLESS, REAR
124316105501 Frigidaire P-1 Glide
165PANEL, BURNER BOX, FRONT
