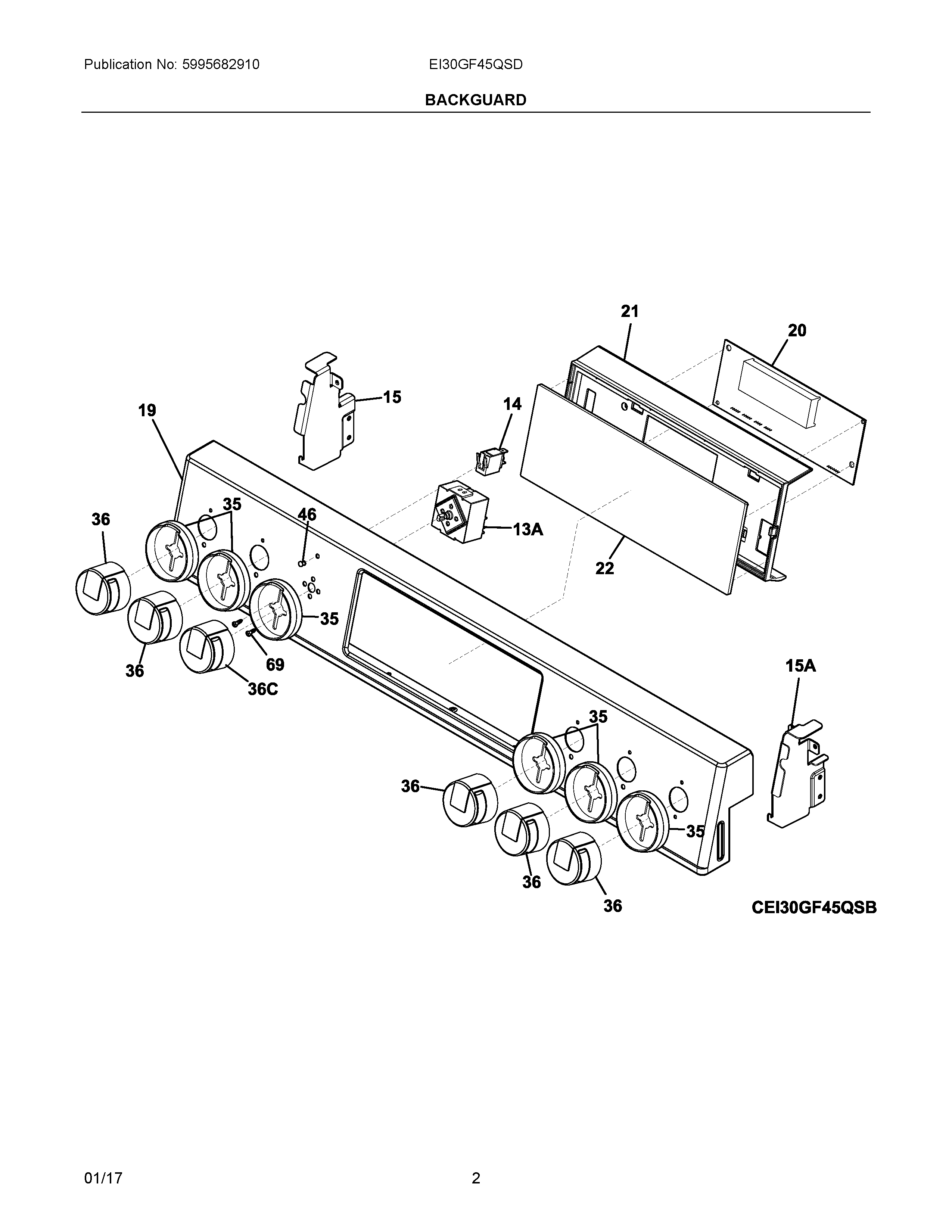

EI30GF45QSD 02 – BACKGUARD

EI30GF45QSD 02 – BACKGUARD

Written by

in

EI30GF45QSD 02 – BACKGUARD

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIAA5304497165 Frigidaire Harness
NIASCREW, 10-32 X 1/4"
NI316021109 Frigidaire Oven Screw
NIA5304453707 Frigidaire Oven Screw
13A5304508926 Frigidaire Oven Temperature Control Switch
14316022507 Frigidaire Light/Lamp
15AWCI 809124401
15809124402 Frigidaire Bracket Assembly
19CONTROL PANEL, STAINLESS
20316474924 Frigidaire Controller
21809127301 Frigidaire Assembly Bracket
22808770702 Frigidaire Control Panel
35BEZEL, KNOB
36C316535716 Frigidaire Knob
36KNOB, TOP VALVE, STAINLESS
46316557300 Frigidaire Range Indicator Light Lens
695304462994 Frigidaire Oven Screw
