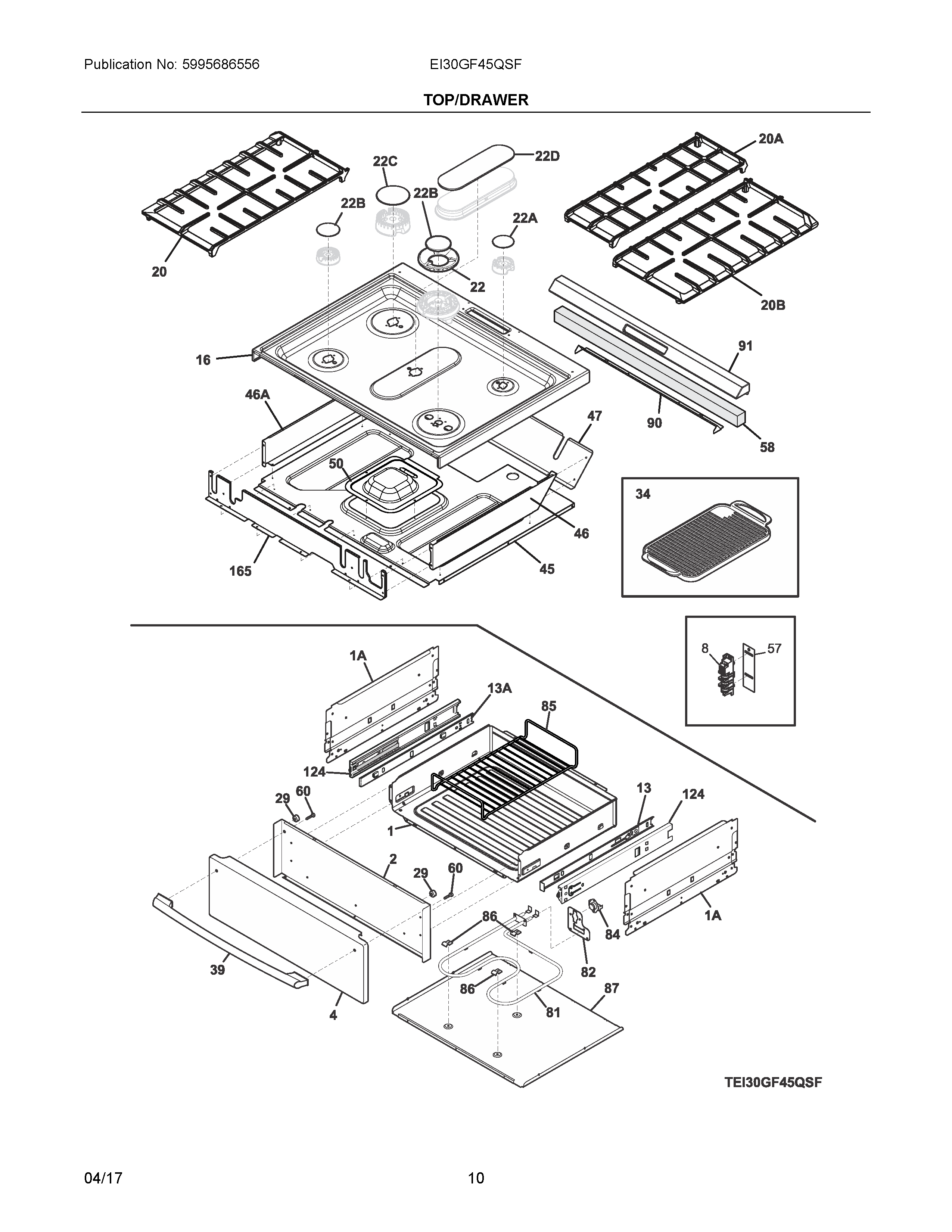

EI30GF45QSF 05 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	HARNESS, WIRING, WARMER DRAWER
NIA	WCI 318591200
NI	316021109 Frigidaire Oven Screw
NIA	5304505563 Frigidaire Oven Wire
NI	WCI 318163602
1	DRAWER, BODY ASSEMBLY
1A	318300003 Frigidaire Oven Panel
2	WCI 318303907
4	318298828 Frigidaire Oven Panel
8	SPARK MODULE
13A	318259512 Frigidaire Oven Glide
13	318259513 Frigidaire Oven Glide
16	809020401 Frigidaire Oven Main Top
20A	5304499692 Frigidaire Oven Grate
20B	GRATE, BURNER, RH SIDE
20	GRATE, BURNER, LH SIDE
22B	5304508442 Frigidaire Oven Surface Burner Cap
22	5304520332 Frigidaire Oven Cap
22A	CAP
22D	316559604 Frigidaire Oven Cap
22C	5304508443 Frigidaire Oven Surface Burner Cap
29	318147430 Frigidaire Oven Bumper
34	5304495353 Frigidaire Oven Griddle
39	316380802 Frigidaire Oven Handle
45	PANEL, BURNER BOX, BOTTOM
46	PANEL, UPPER SIDE, RH
46A	PANEL, UPPER SIDE, LH
47	PANEL, BURNER BOX, REAR
50	PANEL, SERVICE, FAN
57	318295611 Frigidaire Panel
58	INSULATION, VENT COVER
60	5303311174 Frigidaire Oven Screw
81	318255301 Frigidaire Oven Element
82	WCI 318304500
84	318005108 Frigidaire Thermostat
85	807328301 Frigidaire Oven Rack
86	316095800 Frigidaire Oven Clip
87	318300102 Frigidaire Oven Panel
90	DEFLECTOR, TOP, BLACK
91	TRIM, VENT, STAINLESS, REAR
124	316105501 Frigidaire P-1 Glide
165	PANEL, BURNER BOX, FRONT
