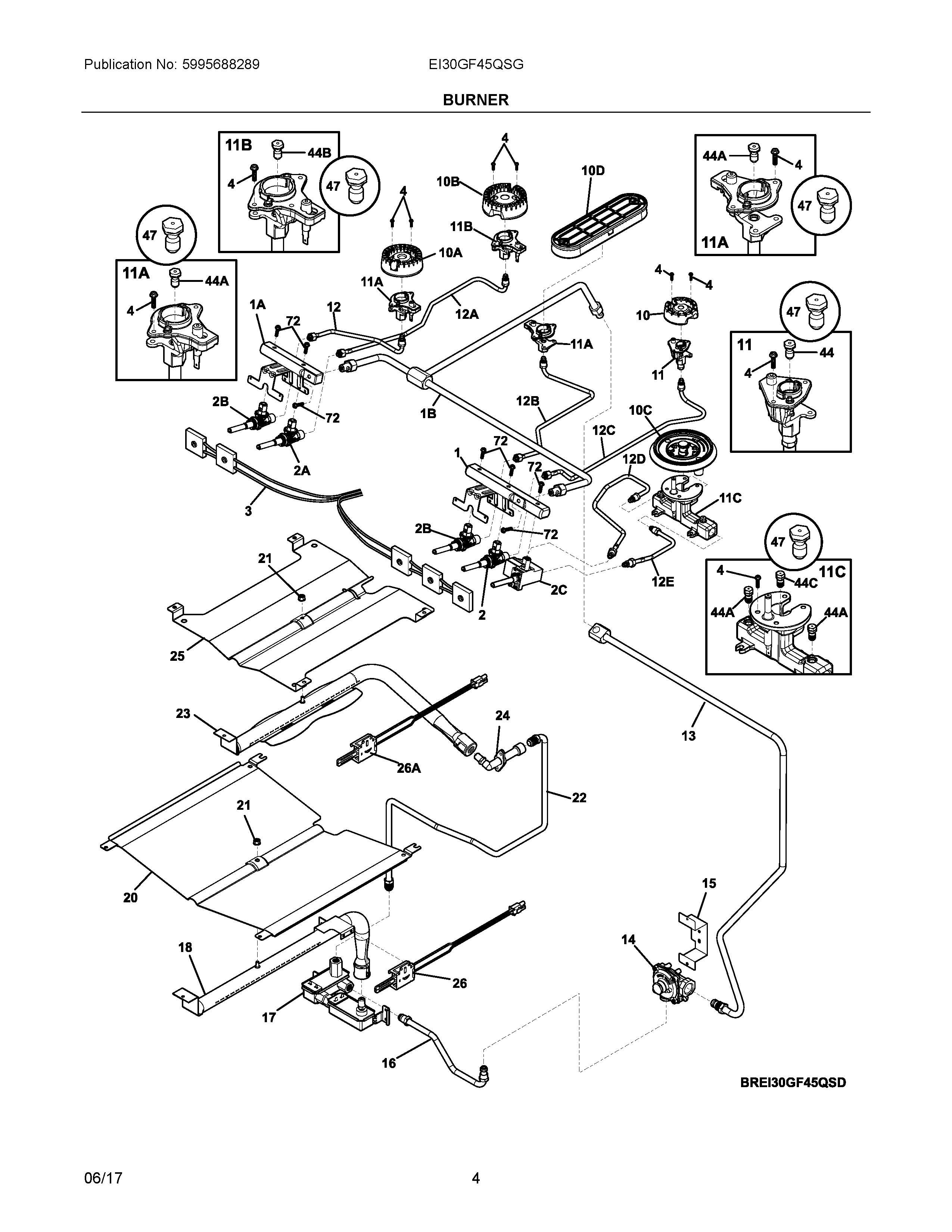

EI30GF45QSG 03 – BURNER

Products

PositionProduct
NI316418901 Frigidaire Oven Screw
NI5304497167 Frigidaire Oven Harness
NI808041201 Frigidaire Oven Harness
NI316566901 Frigidaire Oven Sleeve
NI316021109 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
NI316260800 Frigidaire Screw-SHOULDER
1AMANIFOLD, PIPE, LH
1MANIFOLD, PIPE, RH
1B809125501 Frigidaire Oven Tubing
2CVALVE, TOP BURNER, DUAL
2B5304506551 Frigidaire Oven Valve
25304506549 Frigidaire Oven Valve
2A5304506550 Frigidaire Oven Range Gas Valve (White)
35304509917 Frigidaire Range Harness Assembly
4316240600 Frigidaire Igniter Mounting Screw
10A316558300 Frigidaire Oven 9.5L Sealed Burner
10C5304501023 Frigidaire Burner Assembly
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
10D316559300 Frigidaire Oven Burner
11A316540700 Frigidaire Igniter/Orifice Assembly
11B316543204 Frigidaire Igniter/Orifice Assembly
11316540800 Frigidaire Igniter/Orifice Assembly
11C316440100 Frigidaire Igniter and Orifice Assembly
12809126001 Frigidaire Tube
12E809125901 Frigidaire Tube
12D809126301 Frigidaire Tube
12CTUBE, BURNER, RH REAR
12B809125801 Frigidaire Tube
12A809125701 Frigidaire Tube
13TUBE, SUPPLY, MANIFOLD
14316091711 Frigidaire Regulator Assembly
15318262810 Frigidaire Oven Bracket
16WCI 318289500
17SAFETY VALVE
185304502520 Frigidaire Oven Burner
20139005100 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
22139009500 Frigidaire Tube
23139007101 Frigidaire Burner
24WCI 316409703
25WCI 316401301
26A139013701 Frigidaire Igniter
26139013700 Frigidaire Igniter
44316527504 Frigidaire Oven Orifice
44B316527511 Frigidaire Oven Orifice
44C316527514 Frigidaire Oven Orifice Assembly
44A316527500 Frigidaire Oven Burner Orifice
47GRLP4 Frigidaire Oven LP Conversion Kit
72316215600 Frigidaire Oven Screw
