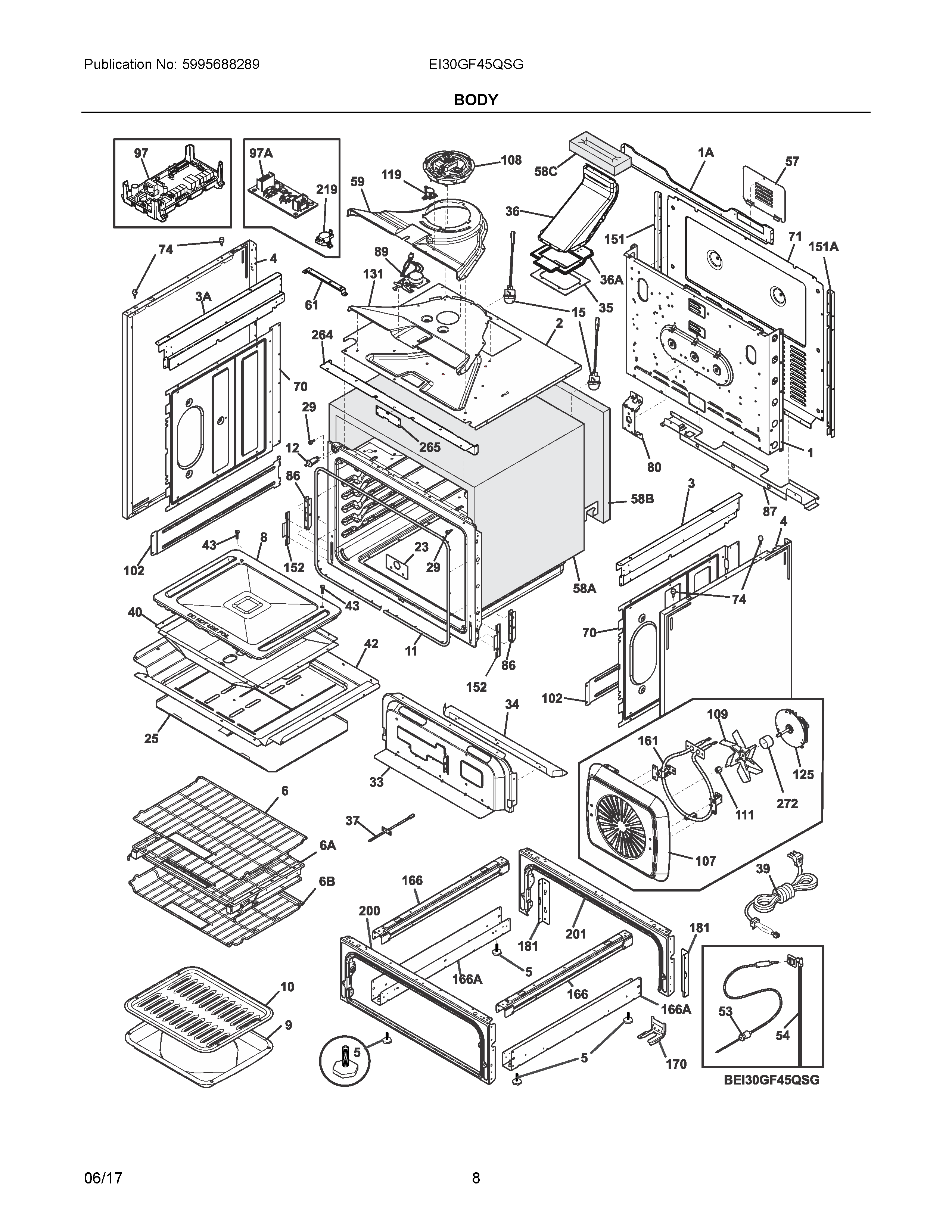

EI30GF45QSG 04 – BODY

EI30GF45QSG 04 – BODY

Written by

in

EI30GF45QSG 04 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NICAWCI 5304497194
NIA807597603 Frigidaire Oven Screw
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NIA316001017 Frigidaire Screw
NI808041201 Frigidaire Oven Harness
NIA316116000 Frigidaire Screw
NIA316418900 Frigidaire Oven Screw
NI5303289910 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI5304509911 Frigidaire Harness
NIHANESS, WIRING, COMMUNICATION, LOW VOLTAGE
1A809128101 Frigidaire Panel Assembly
1139017306 Frigidaire Oven Panel
2139078202 Frigidaire Shield
3809128202 Frigidaire Panel
3AWCI 809128201
4807226106 Frigidaire Range Black Side Body Panel
5318175503 Frigidaire Screw with Bolt
6ARACK ASSEMBLY, GLIDING, W/HANDLE
65304514983 Frigidaire Oven Rack
6B139012400 Frigidaire Oven Rack
8139005002 Frigidaire Oven Panel
9316081901 Frigidaire Oven Baking Pan
10316082001 Frigidaire Oven Insert
11807545502 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
23139004500 Frigidaire Cover
25318291900 Frigidaire Bracket Assembly
29316517601 Frigidaire Bumper
33WCI 318287800
34318289402 Frigidaire Panel
35318291300 Frigidaire Oven Seal
36A139008301 Frigidaire Support
36FLUEBOX, ASSEMBLY
37SENSOR
395304534000 Frigidaire Cord
40139004700 Frigidaire Oven Box
42139004800 Frigidaire Oven Shield
43316282700 Frigidaire Oven Screw
535304503737 Frigidaire Black Meat Temperature Probe
54139017203 Frigidaire Assembly Receptacle
57316283600 Frigidaire Oven Cover
58CINSULATION, FLUE
58BWCI 139020202
58AINSULATION, OVEN WRAPPER
59139078002 Frigidaire Oven Duct
61WCI 5304497190
70139000601 Frigidaire Oven Shield
71809123201 Frigidaire Oven Shield
74WCI 318141910
77316247900 Frigidaire Oven Spacer
80139021101 Frigidaire Bracket Assembly
86318561100 Frigidaire Receptacle
87WCI 318260624
895304528836 Frigidaire Motor
97A5304509920 Frigidaire Circuit Board
97316472803 Frigidaire Range Circuit Board Assembly
102139004100 Frigidaire PANEL
107139013902 Frigidaire Oven Cover Assembly
108318575612 Frigidaire Oven Cooling Fan Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119807144901 Frigidaire Thermostat
125139008601 Frigidaire Oven Motor
131139078102 Frigidaire Oven Duct
151809124101 Frigidaire Bracket
151AWCI 809124102
152WCI 318338520
161139013800 Frigidaire Oven Element
166A5304511884 Frigidaire Oven Bracket
166318298410 Frigidaire Oven Bracket
1705304486410 Frigidaire Oven Kit
181809201001 Frigidaire Bracket
200WCI 318298232
201318298233 Frigidaire Oven Frame
219318003400 Frigidaire Thermostat
264WCI 807057104
265WCI 807050701
272139021700 Frigidaire Oven Tube
