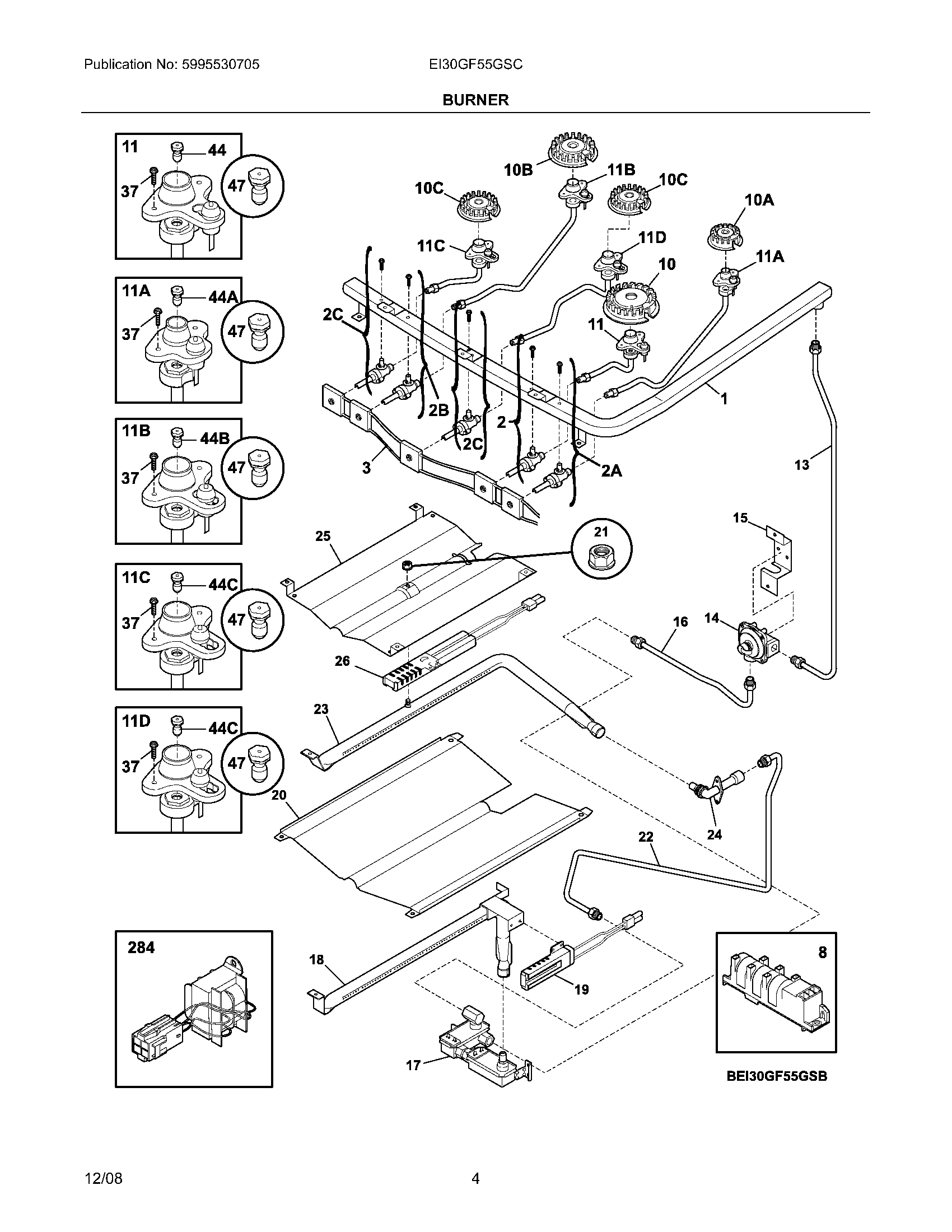

EI30GF55GSC 05 – BURNER

Products

Position	Product
NI	316215600 Frigidaire Oven Screw
NI	316001017 Frigidaire Screw
NI	WCI 7316064103
NI	WCI 7316434900
NI	316021132 Frigidaire Screw
NI	WCI 7316526900
NI	WCI 7316536300
NI	316021109 Frigidaire Oven Screw
NI	316401500 Frigidaire Oven Cover
NI	316089500 Frigidaire Oven Screw
NI	5303271648 Frigidaire Oven Screw
1	WCI 316505200
2	WCI 316520703
2A	WCI 316520705
2B	WCI 316520708
2C	WCI 316520706
3	WCI 7316518200
8	SPARK MODULE
10A	WCI 7316206400
10C	316212400 Frigidaire Oven Primary Burner
10B	WCI 7316223400
11B	316430400 Frigidaire Igniter/Orifice Assembly
11D	316430700 Frigidaire Igniter/Orifice Assembly
11C	316237805 Frigidaire Orifice Assembly Igniter
11A	316430801 Frigidaire Igniter and Orifice Assembly
13	WCI 7316405300
14	5304521339 Frigidaire Regulator
15	316091600 Frigidaire Oven Bracket
16	5304507348 Frigidaire Oven Tube
17	316404901 Frigidaire Oven Valve
18	316404400 Frigidaire Oven Burner
19	5304534663 Frigidaire Igniter
20	5304519024 Frigidaire Oven Baffle
21	5303013272 Frigidaire Oven Nut
22	5304507768 Frigidaire Oven Tube
23	WCI 7316404300
24	5304516894 Frigidaire Oven Elbow
25	WCI 7316401301
26	316489401 Frigidaire Igniter Assembly
37	316240600 Frigidaire Igniter Mounting Screw
44A	WCI 7316237903
44	WCI 7316237912
44C	316237902 Frigidaire Orifice Top Burner
44B	316237900 Frigidaire Oven Orifice Assembly
47	316243716 Frigidaire Lp Conversion Kit
284	316536100 Frigidaire Transformer
