EI30GF55GWC 09 – TOP/DRAWER – Aparts

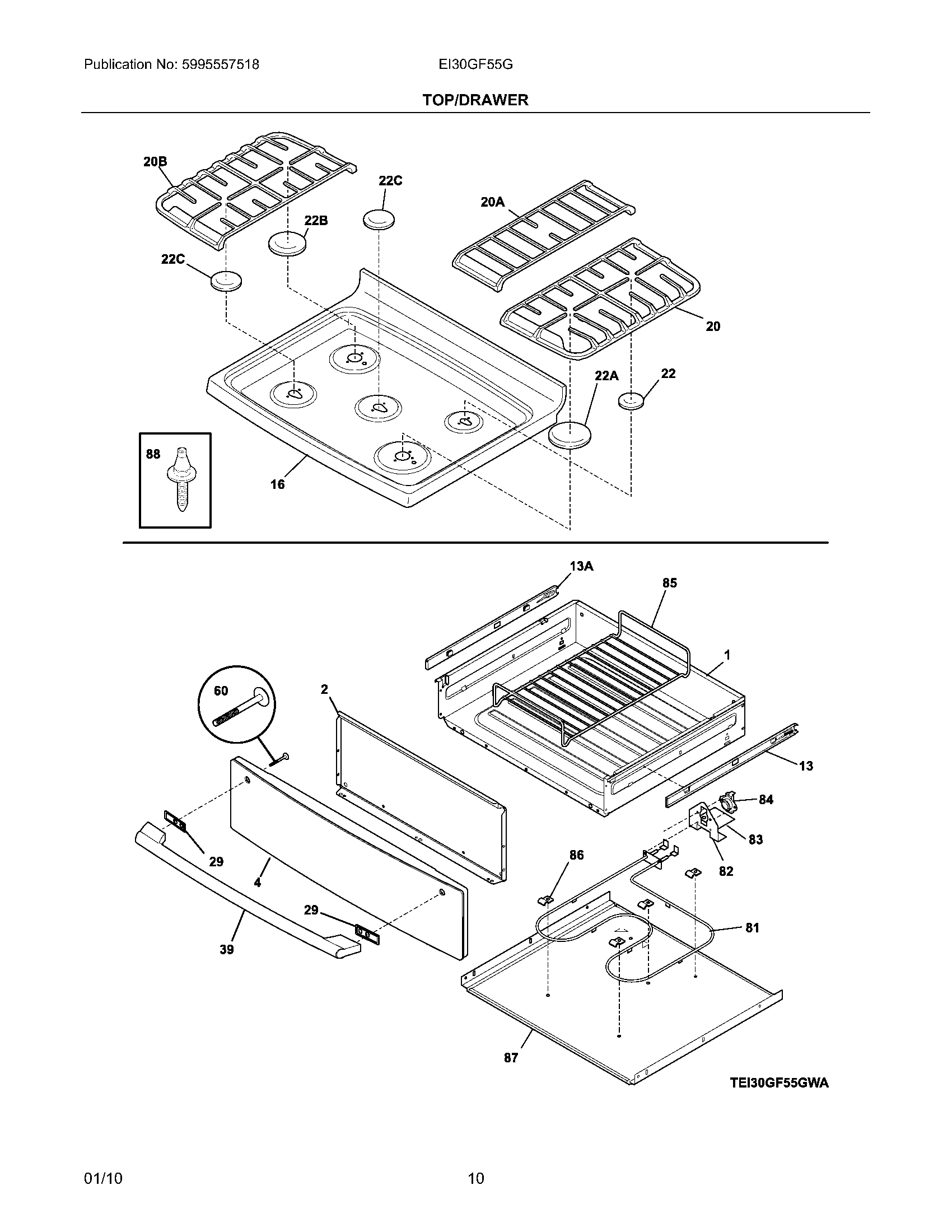

EI30GF55GWC 09 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	5304516184 Frigidaire Harness
NI	316008401 Frigidaire Washer P-1
1	WCI 316408902
2	WCI 316502901
4	WCI 316517103
13A	316415001 Frigidaire Oven Glide
13	316415000 Frigidaire Oven Glide
16	WCI 316506825
20	316537800 Frigidaire Oven Grate
20A	316537900 Frigidaire Oven Grate
20B	316538000 Frigidaire Oven Grate
22B	WCI 316438704
22C	Cap,9.5K burner ,black ,medium ,(2)
22A	5304508468 Frigidaire Oven Cap
22	CAP
29	WCI 316505402
39	WCI 241761003
60	5304507924 Frigidaire Oven Screw
81	316437300 Frigidaire Oven Element
82	316093200 Frigidaire Bracket
83	WCI 316093300
84	316093502 Frigidaire Thermo Disc
85	807328301 Frigidaire Oven Rack
86	316095800 Frigidaire Oven Clip
87	WCI 316091900
88	316099500 Frigidaire Oven Pin
