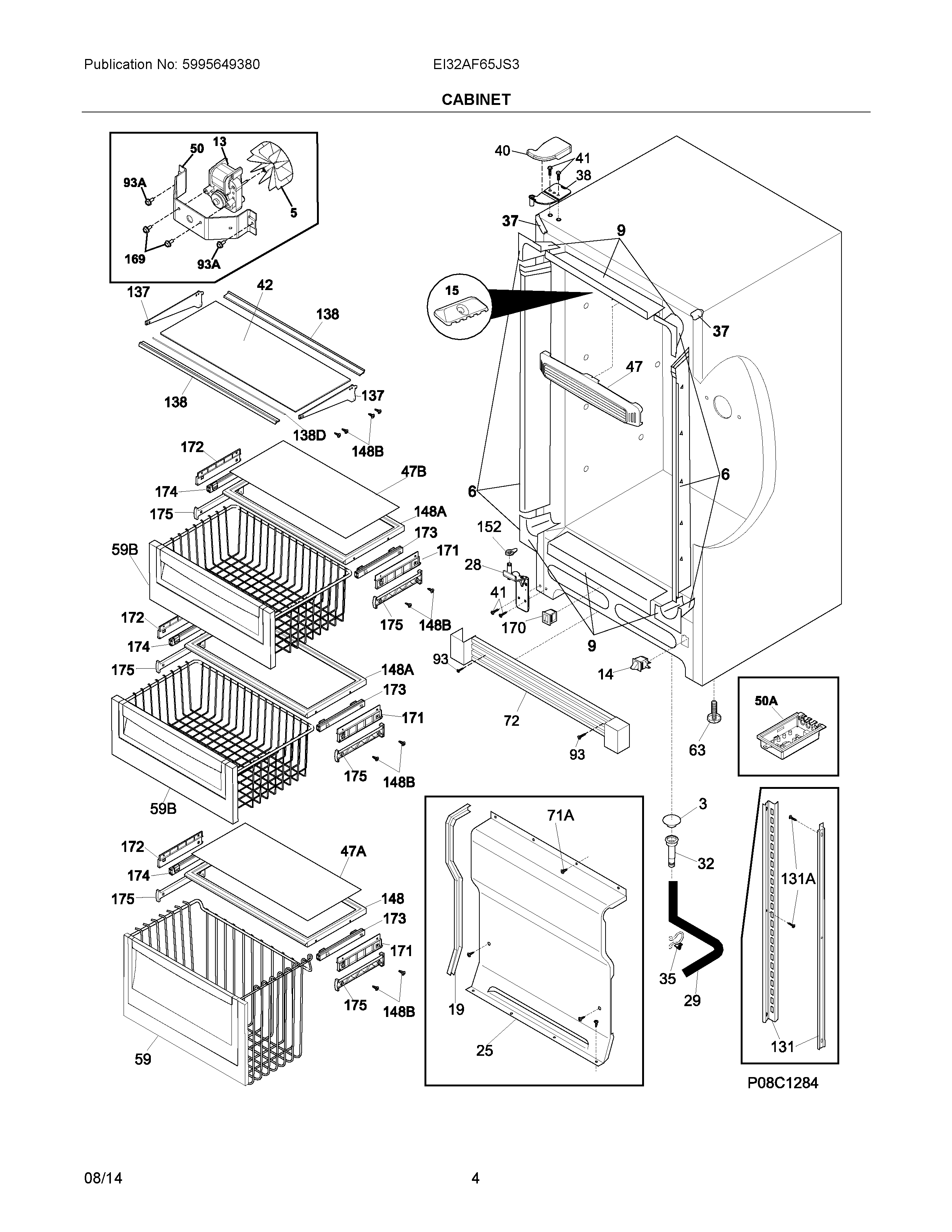

EI32AF65JS3 03 – CABINET

EI32AF65JS3 03 – CABINET

Written by

in

EI32AF65JS3 03 – CABINET

Products

PositionProduct
NIWCI 297305500
NIWCI 297330101
NI297001704 Frigidaire Refrigerator Insulation
NIABracket,LH leg levelor
NIBBracket,RH leg levelor
NIA241852501 Frigidaire Refrigerator Clip
NITRIM KIT, BUILT IN, DUAL, COMPLETE, TRIMKITSS2
NITRIM KIT, BUILT IN, SINGLE, COMPLETE, TRIMKITSS1
NIWCI 5303313703
3216503100 Frigidaire Refrigerator Screen-Drain
5FAN BLADE, EVAPORATOR
6297200900 Frigidaire Refrigerator Breaker Kit W/Corne
9297200100 Frigidaire Refrigerator W/Corner Breaker Kit
13EVAP FAN MOTOR – 115V
14216822900 Frigidaire Refrigerator Switch
15WCI 241891103
19216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
25COVER-EVAPORATOR
285303018741 Frigidaire Refrigerator Freezer Hinge Kit
295304512272 Frigidaire Hose Drain
325304511843 Frigidaire Refrigerator Sleeve
35216273000 Frigidaire Refrigerator Strap
37297273906 Frigidaire Refrigerator Corner Trim Cabinet
38HINGE-UPPER, LH
40COVER-HINGE, GRAY, LH
41240578902 Frigidaire Screw Mounting Hinge
42SHELF-GLASS
47A297291300 Frigidaire Refrigerator Glass
47297192903 Frigidaire Refrigerator Baffle
47B297291301 Frigidaire Refrigerator Glass
50ABOARD-LED POWER
50WCI 08013207
59BBASKET, ASSY-MID LEVEL
59BASKET, ASSY, TALL
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71AScrew,8-18AB x.470 QX
725304510562 Frigidaire Refrigerator Kickplate Grille
93216858001 Frigidaire Refrigerator Screw
93A241853202 Frigidaire Refrigerator Screw
131CHANNEL-SHELF MTG, SIDE, (2)
131ASCREW, TH, 8-18X.470 AB QX, WHITE, (6)
137297296511 Frigidaire Refrigerator Bracket-Shelf
138TRIM-SHELF
138D297350900 Frigidaire Refrigerator Gasket
148AFRAME, BASKET, MID-LEVEL
148B297142600 Frigidaire Refrigerator/Freezer Screw
148FRAME, BASKET-COVER, TALL
152BEARING-HINGE
169216912401 Frigidaire Refrigerator Screw
170297280403 Frigidaire Refrigerator Valve
171297092700 Frigidaire Refrigerator Bracket
172297092701 Frigidaire Refrigerator Bracket
1735304517648 Frigidaire Refrigerator Basket-Slide
1745304517649 Frigidaire Refrigerator Basket-Slide
175297099500 Frigidaire Refrigerator Support
