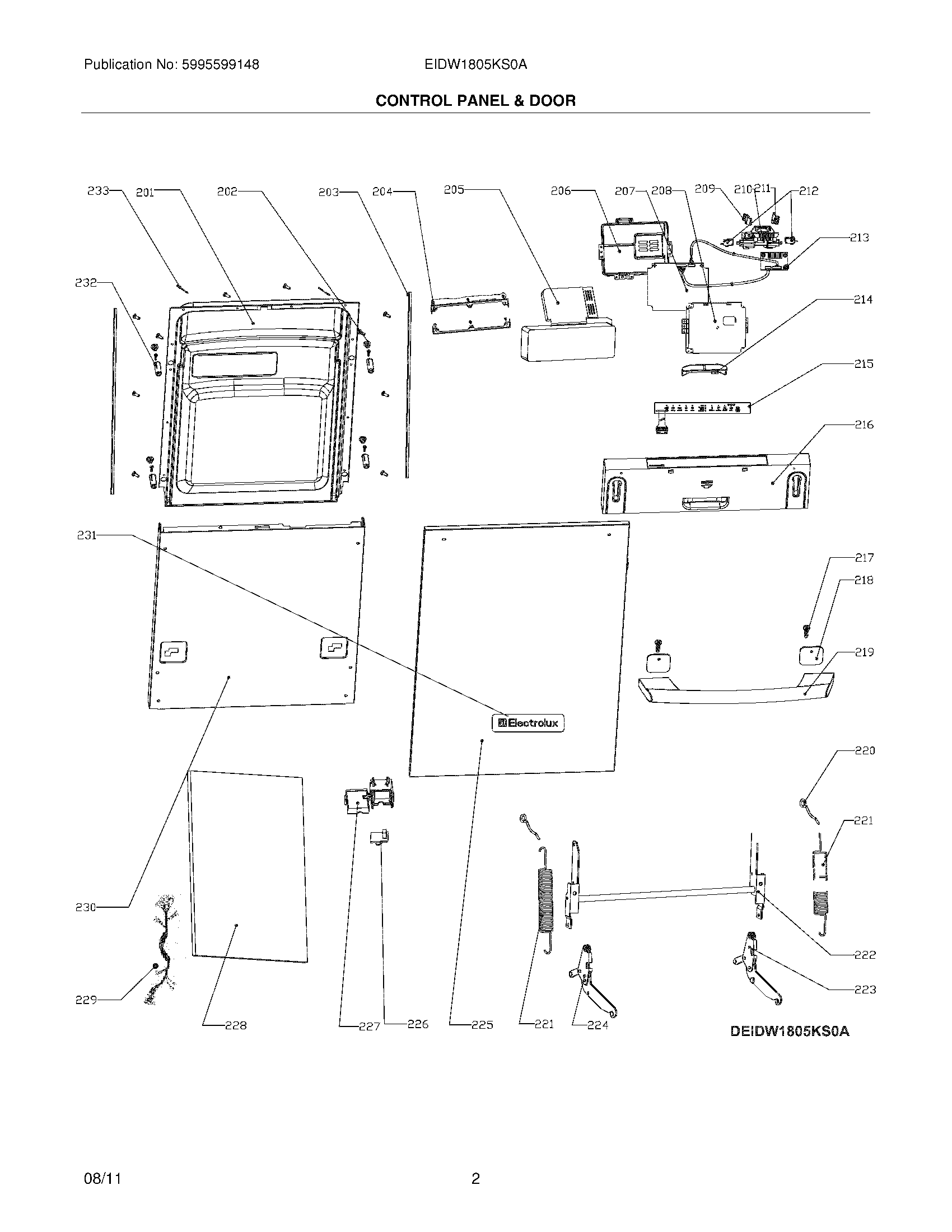

EIDW1805KS0A 03 – CONTROL PANEL & DOOR

EIDW1805KS0A 03 – CONTROL PANEL & DOOR

Written by

in

EIDW1805KS0A 03 – CONTROL PANEL & DOOR

Products

PositionProduct
NIENERGY GUIDE LABEL
201WCI 5304483637
202WCI 5304483638
203WCI 5304482448
204BRACKET, DISPENSER MTG., (2)
2055304509278 Frigidaire Dishwasher Dispenser
206COVER, CONTROL BOARD
207WCI 5304483640
208WCI 5304483466
209WCI 5304483464
2105304535183 Frigidaire Door Latch
211WCI 5304483465
2125304483463 Frigidaire Dishwasher Switch
213WCI 5304483461
214COVER, CONSOLE
215MEMBRANE, TOUCH CONTROL, ASSEMBLY
216WCI 5304483643
217WCI 5304483644
2185304513820 Frigidaire Plate Assembly
219HANDLE ASSEMBLY, DOOR
220BOLT, DOOR SPRING, (2)
221WCI 5304483475
222HINGE ASSEMBLY, DOOR
223WCI 5304482484
224WCI 5304482483
225DOOR ASSEMBLY, OUTER
226INDICATOR, LED
227COVER, LED INDICATOR
228INSULATION, DOOR, FOAM
229WCI 5304483651
230FRAME, DOOR, INNER
231241873301 Frigidaire Refrigerator Nameplate
232COVER, SCREW, (4)
233WCI 5304483655
