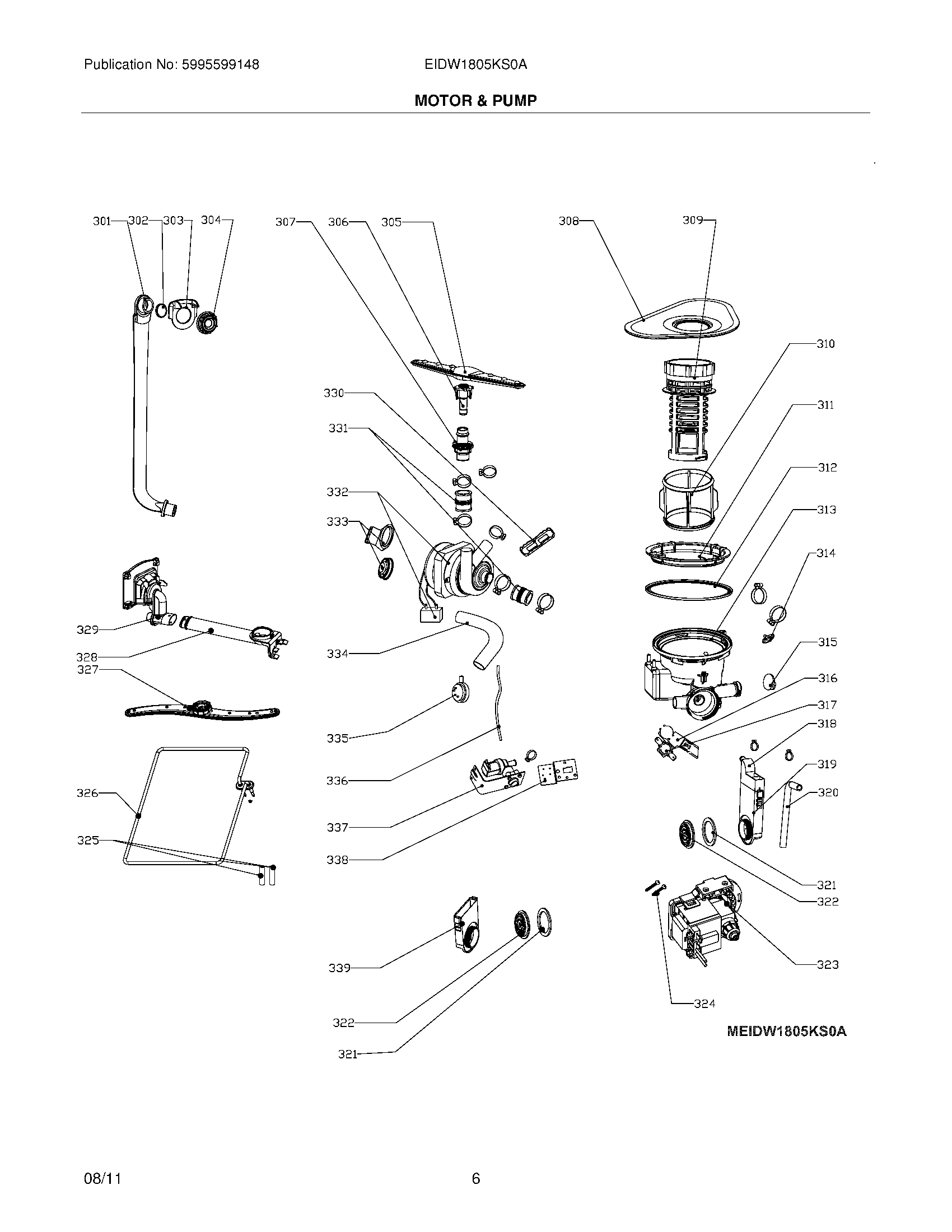

EIDW1805KS0A 07 – MOTOR & PUMP

EIDW1805KS0A 07 – MOTOR & PUMP

Written by

in

EIDW1805KS0A 07 – MOTOR & PUMP

Products

PositionProduct
301WCI 5304483437
302O RING, DELIVERY TUBE, (2)
303CASING, GUIDE, DELIVERY TUBE
304NUT, PIPE, DELIVERY TUBE
305WCI 5304483450
306WCI 5304483451
307CONNECTOR ASSEMBLY, SPRAY ARM, LOWER
308FILTER ASSEMBLY, SCREEN, STAINLESS
309FILTER ASSEMBLY
310FILTER ASSEMBLY, MICRO
311NUT, SUMP MTG.
312WCI 5304482467
313WCI 5304483442
3145304483441 Frigidaire Dishwasher Thermistor
3155304482469 Frigidaire Dishwasher Flapper
316BRACKET, THERMOSTAT
317THERMOSTAT, 90
318COVER, WATER TUNNEL
319TUNNEL, WATER
320HOSE, INLET, TUNNEL
321GASKET, RING NUT
322RING NUT
3235304483444 Frigidaire Dishwasher Pump
324WCI 5304482501
325CASING, HAETING ELEMENT, (2)
326ELEMENT ASSEMBLY, HEATING
327SPRAY ARM ASSEMBLY, UPPER
328FILL TUBE, SPRAY ARM, UPPER
3295304483661 Frigidaire Dishwasher DISPENSING Assembly
330WCI 5304483662
331DUCT, CONNECTING, (2)
332WCI 5304483454
333SUPPORT ASSEMBLY, MOTOR, W/PAD
334DUCT, CONNECTING, EXTERNAL PIPE
335SWITCH-PRESSURE, #32
336HOSE, PRESSURE SWITCH
3375304482406 Frigidaire Dishwasher Valve
338SUPPORT, PRESSURE SWITCH
339WCI 5304483663
