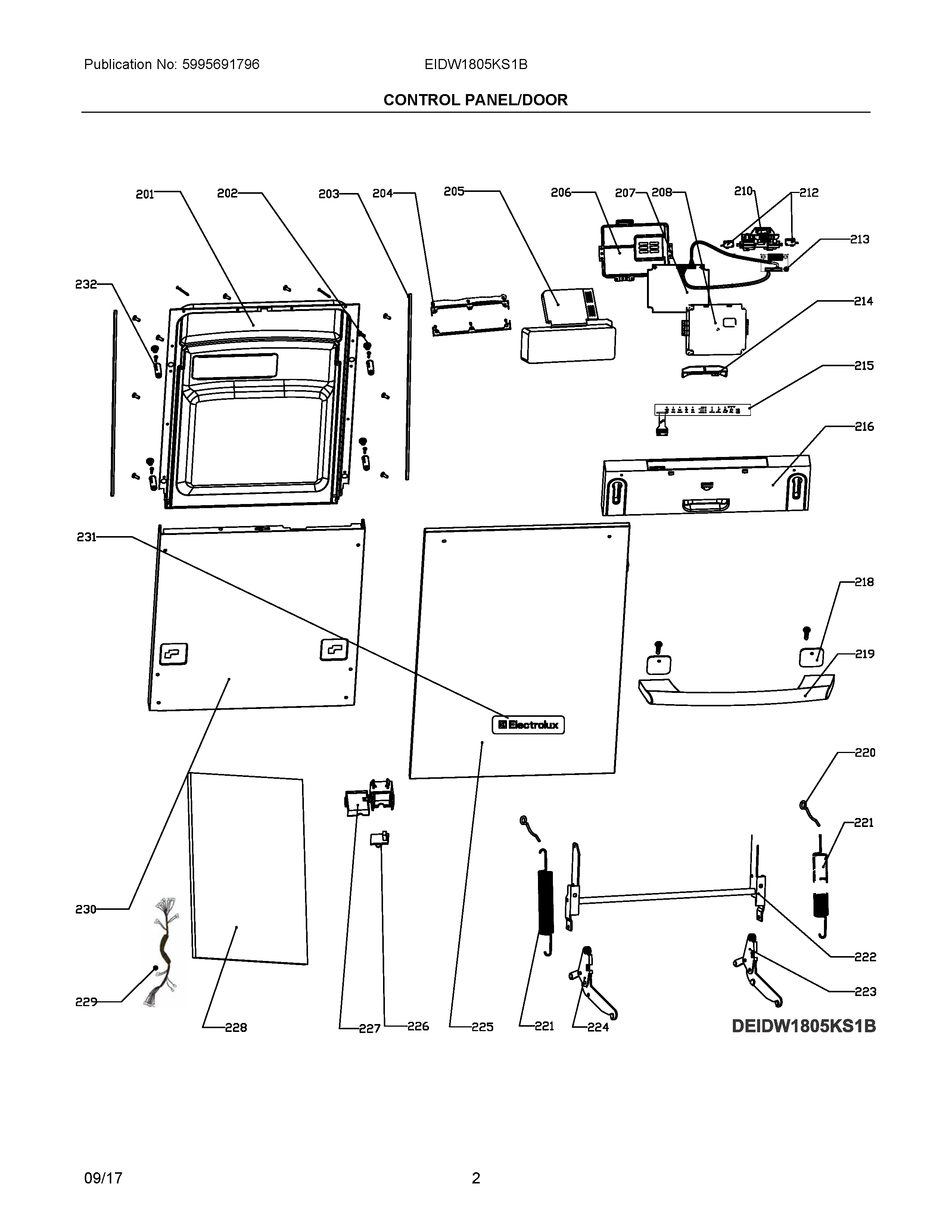

EIDW1805KS1B 02 – CONTROL PANEL/DOOR

EIDW1805KS1B 02 – CONTROL PANEL/DOOR

Written by

in

EIDW1805KS1B 02 – CONTROL PANEL/DOOR

Products

PositionProduct
NIWCI 5304513827
NIENERGY GUIDE LABEL
201WCI 5304513814
202WCI 5304513815
203WCI 5304513816
204BRACKET, DISPENSER MTG., (2)
2055304509278 Frigidaire Dishwasher Dispenser
206COVER, CONTROL BOARD
207WCI 5304513817
2085304512887 Frigidaire Dishwasher Box
210WCI 5304512886
2125304483463 Frigidaire Dishwasher Switch
2135304513818 Frigidaire Dishwasher Control Board
214COVER, CONSOLE
215MEMBRANE, TOUCH CONTROL, ASSEMBLY
2165304513819 Frigidaire Dishwasher Console Assembly
2185304513820 Frigidaire Plate Assembly
219HANDLE ASSEMBLY, DOOR
220BOLT, DOOR SPRING, (2)
221WCI 5304513821
222HINGE ASSEMBLY, DOOR
223WCI 5304512889
224WCI 5304512890
225DOOR ASSEMBLY, OUTER
226INDICATOR, LED
227COVER, LED INDICATOR
228INSULATION, DOOR, FOAM
229WCI 5304513822
230FRAME, DOOR, INNER
231241873301 Frigidaire Refrigerator Nameplate
232COVER, SCREW, (4)
