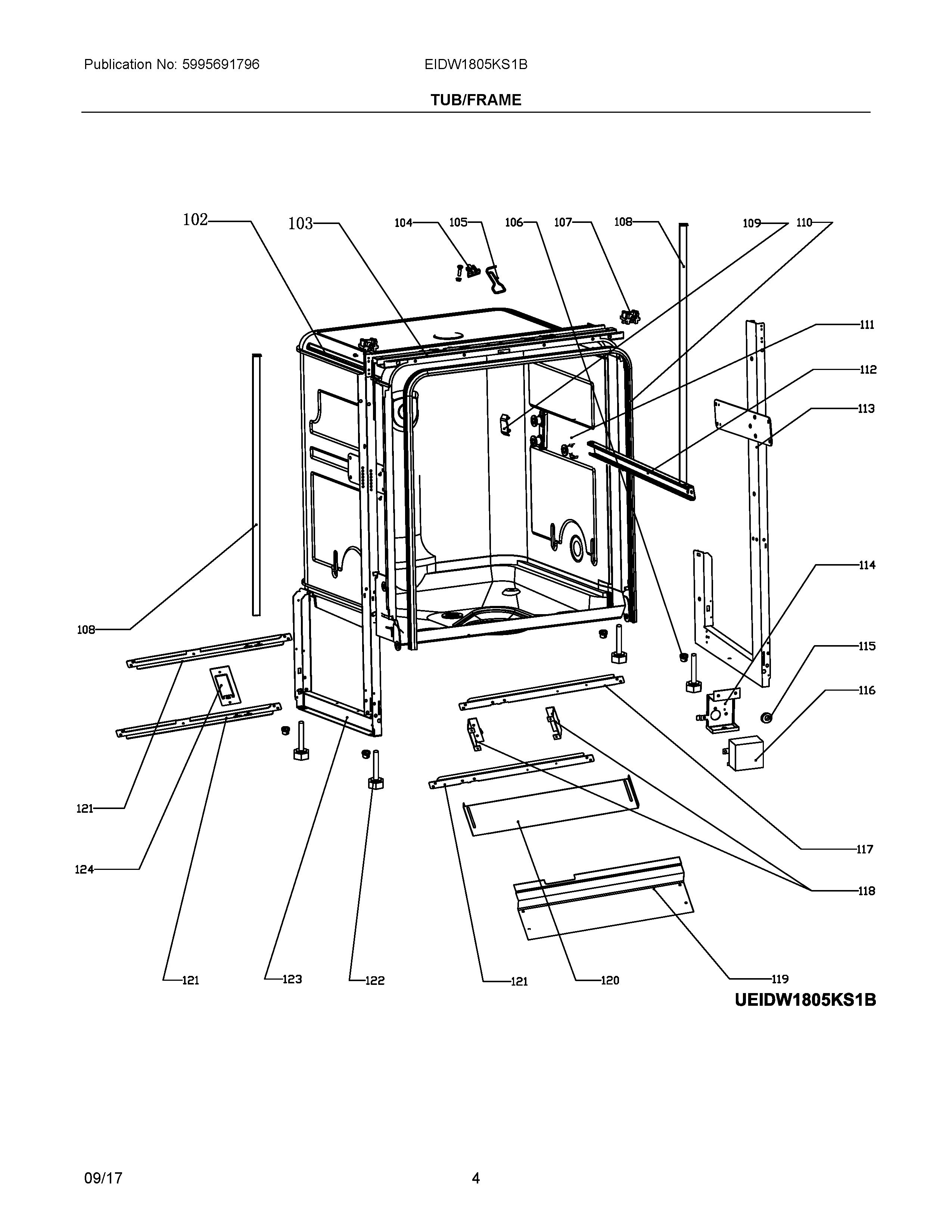

EIDW1805KS1B 03 – TUB/FRAME

EIDW1805KS1B 03 – TUB/FRAME

Written by

in

EIDW1805KS1B 03 – TUB/FRAME

Products

PositionProduct
NIWCI 5304513827
102WCI 5304513813
103BRACE ASSEMBLY, UPPER, BLACK, FRONT
104WCI 5304512893
1055304483485 Frigidaire Dishwasher Hook
106HOLDER, LEVELING FOOT, (4)
107BLOCK, TOP, BLACK, (2)
108GUARD, TUB BAND, (2)
109CAP, GUIDE RAIL, (4)
1105304512895 Frigidaire Dishwasher Gasket Assembly
1115304512894 Frigidaire Dishwasher Roller Assembly
112RAIL, GUIDE, UPPER RACK, (2)
113UPRIGHT ASSEMBLY, RH
114COVER, JUNCTION BOX
115GROMMET, JUNCTION BOX
116BOX, JUNCTION
117BRACE, BACK, LOWER
118SUPPORT, TOEPLATE, (2)
119TOE PLATE, BLACK
120KICK PLATE, ADJUSTABLE, BLACK
121BRACE, FRONT, LOWER, (3)
122FOOT, LEVELING, (4)
123UPRIGHT ASSEMBLY, LH
124BRACKET, MOTOR SUPPORT
