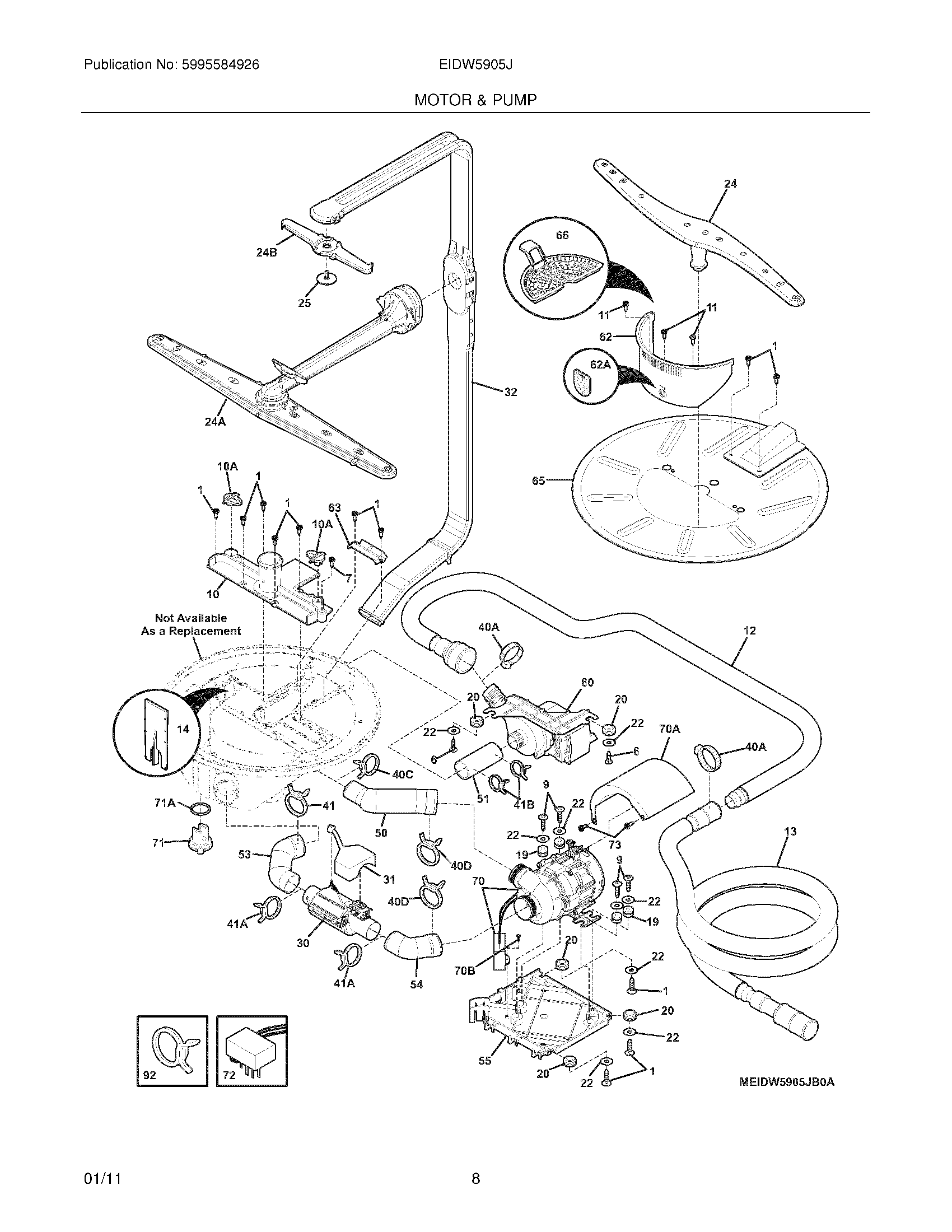

EIDW5905JB0A 09 – MOTOR & PUMP

Products

Position	Product
NI	WCI 154833101
NI	154779601 Frigidaire Dishwasher Screw
1	154518001 Frigidaire Refrigerator Screw
6	SCREW, 6 LOBE RECESS, #8-18
7	SCREW, 6 LOBE RECESS, #10 HI LO
9	5304453707 Frigidaire Oven Screw
10	SUPPORT, LOWER SPRAY ARM
10A	CLAMP, FILTER, (2)
11	154783101 Frigidaire Dishwasher Screw
12	WCI 154820201
13	WCI 154820301
14	BRACKET, DRAIN
19	GROMMET, VIBRATION, (4)
20	GROMMET, VIBRATION, (5)
22	5300809968 Frigidaire Dishwasher P-1 Washer
24A	A01986801 Frigidaire Upper Rack Assembly
24	154755501 Frigidaire Dishwasher Spray Arm
24B	SPRAY ARM, ASSEMBLY, UPPER
25	PIN, SPRAY ARM, UPPER
30	154503701 Frigidaire Heating Element
31	COVER, INLINE HEATER
32	WCI 154812301
40A	154380601 Frigidaire Dishwasher Clamp Assembly
40D	CLAMP, SPRING, 1.625", SAE 26
40C	CLAMP, SPRING, 1.312", SAE 21
41	CLAMP, SPRING, SAE 28
41A	CLAMP, SPRING, SAE 25, HOSE
41B	CLAMP, SPRING, (2)
50	154760501 Frigidaire Dishwasher Hose
51	154757702 Frigidaire Hose
53	HOSE, SUMP TO, INLINE HEATER
54	HOSE, INLINE HEATER, TO MOTOR
55	154677101 Frigidaire Dishwasher Plate
60	154757901 Frigidaire Dishwasher Pump Assembly
62	FILTER ASSEMBLY, VERTICAL, W/FLAPPER
62A	FLAPPER, DRAIN CHECK
63	COVER, DEL
65	154283005 Frigidaire Dishwasher Filter Assembly
66	WCI 154740901
70	154614002 Frigidaire Dishwasher Drain Pump and Motor Assembly
70B	WCI 154614401
70A	WCI 154656401
71A	154691901 Frigidaire Dishwasher O-Ring
71	154473901 Frigidaire Dishwasher Sensor
72	154655901 Frigidaire Dishwasher Sensor
73	SCREW, 6 LOBE RECESS, #8-32
92	154348502 Frigidaire Dishwasher Clamp
