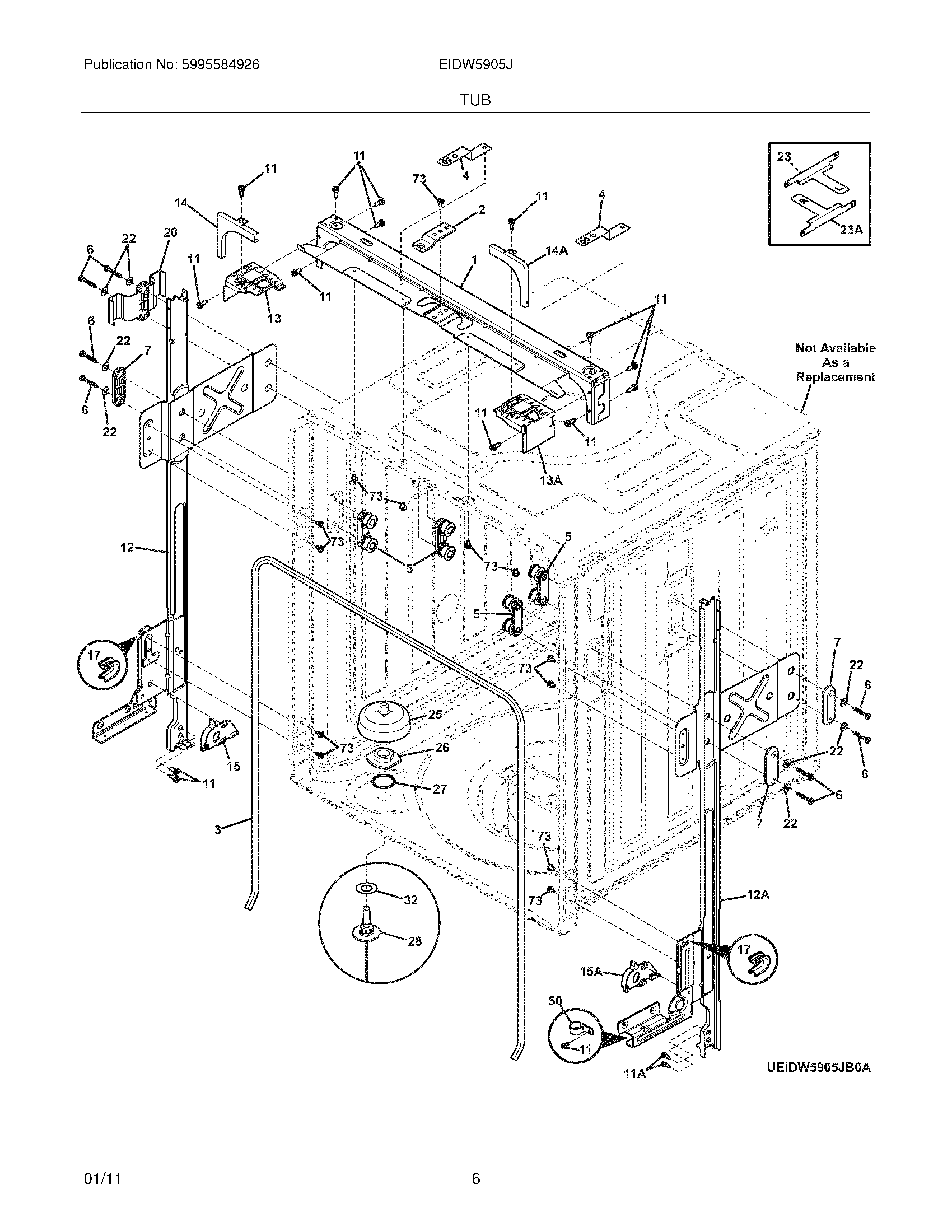

EIDW5905JW0A 07 – TUB

Products

Position	Product
NI	WCI 154817301
NI	154733001 Frigidaire Dishwasher Seal
NI	WCI 154662101
NI	CLIP, INSULATION, (2)
NI	SEAL, TUB CORNER, LH LOWER
NI	SCREW, CABINET CLAMP, (2)
1	BRACE, FRAME, TOP
2	STRIKE, DOOR LATCH
3	GASKET, TUB
4	CLIP, CABINET MTG., TOP MOUNT, (2)
5	ROLLER ASSEMBLY, TUB, (4), W/GASKET
6	WCI 154719001
7	PLATE, RETAINER, OUTER, (2), TUB ROLLER
11	SCREW, 6 LOBE RECESS, #8-18
11A	154200701 Frigidaire Dishwasher Screw
12A	LEG AND HINGE ASSEMBLY, RIGHT HAND, FRONT
12	LEG AND HINGE ASSEMBLY, LEFT HAND, FRONT
13	BRACKET, CABINET CLIP, LH
13A	BRACKET, CABINET CLIP, RH
14	TRIM, CORNER, LH
14A	TRIM, CORNER, RH
15	COVER, HINGE ARM, LH
15A	COVER, HINGE ARM, RH
17	BUSHING, HINGE ARM CABLE, (2)
20	WCI 154818101
22	5300809968 Frigidaire Dishwasher P-1 Washer
23A	CLIP, CABINET MTG., RH
23	154654601 Frigidaire Dishwasher Clip
25	154764401 Frigidaire Dishwasher Float
26	154506902 Frigidaire Dishwasher Nut
27	154677201 Frigidaire Dishwasher Gasket
28	154763901 Frigidaire Dishwasher Switch Assembly
32	154506801 Frigidaire Dishwasher Washer
50	154690101 Frigidaire Clamp
73	SCREW, 6 LOBE RECESS, #8-32
