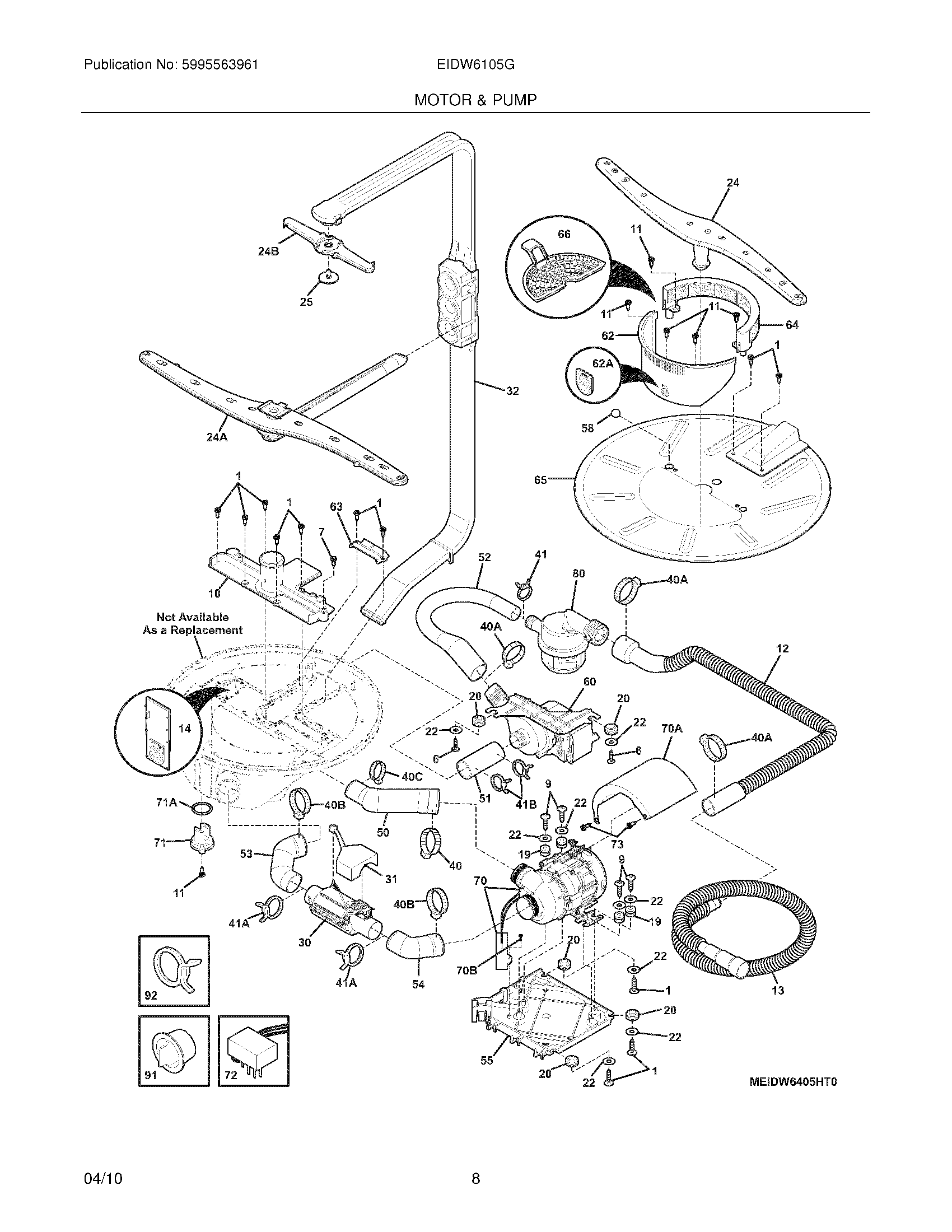

EIDW6105GB1A 09 – MOTOR & PUMP

EIDW6105GB1A 09 – MOTOR & PUMP

Written by

in

EIDW6105GB1A 09 – MOTOR & PUMP

Products

PositionProduct
NICLAMP, FILTER, (2)
NIWCI 154627001
1154518001 Frigidaire Refrigerator Screw
6SCREW, 6 LOBE RECESS, #8-18
7SCREW, 6 LOBE RECESS, #10 HI LO
95304453707 Frigidaire Oven Screw
10SUPPORT, LOWER SPRAY ARM
11WCI 5303316032
12HOSE, DRAIN, INTERMEDIATE
135304521094 Frigidaire Dishwasher Hose
14WCI 154511801
19GROMMET, VIBRATION, (4)
20GROMMET, VIBRATION, (5)
225300809968 Frigidaire Dishwasher P-1 Washer
24154755501 Frigidaire Dishwasher Spray Arm
24ASPRAY ARM, ASSEMBLY, MIDDLE, W/MANIFOLD
24BSPRAY ARM, ASSEMBLY, UPPER
25PIN, SPRAY ARM, UPPER
30154503701 Frigidaire Heating Element
31COVER, INLINE HEATER
32TUBING ASSEMBLY, DELIVERY, W/CHECK VALVE
40A154380601 Frigidaire Dishwasher Clamp Assembly
40BWCI 154693001
40CWCI 154692801
40CLAMP, HOSE, 1.64" OPEN, WORM GEAR
41154348401 Frigidaire Dishwasher Clamp
41A154611101 Frigidaire Dishwasher Clamp
41BCLAMP, SPRING, (2)
50154679602 Frigidaire Hose
51154757702 Frigidaire Hose
52154622402 Frigidaire Dishwasher Hose
53WCI 154653201
54WCI 154653301
55154677101 Frigidaire Dishwasher Plate
58WCI 154512401
60154757901 Frigidaire Dishwasher Pump Assembly
62AFLAPPER, DRAIN CHECK
62FILTER ASSEMBLY, VERTICAL, W/FLAPPER
63COVER, DEL
64WCI 154604502
65154283005 Frigidaire Dishwasher Filter Assembly
66WCI 154740901
70AWCI 154656401
70154614002 Frigidaire Dishwasher Drain Pump and Motor Assembly
70BWCI 154614401
71A154691901 Frigidaire Dishwasher O-Ring
71154473901 Frigidaire Dishwasher Sensor
72154655901 Frigidaire Dishwasher Sensor
73SCREW, 6 LOBE RECESS, #8-32
80154622001 Frigidaire Dishwasher Drain Valve
91WCI 154676701
92154348502 Frigidaire Dishwasher Clamp
