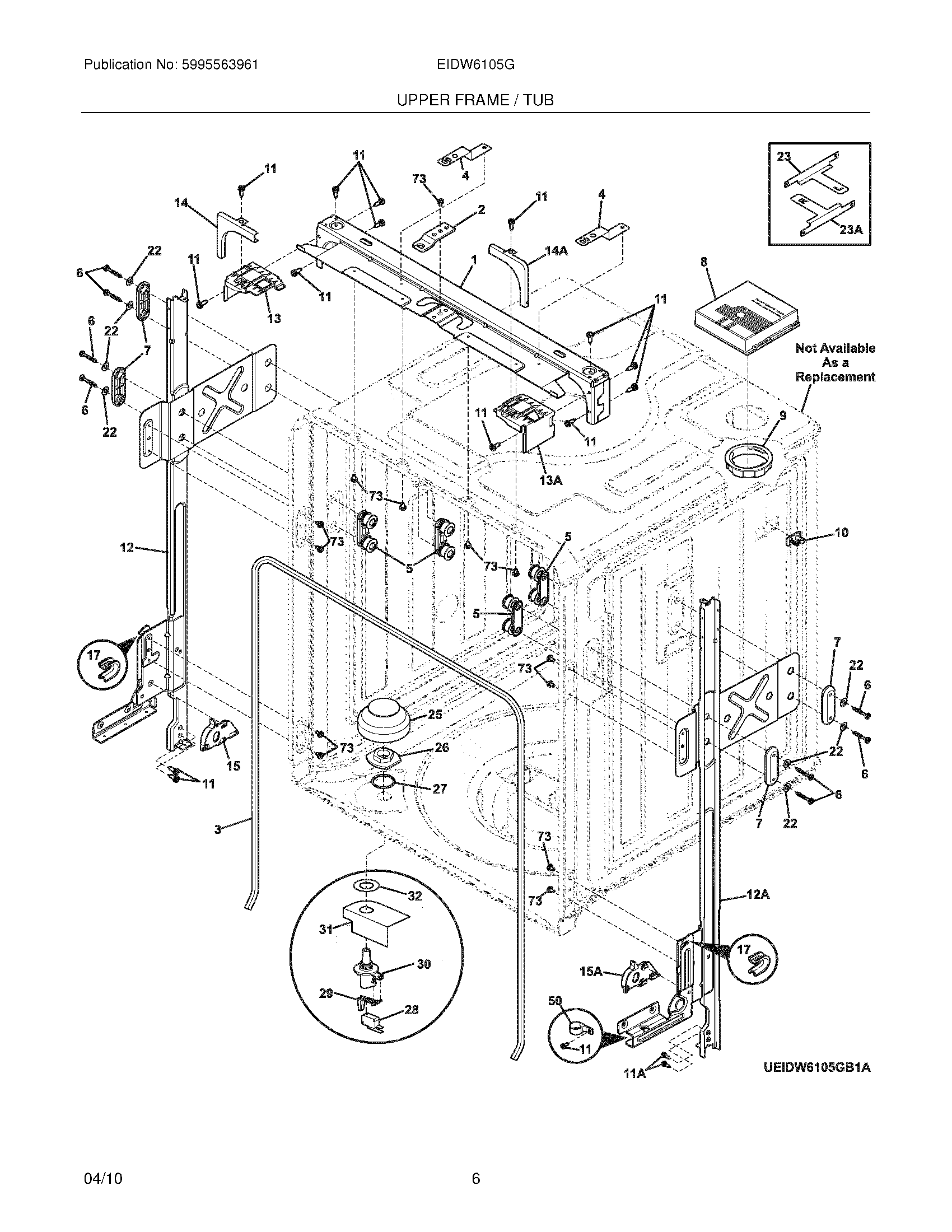

EIDW6105GS1A 07 – UPPER FRAME/TUB

Products

Position	Product
NI	154691601 Frigidaire Dishwasher Cover
NI	SCREW, CABINET CLAMP, (2)
NI	SEAL, TUB CORNER, LH LOWER
NI	CLIP, INSULATION, (2)
NI	WCI 154662101
NI	INSULATION, BLANKET
NI	154733001 Frigidaire Dishwasher Seal
1	BRACE, FRAME, TOP
2	STRIKE, DOOR LATCH
3	GASKET, TUB
4	CLIP, CABINET MTG., TOP MOUNT, (2)
5	ROLLER ASSEMBLY, TUB, (4), W/GASKET
6	WCI 154719001
7	PLATE, RETAINER, OUTER, (2), TUB ROLLER
8	VENT ASSEMBLY, UPPER
9	154622601 Frigidaire Dishwasher Bezel
10	CLIP, WIRING HARNESS
11	SCREW, 6 LOBE RECESS, #8-18
11A	154200701 Frigidaire Dishwasher Screw
12A	LEG AND HINGE ASSEMBLY, RIGHT HAND, FRONT
12	LEG AND HINGE ASSEMBLY, LEFT HAND, FRONT
13	BRACKET, CABINET CLIP, LH
13A	BRACKET, CABINET CLIP, RH
14A	TRIM, CORNER, RH
14	TRIM, CORNER, LH
15	COVER, HINGE ARM, LH
15A	COVER, HINGE ARM, RH
17	BUSHING, HINGE ARM CABLE, (2)
22	5300809968 Frigidaire Dishwasher P-1 Washer
23A	CLIP, CABINET MTG., RH
23	154654601 Frigidaire Dishwasher Clip
26	154506902 Frigidaire Dishwasher Nut
27	154677201 Frigidaire Dishwasher Gasket
28	154860901 Frigidaire Dishwasher Float Sensor
30	154763901 Frigidaire Dishwasher Switch Assembly
31	WCI 154657101
32	154506801 Frigidaire Dishwasher Washer
50	154690101 Frigidaire Clamp
73	SCREW, 6 LOBE RECESS, #8-32
