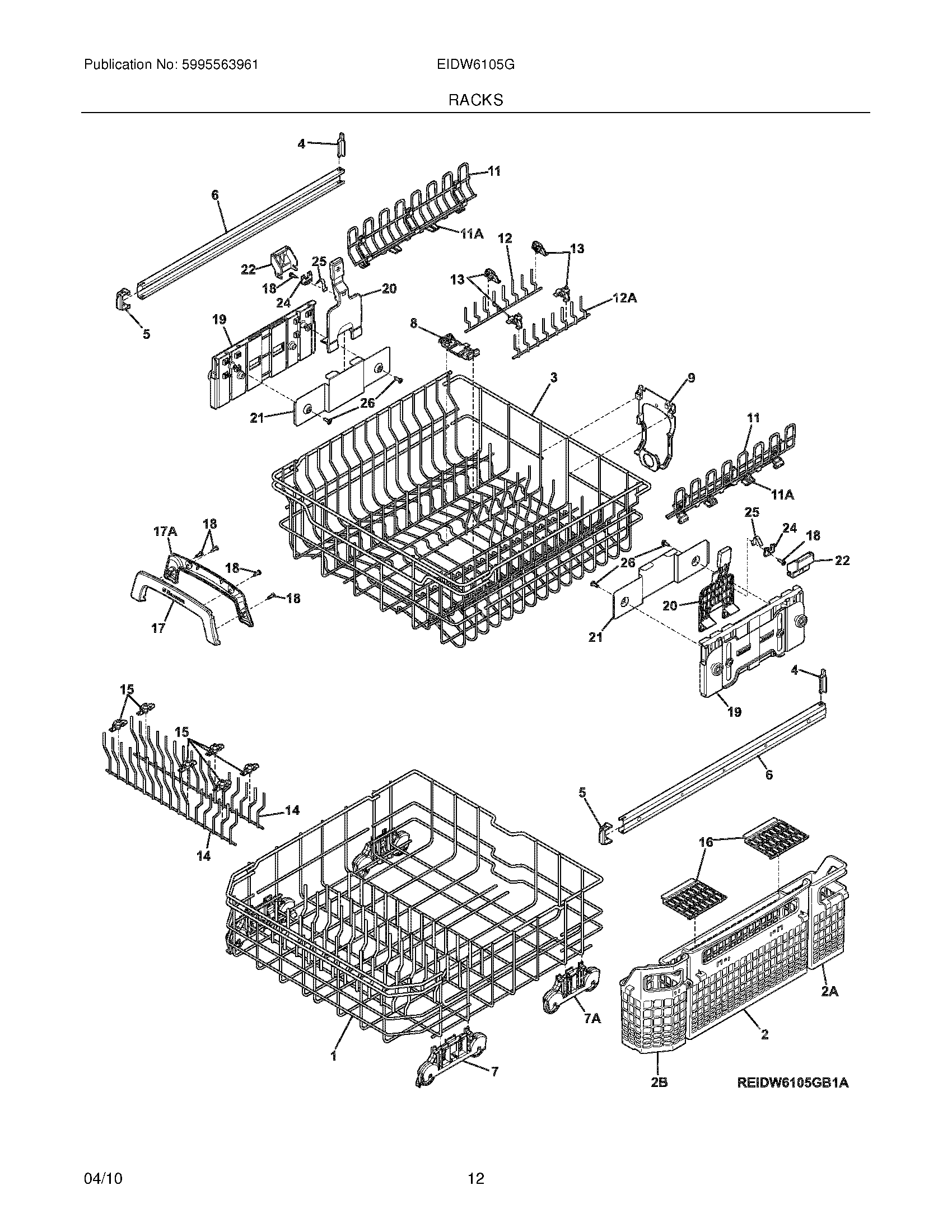

EIDW6105GW1A 13 – RACKS

Products

Position	Product
1	WCI 154786601
2B	BASKET, SILVERWARE, SIDE, FRONT
2A	BASKET, SILVERWARE, SIDE, REAR
2	BASKET, SILVERWARE, MAIN, CENTER
3	WCI 154653701
4	154510902 Frigidaire Dishwasher Clip
5	154510805 Frigidaire Dishwasher Cap
6	GUIDE RAIL, UPPER RACK, (2)
7A	ROLLER ASSEMBLY, LOWER RACK, REAR, (2)
7	ROLLER ASSEMBLY, LOWER RACK, FRONT, (2)
8	154610501 Frigidaire Dishwasher Bracket
9	154613402 Frigidaire Dishwasher Clip
11A	154629102 Frigidaire Dishwasher Clip
11	SHELF, CUP, UPPER RACK, (2)
12	FENCE, FOLD DOWN, LH CENTER, UPPER RACK
12A	FENCE, FOLD DOWN, RH CENTER, UPPER RACK
13	CLIP, FOLD DOWN FENCE, UPPER RACK, (4)
14	FENCE, FOLD DOWN, LOWER RACK, (2), FULL LENGTH
15	154428402 Frigidaire Bracket
16	LID, MAIN BASKET, SIDE, (2)
17A	HANDLE, BACK, UPPER RACK
17	HANDLE, FRONT, UPPER RACK, ELECTROLUX
18	SCREW, UPPER RACK
19	PLATE ASSEM
19A	WCI 154673601
20	WCI 154655101
21	WCI 154630101
22	WCI 154630301
24	WCI 154655201
25	WCI 154630201
26	SCREW, 6 LOBE RECESS, #10 HI LO
