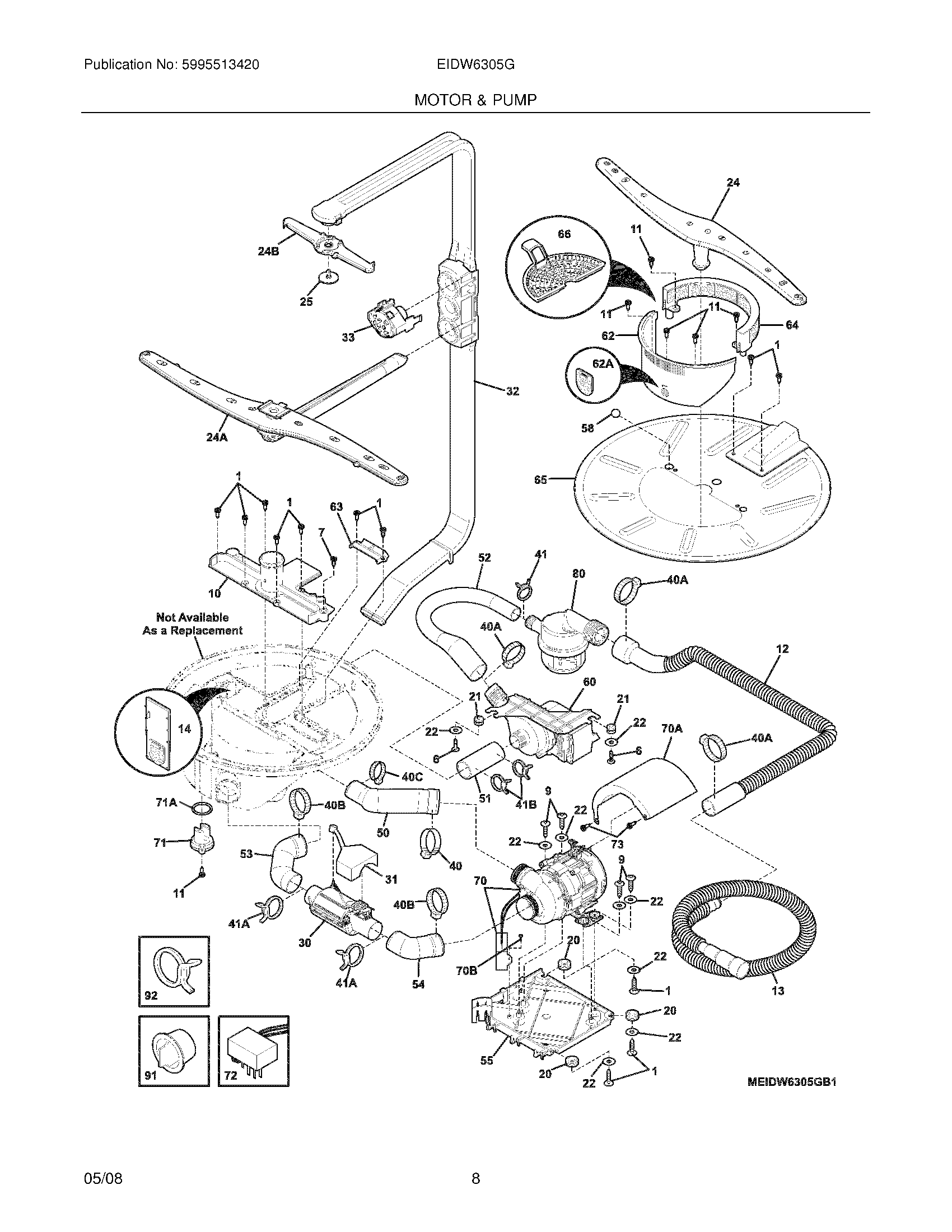

EIDW6305GB1 09 – MOTOR & PUMP

Products

Position	Product
NI	WCI 7154627001
1	154518001 Frigidaire Refrigerator Screw
6	WCI 7154518301
7	WCI 7154673501
9	5304453707 Frigidaire Oven Screw
10	WCI 7154602001
11	WCI 75303316032
12	WCI 7154654801
13	5304521094 Frigidaire Dishwasher Hose
14	WCI 7154511801
20	WCI 7154678602
21	WCI 7154672502
22	5300809968 Frigidaire Dishwasher P-1 Washer
24	154755501 Frigidaire Dishwasher Spray Arm
24B	WCI 7154649502
25	WCI 7154650102
30	154503701 Frigidaire Heating Element
31	WCI 7154622901
32	WCI 7154515602
33	WCI 7154616502
40	WCI 7154692901
40B	WCI 7154693001
40C	WCI 7154692801
40A	154380601 Frigidaire Dishwasher Clamp Assembly
41B	WCI 7154691501
41A	154611101 Frigidaire Dishwasher Clamp
41	154348401 Frigidaire Dishwasher Clamp
50	154679602 Frigidaire Hose
51	154757702 Frigidaire Hose
52	154622402 Frigidaire Dishwasher Hose
53	WCI 7154653201
54	WCI 7154653301
55	154677101 Frigidaire Dishwasher Plate
58	WCI 7154512401
60	WCI 7154618701
62A	WCI 7154511601
62	WCI 7154600702
63	WCI 7154513501
64	WCI 7154604502
65	WCI 7154624901
66	WCI 7154514302
70B	WCI 7154614401
70A	WCI 7154656401
70	154614002 Frigidaire Dishwasher Drain Pump and Motor Assembly
71	154473901 Frigidaire Dishwasher Sensor
71A	154691901 Frigidaire Dishwasher O-Ring
72	154655901 Frigidaire Dishwasher Sensor
73	WCI 7154518401
80	154622001 Frigidaire Dishwasher Drain Valve
91	WCI 7154676701
92	154348502 Frigidaire Dishwasher Clamp
