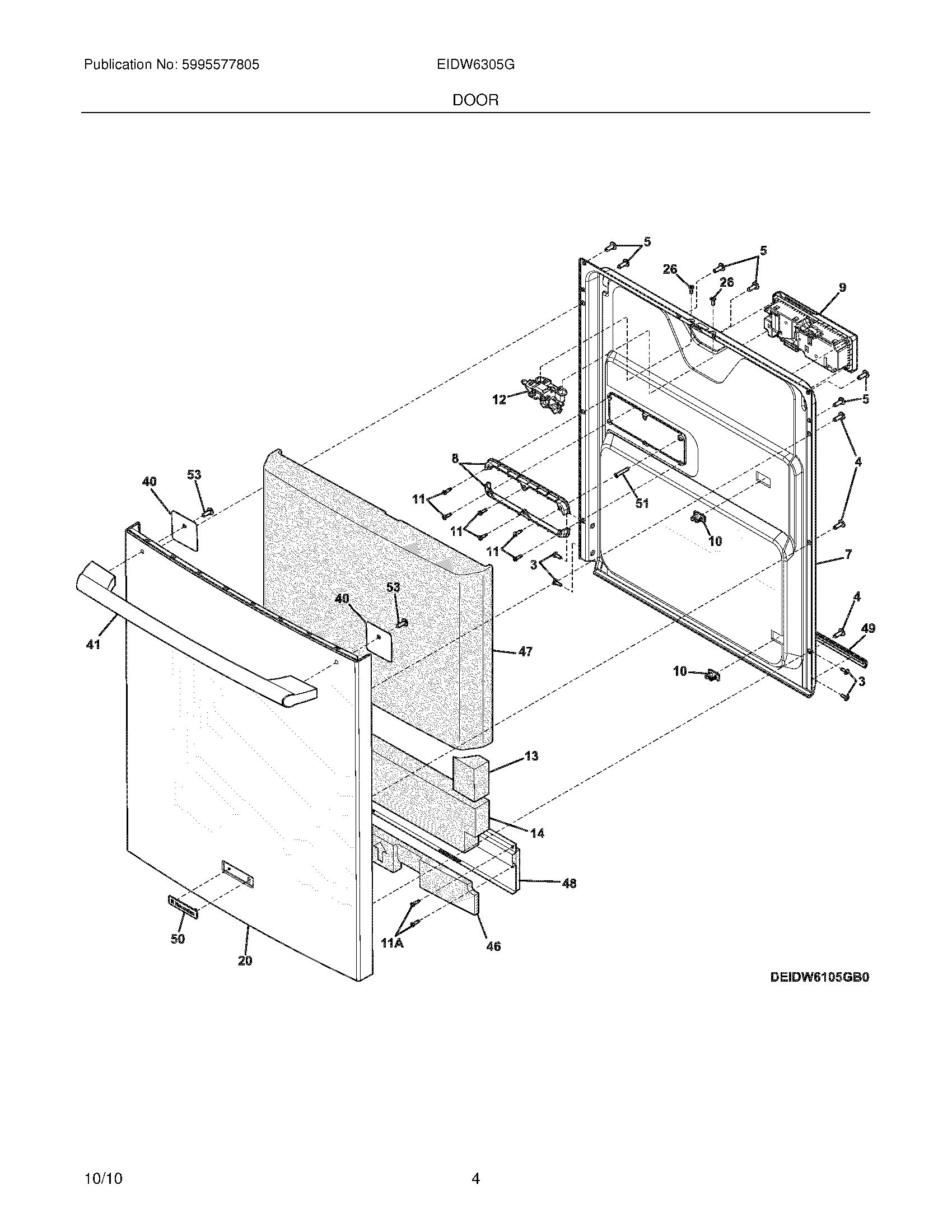

EIDW6305GS1A 05 – DOOR

EIDW6305GS1A 05 – DOOR

Written by

in

EIDW6305GS1A 05 – DOOR

Products

PositionProduct
3SCREW, 6 LOBE RECESS, #10-32, (4)
4154603801 Frigidaire Dishwasher Screw
5SCREW, PH, #10-16 HI-LO, (6), 6 LOBE
7WCI 154509701
8BRACKET, DISPENSER MTG., (2)
95304507354 Frigidaire Dishwasher Dispenser
10CLIP, WIRING HARNESS
11SCREW, FT PH 6 LOBE,#8-18
11ASCREW, 6 LOBE RECESS, #8-18
12154671402 Frigidaire Dishwasher Door Latch Assembly
13WCI 154670701
14WCI 154623401
20WCI 154603501
26SCREW, PHLPS HD, #10-16 HI LO, (4)
40154603401 Frigidaire Dishwasher Plate Assembly
41WCI 241881305
46WCI 154690501
47WCI 154672002
48REINFORCEMENT, ASSEMBLY, DOOR
49GASKET, DOOR BOTTOM
50241873301 Frigidaire Refrigerator Nameplate
51WCI 154320301
53154633601 Frigidaire Dishwasher Screw
