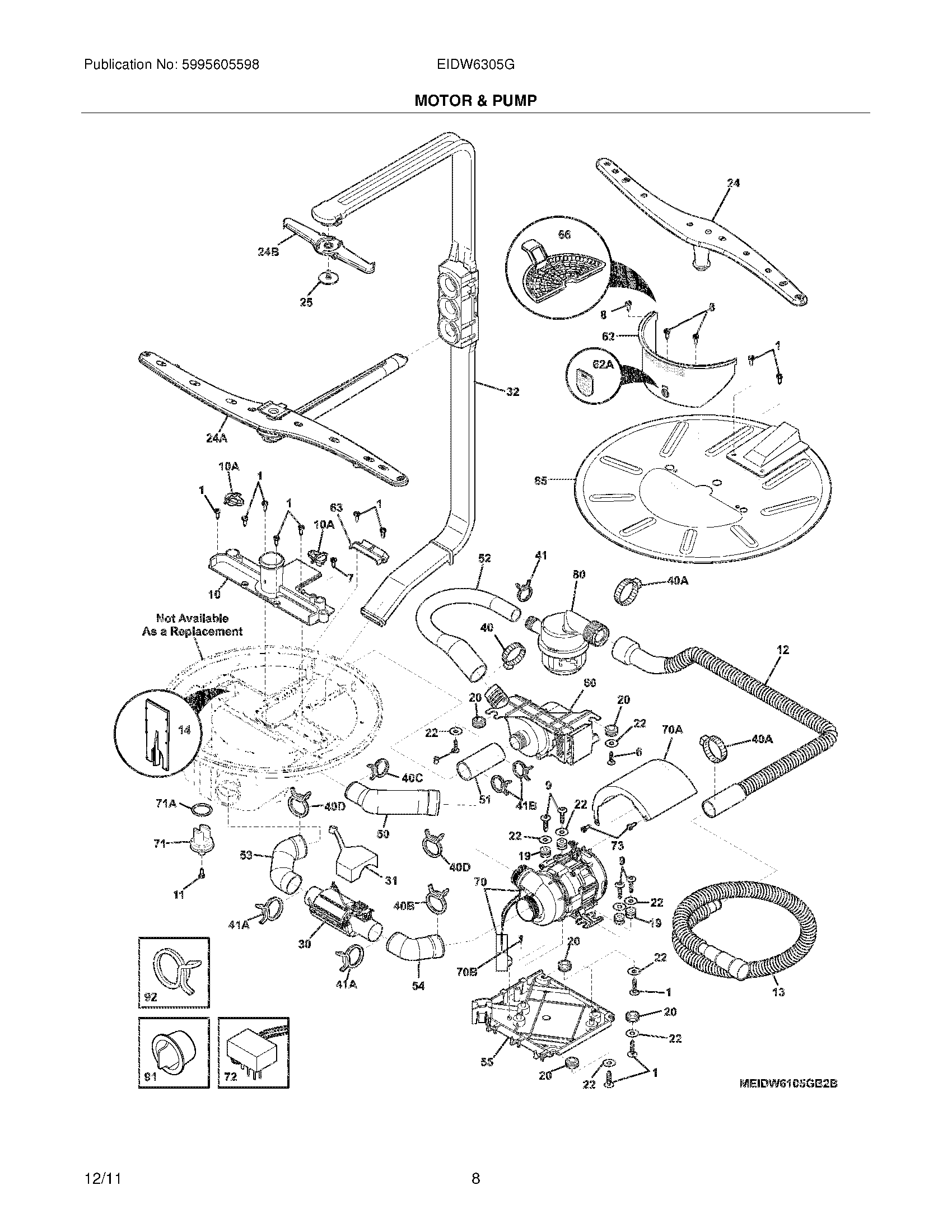

EIDW6305GS2B 09 – MOTOR & PUMP

EIDW6305GS2B 09 – MOTOR & PUMP

Written by

in

EIDW6305GS2B 09 – MOTOR & PUMP

Products

PositionProduct
NIWCI 154833101
NIWCI 154819101
NIWCI 154832701
NIWCI 154836801
NISCREW, CABINET CLAMP, (2)
1154518001 Frigidaire Refrigerator Screw
6SCREW, 6 LOBE RECESS, #8-18
7SCREW, 6 LOBE RECESS, #10 HI LO
8154783101 Frigidaire Dishwasher Screw
95304453707 Frigidaire Oven Screw
10ACLAMP, FILTER, (2)
10SUPPORT, LOWER SPRAY ARM
11154779601 Frigidaire Dishwasher Screw
12HOSE, DRAIN, INTERMEDIATE
135304521094 Frigidaire Dishwasher Hose
14BRACKET, DRAIN
19GROMMET, VIBRATION, (4)
20GROMMET, VIBRATION, (5)
225300809968 Frigidaire Dishwasher P-1 Washer
24154755501 Frigidaire Dishwasher Spray Arm
24ASPRAY ARM, ASSEMBLY, MIDDLE, W/MANIFOLD
24BSPRAY ARM, ASSEMBLY, UPPER
25PIN, SPRAY ARM, UPPER
30154503701 Frigidaire Heating Element
31COVER, INLINE HEATER
32TUBING ASSEMBLY, DELIVERY, W/CHECK VALVE
40DCLAMP, SPRING, 1.625", SAE 26
40CCLAMP, SPRING, 1.312", SAE 21
40BCLAMP, SPRING, SAE 28
40CLAMP, HOSE, 1.64" OPEN, WORM GEAR
40A154380601 Frigidaire Dishwasher Clamp Assembly
41154348401 Frigidaire Dishwasher Clamp
41ACLAMP, SPRING, SAE 25, HOSE
41BCLAMP, SPRING, (2)
50154760501 Frigidaire Dishwasher Hose
51154757702 Frigidaire Hose
52154622402 Frigidaire Dishwasher Hose
53HOSE, SUMP TO, INLINE HEATER
54HOSE, INLINE HEATER, TO MOTOR
55154677101 Frigidaire Dishwasher Plate
60154757901 Frigidaire Dishwasher Pump Assembly
62AFLAPPER, DRAIN CHECK
62FILTER ASSEMBLY, VERTICAL, W/FLAPPER
63COVER, DEL
65154283005 Frigidaire Dishwasher Filter Assembly
66WCI 154740901
70AWCI 154656401
70154614002 Frigidaire Dishwasher Drain Pump and Motor Assembly
70BWCI 154614401
71A154691901 Frigidaire Dishwasher O-Ring
71154473901 Frigidaire Dishwasher Sensor
72154655901 Frigidaire Dishwasher Sensor
73SCREW, 6 LOBE RECESS, #8-32
80154622001 Frigidaire Dishwasher Drain Valve
91WCI 154676701
92154348502 Frigidaire Dishwasher Clamp
