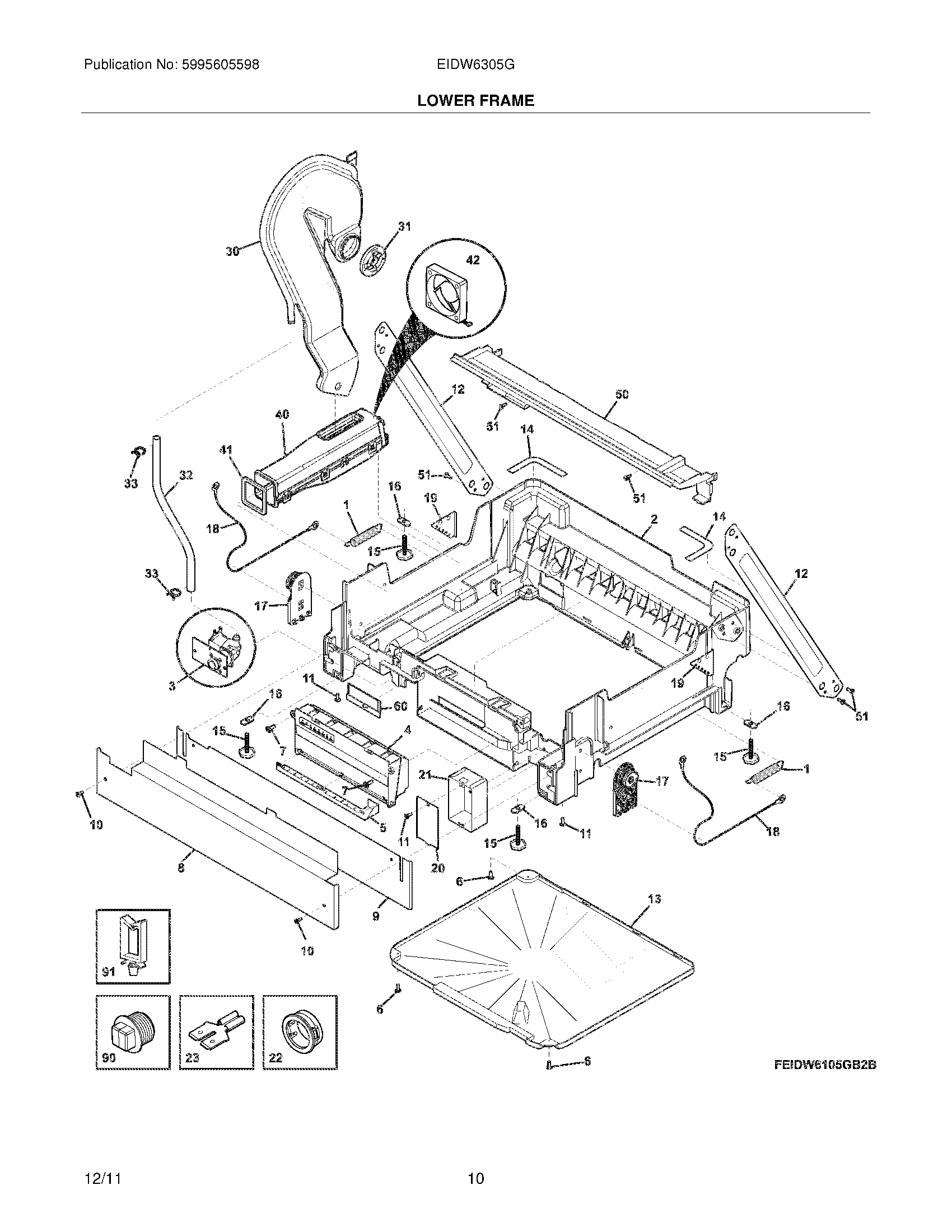

EIDW6305GS2B 11 – LOWER FRAME

Products

Position	Product
NI	SCREW, 6 TRI LOBE, #10 PH, (2)
NI	HARNESS, WIRING, LH SIDE, BASE
NI	HARNESS, WIRING, RH SIDE, BASE
NI	DEFL
1	SPRING, DOOR HINGE, (2)
2	BASE, FRAME MOUNTING
3	VALVE ASSEMBLY, WATER
4	154750502 Frigidaire Dishwasher Electronic Printed Circuit Control Board
5	BRACKET, CONTROL HOUSING
6	154294701 Frigidaire Dishwasher Screw
7	SCREW, 6 LOBE RECESS, #10 HI LO
8	154658005 Frigidaire Dishwasher KickPlate
9	154679305 Frigidaire Dishwasher TOE Plate
10	WCI 154371307
11	SCREW, 6 LOBE RECESS, #8-18
12	FRAME, DIAGONAL, LEG, (2)
13	TRAY, BASE, W/LABEL
14	TAPE, CONNECTION, (2), BASE TO TUB
15	5304506540 Frigidaire Dishwasher Leg Assembly
16	PLATE, MOUNTING, (4), LEVELING LEG
17	BRACKET ASSEMBLY, PULLEY, (2)
18	154658601 Frigidaire Hinge Cable
19	PLATE, ADJUSTMENT, (2), DOOR SPRING
20	COVER, JUNCTION BOX, W/LABEL
21	BOX, JUNCTION
22	GROMMET, ELECTRICAL
23	CONNECTOR, GROUND, 1 FEMALE, TO 2 MALE
30	154617901 Frigidaire Dishwasher Duct Assembly
31	COVER, DRYING INLET
32	154625001 Frigidaire Dishwasher Tubing
33	CLAMP, HOSE
40	DUCT ASSEMBLY, LOWER DRYING, W/MOTOR
41	GASKET, DRYING DUCT, LOWER
42	MOTOR, DRYING
50	ADAPTOR PLATE, ASSEMBLY, W/SHIELD
51	154518001 Frigidaire Refrigerator Screw
60	COVER, VALVE SERVICE
90	PLUG, WATER VALVE
91	CLIP, WIRING
