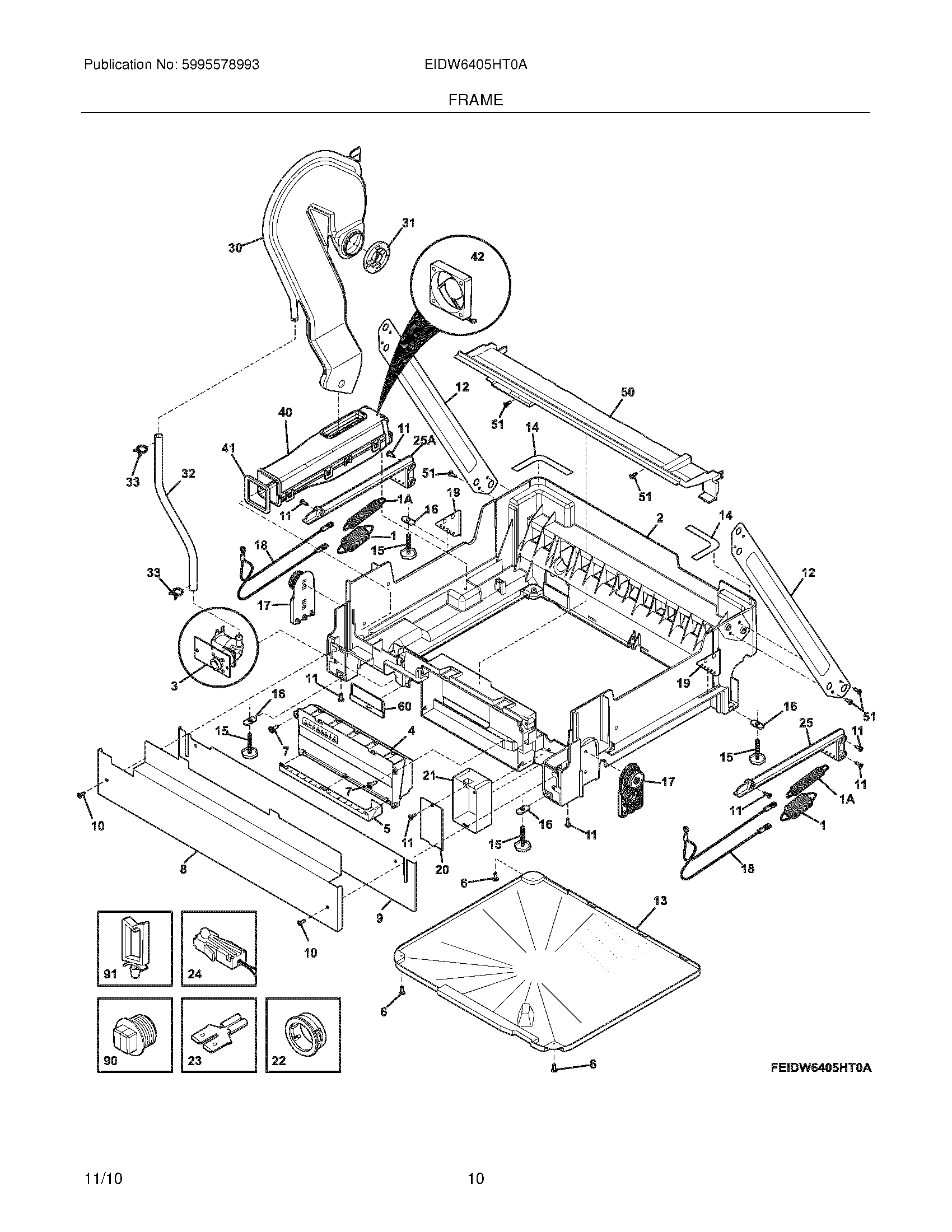

EIDW6405HT0A 11 – FRAME

Products

Position	Product
NI	DEFL
NI	SCREW, 6 TRI LOBE, #10 PH, (2)
NI	WCI 154688401
NI	WCI 154654001
1A	WCI 154696901
1	WCI 154696801
2	BASE, FRAME MOUNTING
3	VALVE ASSEMBLY, WATER
4	154750502 Frigidaire Dishwasher Electronic Printed Circuit Control Board
5	BRACKET, CONTROL HOUSING
6	154294701 Frigidaire Dishwasher Screw
7	SCREW, 6 LOBE RECESS, #10 HI LO
8	WCI 154759603
9	WCI 154679303
10	WCI 154371304
11	SCREW, 6 LOBE RECESS, #8-18
12	FRAME, DIAGONAL, LEG, (2)
13	TRAY, BASE, W/LABEL
14	TAPE, CONNECTION, (2), BASE TO TUB
15	5304506540 Frigidaire Dishwasher Leg Assembly
16	PLATE, MOUNTING, (4), LEVELING LEG
17	WCI 154792201
18	WCI 154697101
19	PLATE, ADJUSTMENT, (2), DOOR SPRING
20	COVER, JUNCTION BOX, W/LABEL
21	BOX, JUNCTION
22	GROMMET, ELECTRICAL
23	CONNECTOR, GROUND, 1 FEMALE, TO 2 MALE
24	LIGHT ASSEMBLY, CLEANING
25	WCI 154696601
25A	WCI 154696701
30	154617901 Frigidaire Dishwasher Duct Assembly
31	COVER, DRYING INLET
32	154625001 Frigidaire Dishwasher Tubing
33	CLAMP, HOSE
40	DUCT ASSEMBLY, LOWER DRYING, W/MOTOR
41	GASKET, DRYING DUCT, LOWER
42	MOTOR, DRYING
50	WCI 154670401
51	154518001 Frigidaire Refrigerator Screw
60	COVER, VALVE SERVICE
90	PLUG, WATER VALVE
91	CLIP, WIRING
