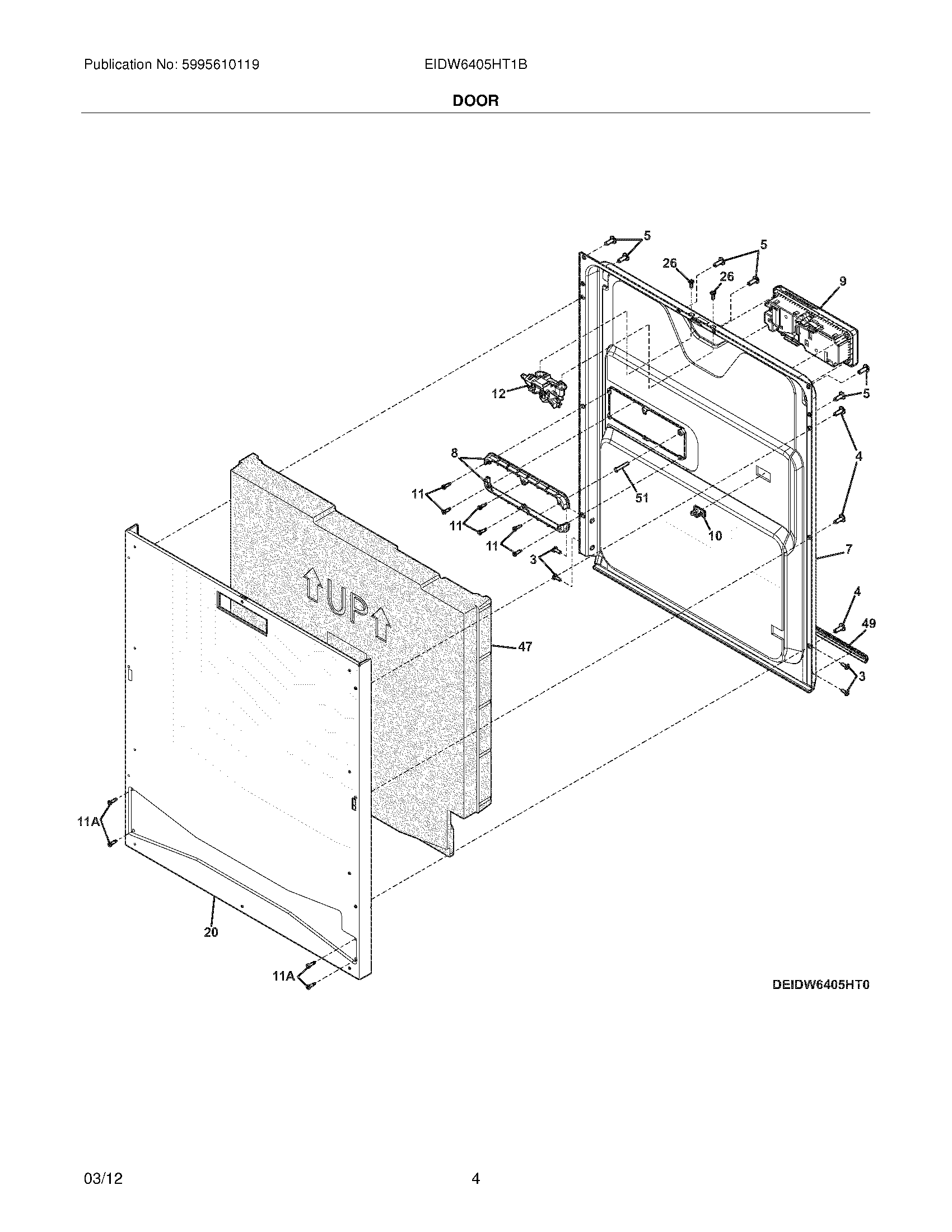

| NI | WCI 154735601 |
| 3 | SCREW, 6 LOBE RECESS, #10-32, (4) |
| 4 | 154603801 Frigidaire Dishwasher Screw |
| 5 | SCREW, PH, #10-16 HI-LO, (6), 6 LOBE |
| 7 | LINER ASSEMBLY, DOOR, INNER, W/MASTIC-WIPER |
| 8 | BRACKET, DISPENSER MTG., (2) |
| 9 | 5304507354 Frigidaire Dishwasher Dispenser |
| 10 | CLIP, WIRING HARNESS |
| 11 | SCREW, FT PH 6 LOBE,#8-18 |
| 11A | SCREW, 6 LOBE RECESS, #8-18 |
| 12 | 154671402 Frigidaire Dishwasher Door Latch Assembly |
| 20 | WCI 154603201 |
| 26 | SCREW, PHLPS HD, #10-16 HI LO, (4) |
| 47 | WCI 154746601 |
| 49 | WCI 154859401 |
| 51 | WCI 154320301 |
