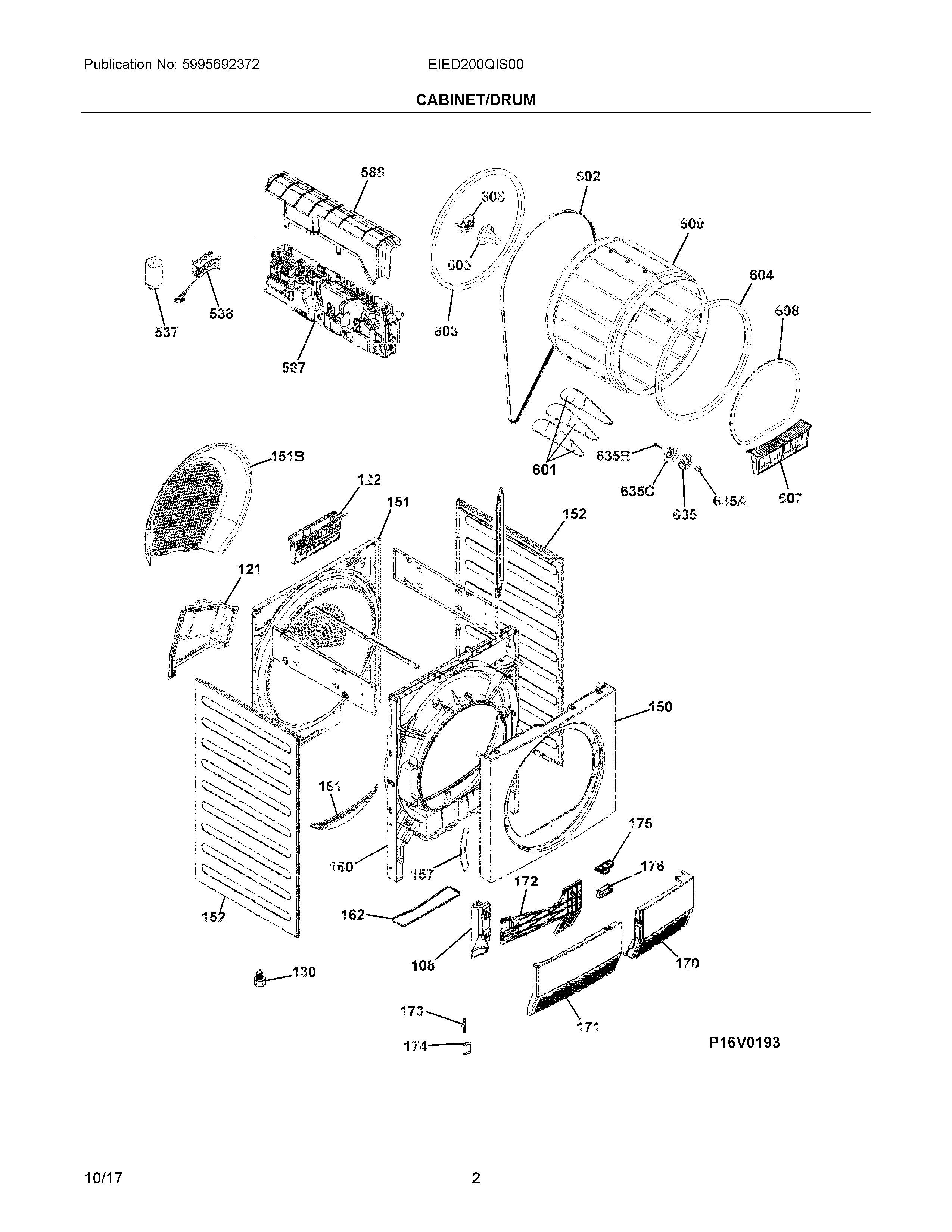

EIED200QIS00 02 – CABINET/DRUM

Products

Position	Product
NI	136608610 Frigidaire Felt
108	HINGE, CONDENSER DOOR
121	COVER, HEATING ELEMENT
122	136602703 Frigidaire Grating
130	899647060471 Frigidaire Leg
150	WCI 136600330
151	136600571 Frigidaire PANEL
151B	136604000 Frigidaire BULKHEAD
152	PANEL, SIDE, SILVER, INSULATION
157	COVER PLATE, DOOR LOCK, SILVER
160	DUCT, AIR, FRONT, LAMP
161	136605801 Frigidaire Support
162	136606100 Frigidaire Gasket
170	136655105 Frigidaire COVER
171	136655010 Frigidaire DOOR
172	DOOR, INNER, GREY, SUPPORT
173	112331110 Frigidaire Hinge Pin
174	136608100 Frigidaire Spring
175	BUTTON, DOOR, SILVER
176	SUPPORT, BUTTON, DOOR
537	808089303 Frigidaire Filter
538	A01517002 Frigidaire Terminal Block
587	97391609816700 Frigidaire Board
588	COVER, MAIN BOARD, WHITESHARK
600	136603050 Frigidaire Drum
601	VANE, DRUM, 298.3MM, GREY
602	809183801 Frigidaire Belt
603	136424300 Frigidaire Gasket
604	136808930 Frigidaire Gasket
605	136655401 Frigidaire Cone
606	136623702 Frigidaire Cone
607	136601901 Frigidaire Filter
608	GASKET,LG OPENING,FRONT
635	807787702 Frigidaire Roller
635B	124022201 Frigidaire Bolt
635C	809166602 Frigidaire Cover
635A	125425004 Frigidaire Bushing
