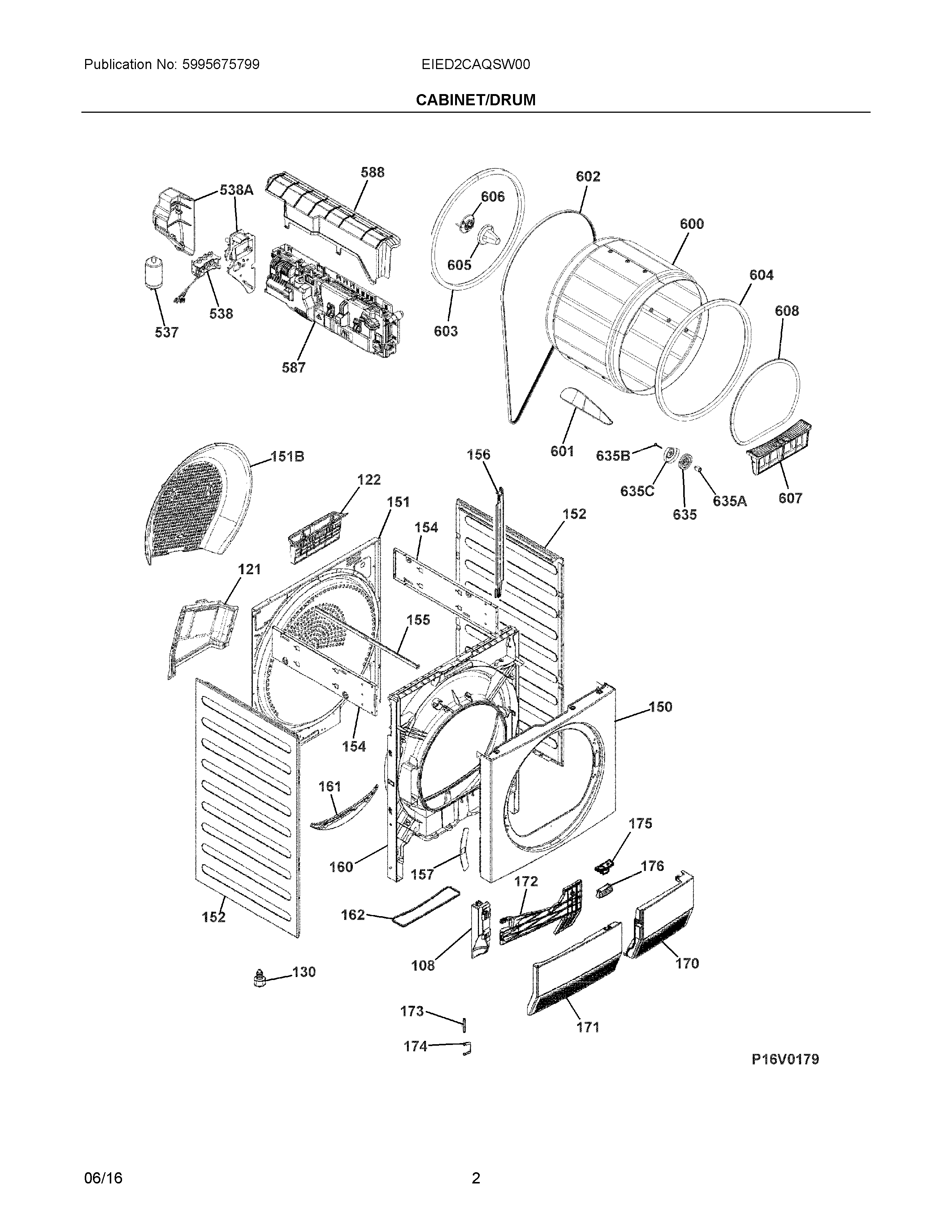

EIED2CAQSW00 02 – CABINET/DRUM

EIED2CAQSW00 02 – CABINET/DRUM

Written by

in

EIED2CAQSW00 02 – CABINET/DRUM

Products

PositionProduct
NI5304505408 Frigidaire Cord
NI136608610 Frigidaire Felt
108136655202 Frigidaire Hinge
121COVER, HEATING ELEMENT
122136602703 Frigidaire Grating
130899647060471 Frigidaire Leg
150136436000 Frigidaire PANEL
151136600571 Frigidaire PANEL
151B136604000 Frigidaire BULKHEAD
1525304526177 Frigidaire Side Panel
154WCI 136601501
155WCI 136601600
156WCI 136604604
157136608900 Frigidaire Cover Plate
160WCI 136600436
161136605801 Frigidaire Support
162136606100 Frigidaire Gasket
170136655101 Frigidaire Cover
171DOOR, OUTER, WHITE, PLINTH
172136655501 Frigidaire Door
173112331110 Frigidaire Hinge Pin
174136608100 Frigidaire Spring
175BUTTON, DOOR, WHITE
176WCI 136602300
537808089303 Frigidaire Filter
538AWCI 809167003
538A01517003 Frigidaire Terminal Block
58797391609755200 Frigidaire Board
588COVER, MAIN BOARD, WHITESHARK
600136603050 Frigidaire Drum
601VANE, DRUM, 298.3MM, GREY
602809183801 Frigidaire Belt
603136424300 Frigidaire Gasket
604136808930 Frigidaire Gasket
605136655401 Frigidaire Cone
606136623702 Frigidaire Cone
607136601901 Frigidaire Filter
608GASKET,LG OPENING,FRONT
635A125425004 Frigidaire Bushing
635B124022201 Frigidaire Bolt
635807787702 Frigidaire Roller
635CWCI 809166601
