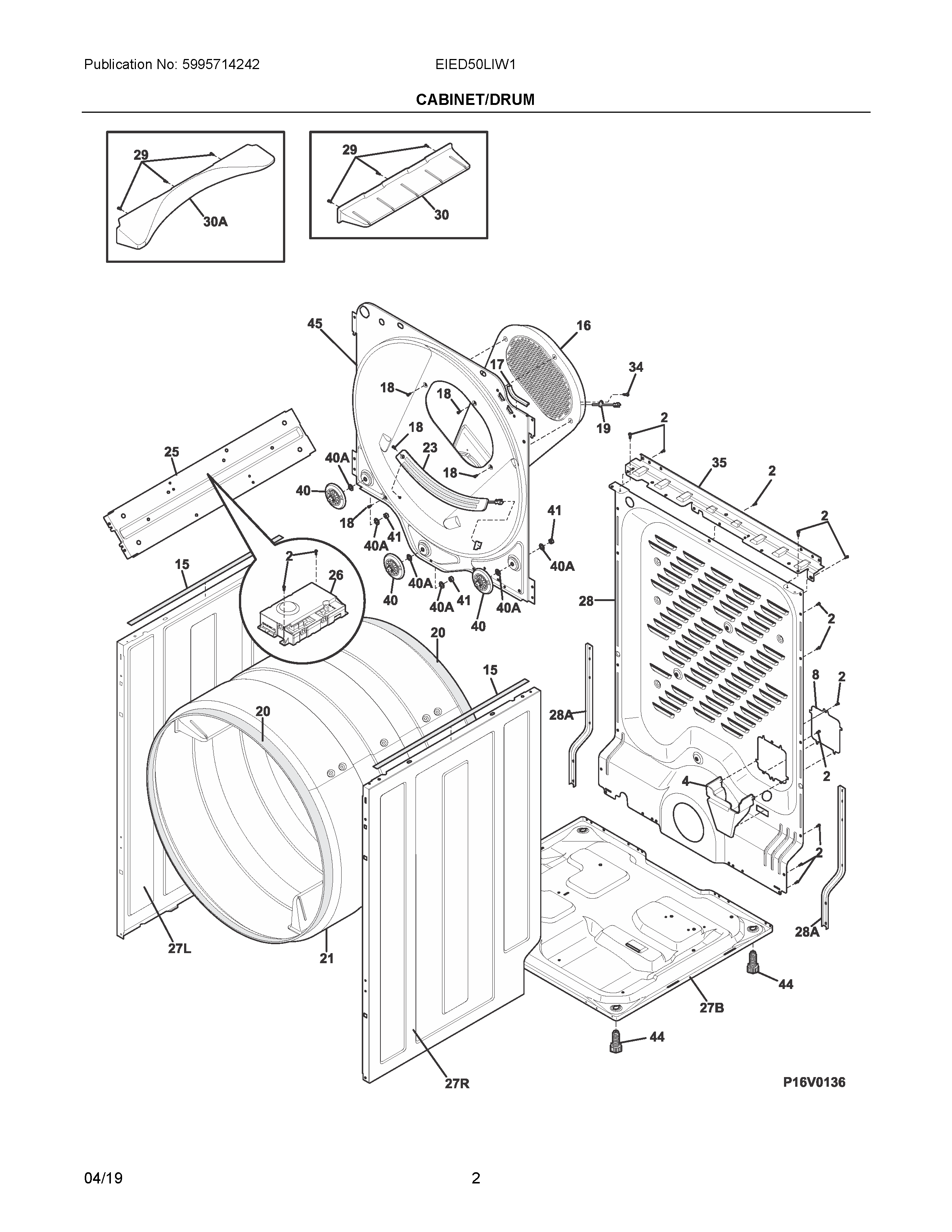

EIED50LIW1 02 – CABINET/DRUM

Products

Position	Product
NIA	134930800 Frigidaire Harness
NIA	WCI 137360810
NI	BRACE, SIDE PANEL
NIA	134716200 Frigidaire Retainer
NIA	5308027429 Frigidaire Dryer High Temperature Adhesive
4	134792100 Frigidaire Bracket
8	137578600 Frigidaire Cover
15	137031800 Frigidaire Cushion
16	5304508449 Frigidaire Washer Dryer Air Duct
17	134792900 Frigidaire Protector
18	131168200 Frigidaire Dryer Screw
19	134711200 Frigidaire Washer Thermistor
20	137565300 Frigidaire Seal
21	137610700 Frigidaire Drum
23	134786110 Frigidaire Moisture Sensor
25	137567001 Frigidaire Bracket Assembly
26	809160308 Frigidaire Control Board Assembly
27L	134712610 Frigidaire Panel
27R	PANEL, RIGHT SIDE, WHITE
27B	134690203 Frigidaire Base
28A	137029801 Frigidaire Bracket Assembly
28	PANEL, BACKSHEET, REAR VENTED
29	131205100 Frigidaire Screw
30A	VANE, MIXING, SMOOTH
30	137610610 Frigidaire Vane
34	131243700 Frigidaire Screw
35	WCI 134713100
40A	134716700 Frigidaire Washer
40	5304523155 Frigidaire Washer Kit
41	134716800 Frigidaire Nut
44	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
45	137556623 Frigidaire Bulkhead
