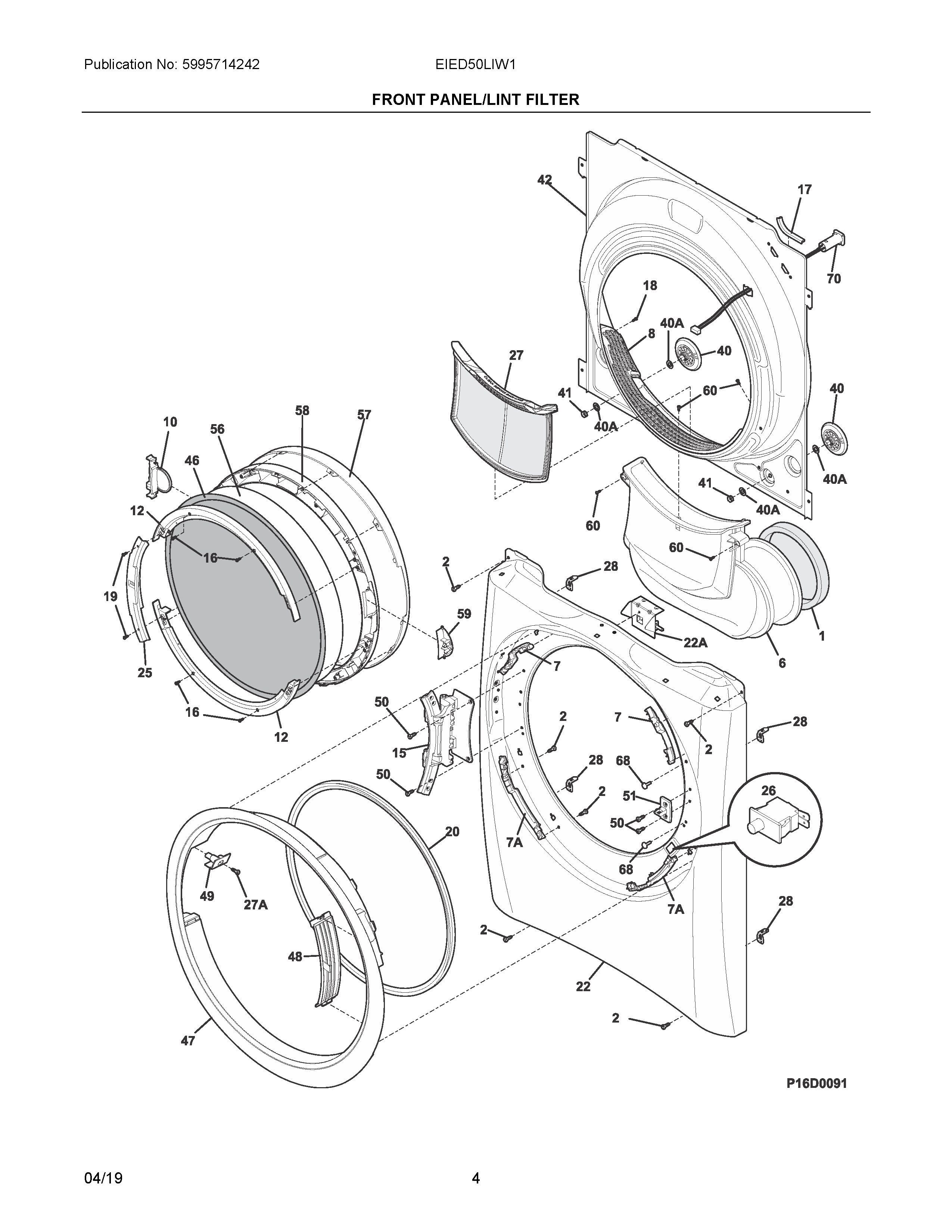

EIED50LIW1 03 – FRONT PANEL/LINT FILTER

EIED50LIW1 03 – FRONT PANEL/LINT FILTER

Written by

in

EIED50LIW1 03 – FRONT PANEL/LINT FILTER

Products

PositionProduct
NIA5308027429 Frigidaire Dryer High Temperature Adhesive
NIAWCI 137555201
NIA137380600 Frigidaire Screw – M5 x 0.8
NIA134793200 Frigidaire Harness
NIA134716200 Frigidaire Retainer
1134784700 Frigidaire Seal Assembly
6DUCT, AIR
7137046800 Frigidaire Bracket
7A137046700 Frigidaire Bracket
8LINT HOUSING COVER
10WCI 134933900
12134696902 Frigidaire FRAME
15134704600 Frigidaire Hinge
16134788000 Frigidaire Screw
17134792900 Frigidaire Protector
18131168200 Frigidaire Dryer Screw
19134790400 Frigidaire Screw
20137553000 Frigidaire Dryer Gasket-Door
22WCI 137553710
22A137577320 Frigidaire Lock
25137538802 Frigidaire Door Latch
26134813600 Frigidaire Dryer Door Switch
27137623900 Frigidaire Lint Filter
27A134790600 Frigidaire Screw
28137034500 Frigidaire Clip
405304523155 Frigidaire Washer Kit
40A134716700 Frigidaire Washer
41134716800 Frigidaire Nut
42BULKHEAD, PANEL, FRONT
46GASKET, DOOR GLASS
475304505715 Frigidaire Trim Ring
48COVER, TRIM RING
49134651200 Frigidaire Retainer
50131302800 Frigidaire Drum Vane Screw
51137459300 Frigidaire Striker
56137576000 Frigidaire Glass
57137067900 Frigidaire Outer Lens Assembly
58137604200 Frigidaire Panel
59134931500 Frigidaire Cover
60134430300 Frigidaire Screw
68134742000 Frigidaire Plug
70137526000 Frigidaire LED Lamp
