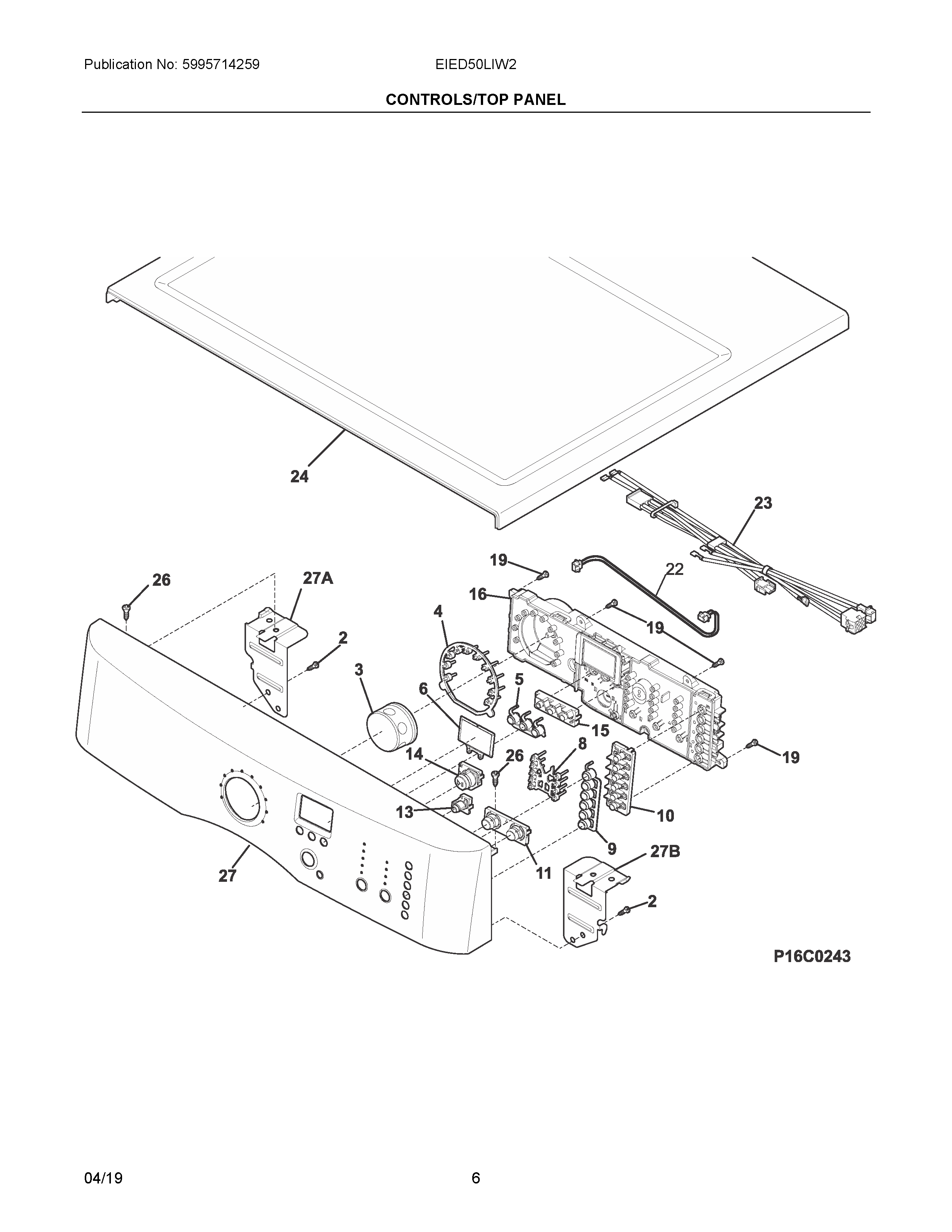

EIED50LIW2 04 – CONTROLS/TOP PANEL

EIED50LIW2 04 – CONTROLS/TOP PANEL

Written by

in

EIED50LIW2 04 – CONTROLS/TOP PANEL

Products

PositionProduct
NIA137150200 Frigidaire Terminal
NIA134926600 Frigidaire Damper
2131168200 Frigidaire Dryer Screw
3WCI 134766500
4PIPE, KNOB LIGHT
5134872100 Frigidaire Ring
6134767700 Frigidaire Lens
8PIPE, MODIFIER LIGHT, GROUP 2&3
9RING, OPTION BUTTON, LIGHT
10BUTTON, OPTION
11BUTTON, MODIFIER, BUTTON 2 & 3
13137032000 Frigidaire BUTTON
14137015900 Frigidaire Button
15137031900 Frigidaire Button
16CONTROL BOARD, UI W/HOUSING
19134402900 Frigidaire Screw
22134790700 Frigidaire Harness
23HARNESS, MAIN,
24134638510 Frigidaire Washer Dryer Top Panel
26131205100 Frigidaire Screw
27B134711000 Frigidaire Bracket
27A134710900 Frigidaire Bracket Assembly
27PANEL, CONTROL. DEC, WHITE
