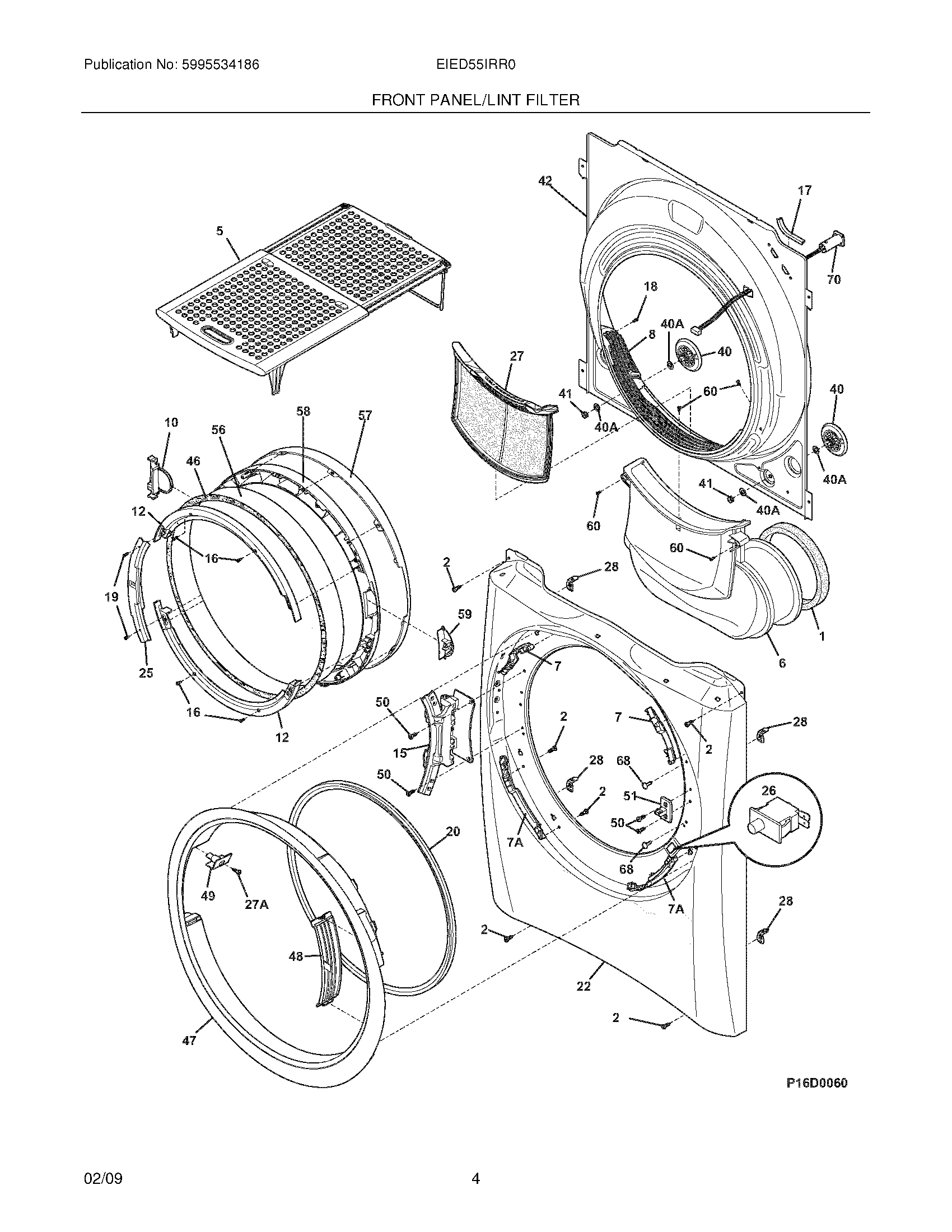

EIED55IRR0 05 – FRONT PANEL/LINT FILTER

Products

Position	Product
NI	5308027429 Frigidaire Dryer High Temperature Adhesive
NI	134716200 Frigidaire Retainer
NI	134793200 Frigidaire Harness
NI	137380600 Frigidaire Screw – M5 x 0.8
1	134784700 Frigidaire Seal Assembly
2	131168200 Frigidaire Dryer Screw
5	WCI 7134912700
6	WCI 7134708300
7A	137046700 Frigidaire Bracket
7	137046800 Frigidaire Bracket
8	WCI 7134700900
10	WCI 7134933900
12	134696901 Frigidaire Frame
15	134704600 Frigidaire Hinge
16	134788000 Frigidaire Screw
17	134792900 Frigidaire Protector
19	134790400 Frigidaire Screw
20	137553000 Frigidaire Dryer Gasket-Door
22	WCI 7134696330
25	137538802 Frigidaire Door Latch
26	WCI 7131843160
27	134793600 Frigidaire Dryer Lint Screen Filter
27A	134790600 Frigidaire Screw
28	137034500 Frigidaire Clip
40A	134716700 Frigidaire Washer
40	5304523155 Frigidaire Washer Kit
41	134716800 Frigidaire Nut
42	137556105 Frigidaire Bulkhead
46	WCI 7134934900
47	5304505715 Frigidaire Trim Ring
48	134618900 Frigidaire Cover
49	134651200 Frigidaire Retainer
50	WCI 7131303300
51	137459300 Frigidaire Striker
56	137576000 Frigidaire Glass
57	WCI 7134932900
58	WCI 7134697200
59	134931500 Frigidaire Cover
60	134430300 Frigidaire Screw
68	134742002 Frigidaire Plug
70	WCI 7134695000
