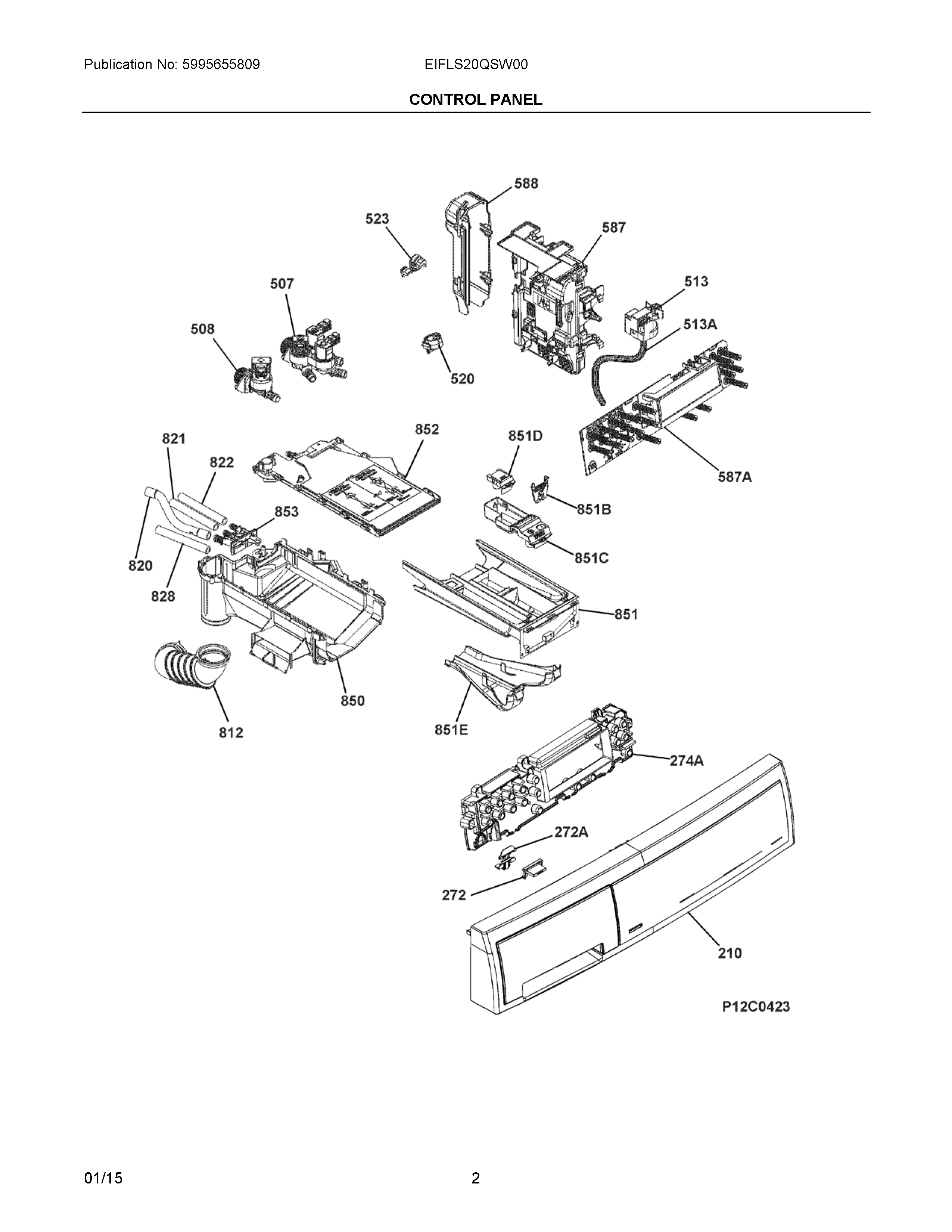

EIFLS20QSW00 02 – CONTROL PANEL

Products

Position	Product
NI	A01245801 Frigidaire Harness
NI	WCI 519092015
NI	5304526694 Frigidaire Hose
NI	A01245701 Frigidaire Harness
NI	A01245601 Frigidaire Harness
NI	A01245501 Frigidaire Wiring Harness
NI	A01208401 Frigidaire Cable
NI	132315920 Frigidaire Clamp
NI	132315970 Frigidaire Clamp
NI	539151026 Frigidaire Clip
NI	WCI 5028610800
NI	WCI 516230907
NI	A01245901 Frigidaire Harness
NI	A01246101 Frigidaire Harness
NI	A01246201 Frigidaire Harness
NI	A01246301 Frigidaire Harness
NI	A01246501 Frigidaire Harness
NI	A01246601 Frigidaire Washer Wiring Harness
NI	CLAMP, HOSE, D 20, 5
NI	CLAMP, HOSE, D40
210	WCI A01489203
272	136658511 Frigidaire Button
272A	136658601 Frigidaire Spring
274A	136659600 Frigidaire Diffuser
507	132518842 Frigidaire Washer Valve
508	132744701 Frigidaire Valve
513A	132642371 Frigidaire Tube
513	379221604 Frigidaire Pressure Switch
520	WCI 132766700
523	DUCT, POWER CABLE, UL
587A	A10066602 Frigidaire PC Board Assembly
587	97391453500000 Frigidaire Control
588	807021101 Frigidaire Protection
812	WCI 132540400
820	WCI 124734271
821	WCI 132608320
822	WCI 132118660
828	132502480 Frigidaire Tube
850	132640843 Frigidaire Dispenser
851B	132767801 Frigidaire Flap
851D	809169801 Frigidaire SYPHON
851E	132507601 Frigidaire Conveyor
851C	809169901 Frigidaire Syphon
851	132507511 Frigidaire Drawer
852	132507112 Frigidaire Distributor
853	DISTRIBUTOR, WATER, BACK, PIPE UNION
