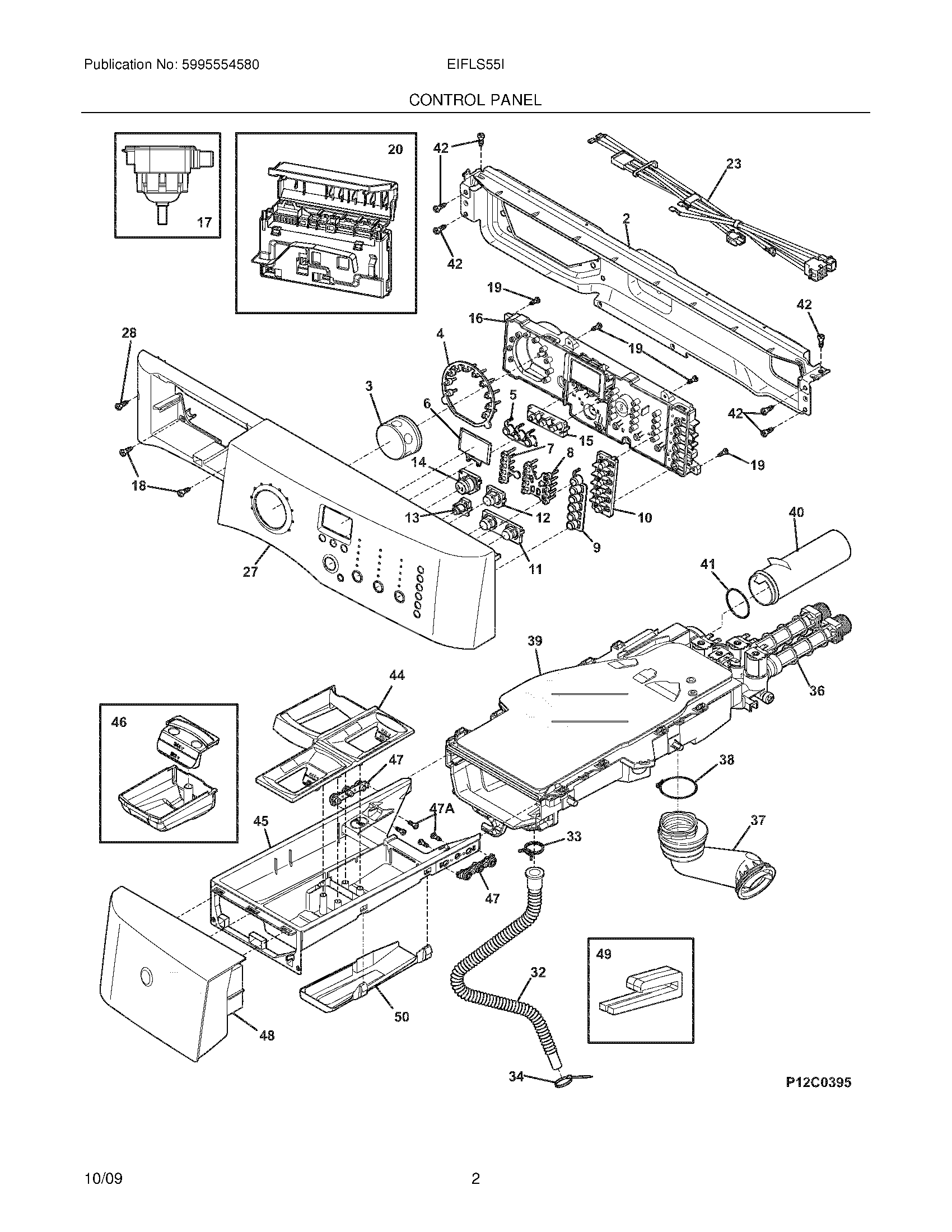

EIFLS55IMB0 03 – CONTROL PANEL

Products

Position	Product
NI	134178901 Frigidaire Screw
NI	134371300 DISPENSER TO VALVE GASKET
NI	WCI 137022810
2	134887400 Frigidaire Bracket
3	WCI 134766500
4	PIPE, KNOB LIGHT
5	134872100 Frigidaire Ring
6	134767700 Frigidaire Lens
7	PIPE, MODIFIER LIGHT, GROUP 1
8	PIPE, MODIFIER LIGHT, GROUP 2&3
9	RING, OPTION BUTTON, LIGHT
10	BUTTON, OPTION
11	BUTTON, MODIFIER, BUTTON 2 & 3
12	BUTTON, MODIFIER, BUTTON 1
13	137032000 Frigidaire BUTTON
14	137015900 Frigidaire Button
15	137031900 Frigidaire Button
16	809020008 Frigidaire Ui Board Assembly
17	134762010 Frigidaire Washer Switch
18	131302800 Frigidaire Drum Vane Screw
19	134402900 Frigidaire Screw
20	809019911 Frigidaire Control Assembly
23	WCI 134922900
27	WCI 137249215
28	131302901 Frigidaire Screw
32	134625500 Frigidaire Hose
33	134737300 Frigidaire Clamp
34	5304464772 Frigidaire Refrigerator Wire Tie
36	WATER VALVE W/O THERMISTER
37	134625700 Frigidaire Hose
38	134372400 Frigidaire Clamp
39	WCI 137108710
40	WCI 134372100
41	134372200 Frigidaire O-Ring
42	131168200 Frigidaire Dryer Screw
44	WCI 134638310
45	WCI 134638200
46	137143800 Frigidaire Cup
47	WCI 134657100
47A	WCI 134654500
48	137440407 Frigidaire Dispenser Drawer Assembly
49	137105200 Frigidaire Guide
50	WCI 134638400
