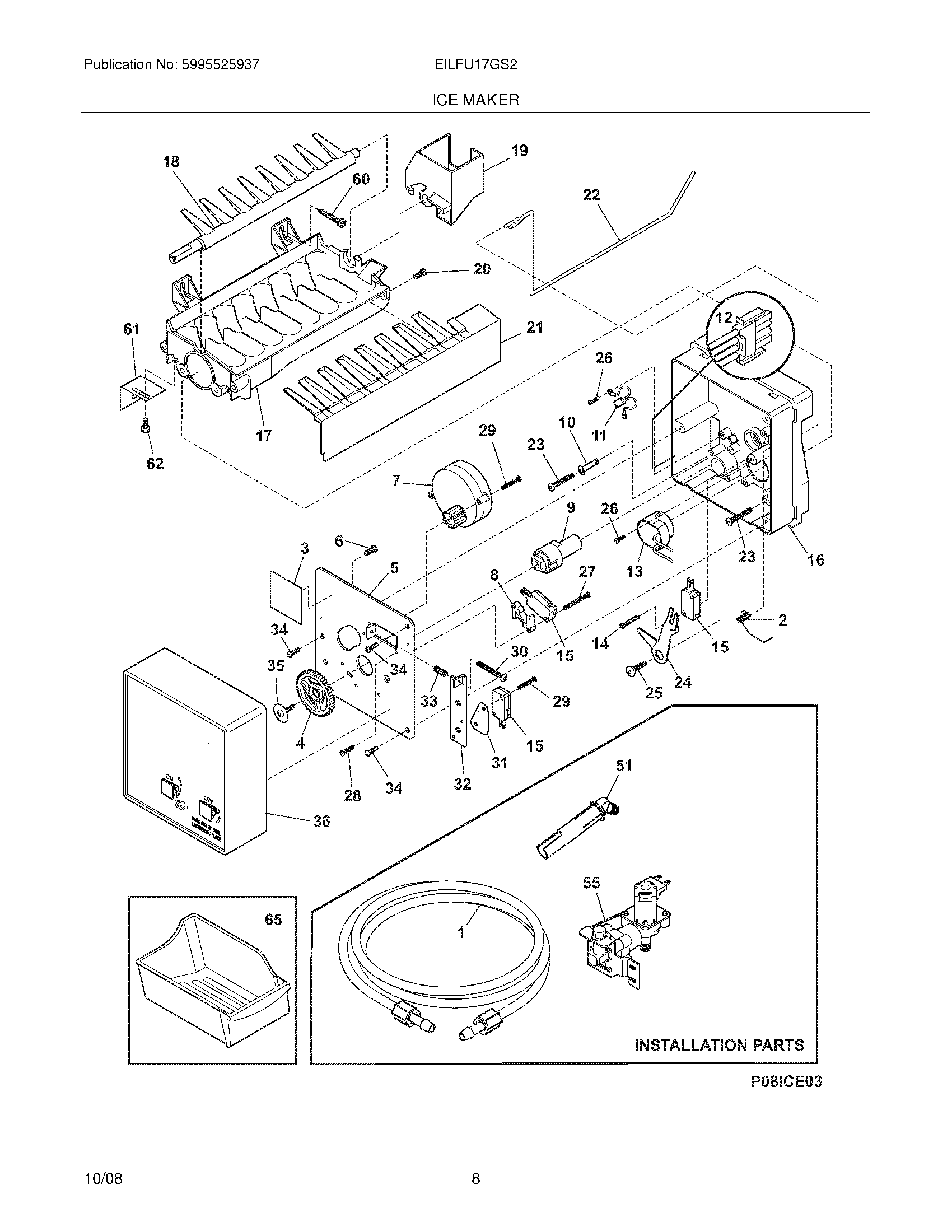

EILFU17GS2 09 – ICE MAKER

Products

Position	Product
NI	WCI 7240352602
NI	WCI 7241642601
NI	5304456690 Frigidaire LABEL
NI	240561701 Frigidaire Refrigerator Seal
NI	WCI 75304456688
NI	WCI 75304456666
NI	5304445223 Frigidaire SPRING BEAM
NI	5304456692 Frigidaire Refrigerator Washer
NI	5304456693 Frigidaire Refrigerator Nut
NI	241806601 Frigidaire Refrigerator Water Connector
NI	5304480709 Frigidaire Refrigerator Icemaker Assembly
1	WCI 7297044901
2	WCI 75304456650
3	5304456657 Frigidaire Ice Maker Label
4	5304469403 Frigidaire Gear
5	5304456659 Frigidaire Refrigerator Plate-Mounting
6	WCI 75304456691
7	241798231 Frigidaire Refrigerator Ice Maker Assembly
8	WCI 75304456661
9	WCI 75304456662
10	5304456689 Frigidaire Refrigerator Washer
11	WCI 75304456663
12	5304456664 Frigidaire Refrigerator Wiring Harness
13	5304456665 Frigidaire Refrigerator Thermostat
14	WCI 75304455676
15	5304456667 Frigidaire Refrigerator Micro Switch
16	5304456668 Frigidaire Refrigerator Support
18	WCI 75304456670
20	5304480396 Frigidaire Screw
22	WCI 75304456673
23	5304456674 Frigidaire Screw
24	5304456675 Frigidaire Refrigerator Lever Arm
25	WCI 75304456676
26	5304455680 Frigidaire Refrigerator Screw
27	WCI 75304456677
28	5304456660 Frigidaire Screw
29	5304456678 Frigidaire Screw
30	5304456679 Frigidaire Timing Adjustment Screw
31	WCI 75304456680
32	5304456681 Frigidaire Plate-VALVE SWITCH
33	WCI 75304456682
34	241679901 Frigidaire Refrigerator Screw
35	5304456684 Frigidaire Screw
36	WCI 75304456685
55	WCI 7240519601
60	5304455852 Frigidaire Refrigerator Screw
61	218721500 Frigidaire Refrigerator Bracket-Leveling
62	WCI 75304456687
65	240385201 Frigidaire Refrigerator Ice Container
