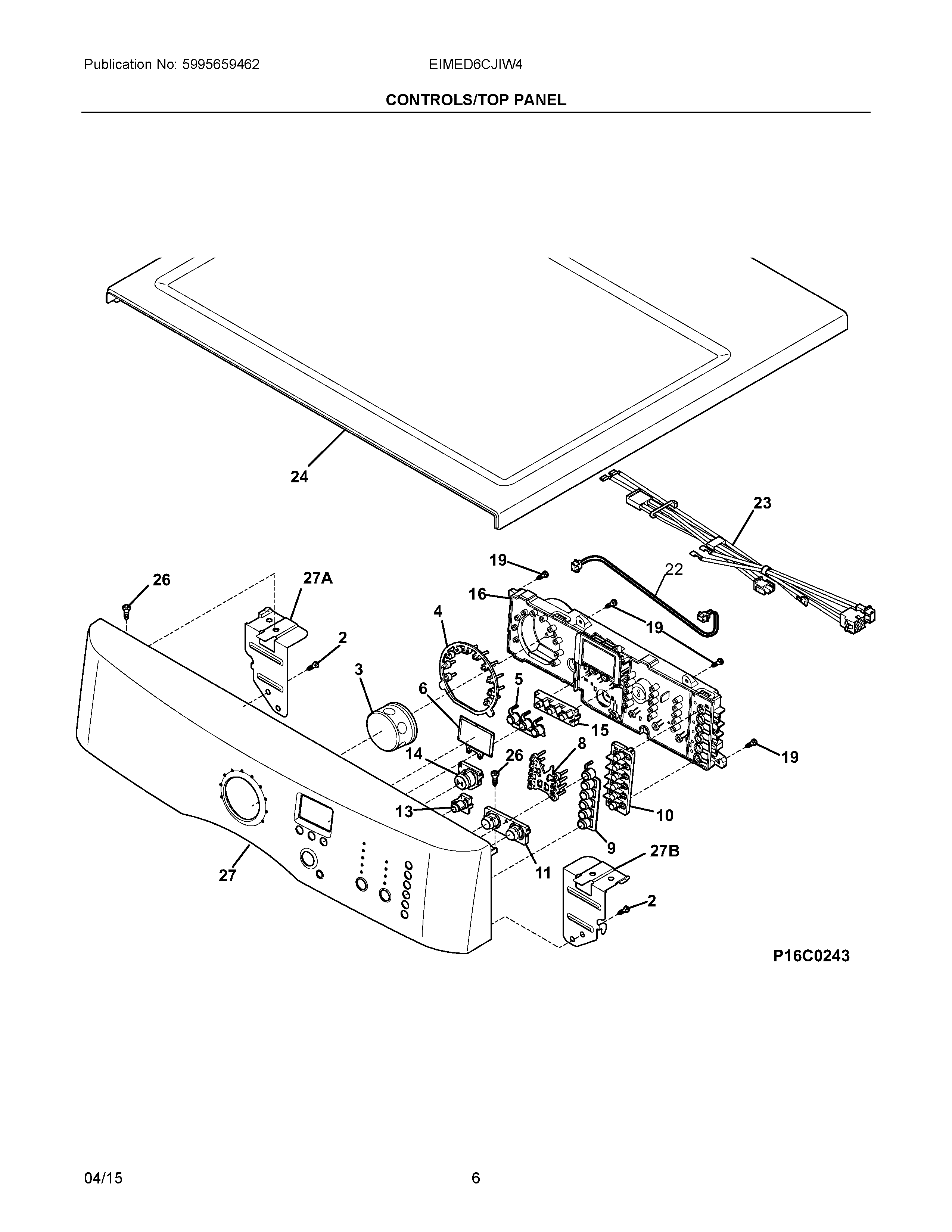

EIMED6CJIW4 04 – CONTROLS/TOP PANEL

EIMED6CJIW4 04 – CONTROLS/TOP PANEL

Written by

in

EIMED6CJIW4 04 – CONTROLS/TOP PANEL

Products

PositionProduct
NIA137150200 Frigidaire Terminal
NIA134926600 Frigidaire Damper
2131168200 Frigidaire Dryer Screw
3WCI 134766500
4PIPE, KNOB LIGHT
5134872100 Frigidaire Ring
6134767700 Frigidaire Lens
8PIPE, MODIFIER LIGHT, GROUP 2&3
9RING, OPTION BUTTON, LIGHT
10BUTTON, OPTION
11BUTTON, MODIFIER, BUTTON 2 & 3
13137032000 Frigidaire BUTTON
14137015900 Frigidaire Button
15137031900 Frigidaire Button
16809160407 Frigidaire Board
19134402900 Frigidaire Screw
22134790700 Frigidaire Harness
23WCI 5304500491
24134638510 Frigidaire Washer Dryer Top Panel
26131205100 Frigidaire Screw
27B134711000 Frigidaire Bracket
27A134710900 Frigidaire Bracket Assembly
27WCI 137378211
