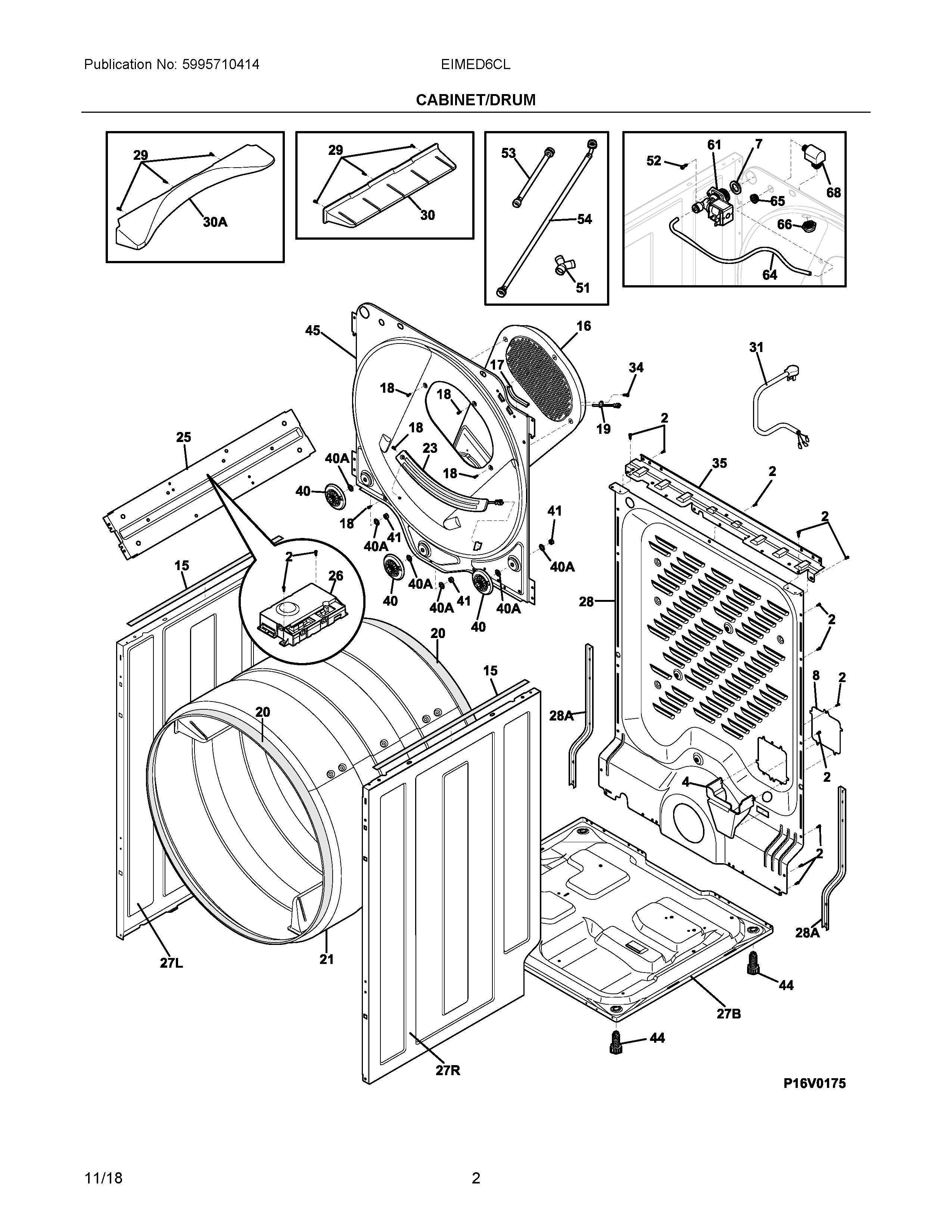

EIMED6CLSS4 02 – CABINET/DRUM

Products

Position	Product
NIA	134930800 Frigidaire Harness
NIA	5308027429 Frigidaire Dryer High Temperature Adhesive
NIA	134716200 Frigidaire Retainer
NI	BRACE, SIDE PANEL
NIA	WCI 137360810
NIB	5304506746 Frigidaire Shield
4	134792100 Frigidaire Bracket
7	5303161296 Frigidaire Washer-Inlet Hose (1Piece)
8	137578600 Frigidaire Cover
15	137031800 Frigidaire Cushion
16	WCI 134711702
17	134792900 Frigidaire Protector
18	131168200 Frigidaire Dryer Screw
19	134711200 Frigidaire Washer Thermistor
20	5304500486 Frigidaire Seal
21	137610710 Frigidaire Drum Assembly
23	134786100 Frigidaire Moisture Sensor
25	137567001 Frigidaire Bracket Assembly
26	809160316 Frigidaire Dryer Control Board
27B	134690203 Frigidaire Base
27R	WCI 134712725
27L	WCI 134712625
28	137560425 Frigidaire Panel
28A	137029801 Frigidaire Bracket Assembly
29	131205100 Frigidaire Screw
30	137610600 Frigidaire Vane
30A	VANE, DRUM, MIXING
31	5304505408 Frigidaire Cord
34	131243700 Frigidaire Screw
35	WCI 134713100
40A	134716700 Frigidaire Washer
40	5304523155 Frigidaire Washer Kit
41	134716800 Frigidaire Nut
44	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
45	137556623 Frigidaire Bulkhead
51	5304500709 Frigidaire Y Hose Adapter Fitting
52	131202300 Frigidaire Screw
53	137471800 Frigidaire Hose
54	5304503984 Frigidaire Kit Assembly
61	LOW PROFILE MIST VALVE
65	137017200 Frigidaire Grommet
66	5304529773 Frigidaire Nozzle Assembly
