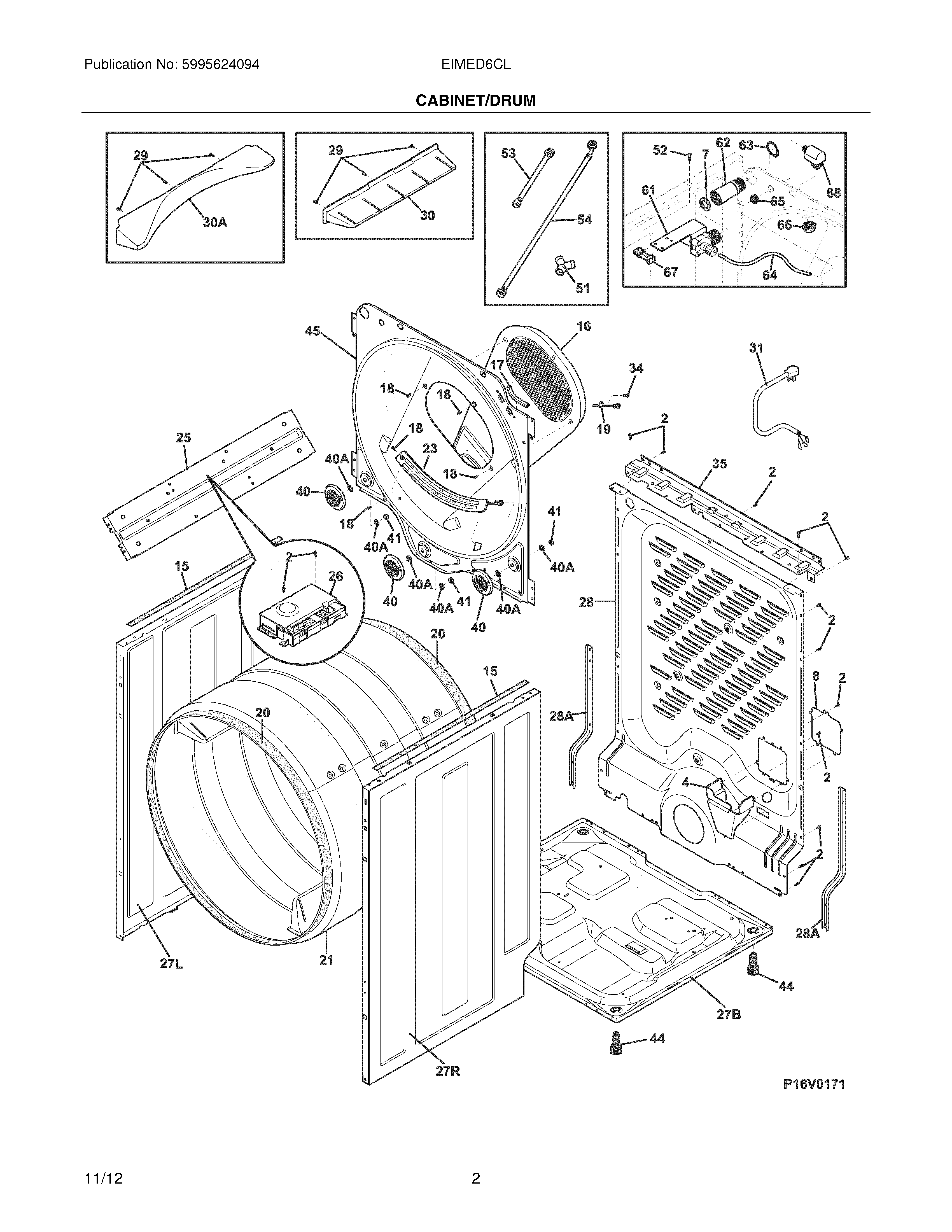

EIMED6CLT0 03 – CABINET/DRUM

Products

Position	Product
NI	134930800 Frigidaire Harness
NI	134716200 Frigidaire Retainer
NI	Strain relief,240 ,pwr cord
NI	WCI 137360810
NI	BRACE, SIDE PANEL
NI	5308027429 Frigidaire Dryer High Temperature Adhesive
4	134792100 Frigidaire Bracket
7	5303161296 Frigidaire Washer-Inlet Hose (1Piece)
8	134694400 Frigidaire Cover
15	137031800 Frigidaire Cushion
16	5304508449 Frigidaire Washer Dryer Air Duct
17	134792900 Frigidaire Protector
18	131168200 Frigidaire Dryer Screw
19	134711200 Frigidaire Washer Thermistor
20	WCI 134705900
21	WCI 134708210
23	134786100 Frigidaire Moisture Sensor
25	137567001 Frigidaire Bracket Assembly
26	809160304 Frigidaire Control Board
27R	PANEL, RIGHT SIDE, TITANIUM
27L	PANEL, LEFT SIDE, TITANIUM
27B	134690203 Frigidaire Base
28A	137029801 Frigidaire Bracket Assembly
28	137560425 Frigidaire Panel
29	131205100 Frigidaire Screw
30A	WCI 137028500
30	137610600 Frigidaire Vane
31	5304505408 Frigidaire Cord
34	131243700 Frigidaire Screw
35	WCI 134713100
40	5304523155 Frigidaire Washer Kit
40A	134716700 Frigidaire Washer
41	134716800 Frigidaire Nut
44	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
45	WCI 134712813
51	5304500709 Frigidaire Y Hose Adapter Fitting
52	131202300 Frigidaire Screw
53	137471800 Frigidaire Hose
54	5304503984 Frigidaire Kit Assembly
61	WCI 137016600
62	WCI 137474500
63	WCI 137016500
64	WCI 137509000
65	137017200 Frigidaire Grommet
66	5304529773 Frigidaire Nozzle Assembly
67	WCI 137017400
