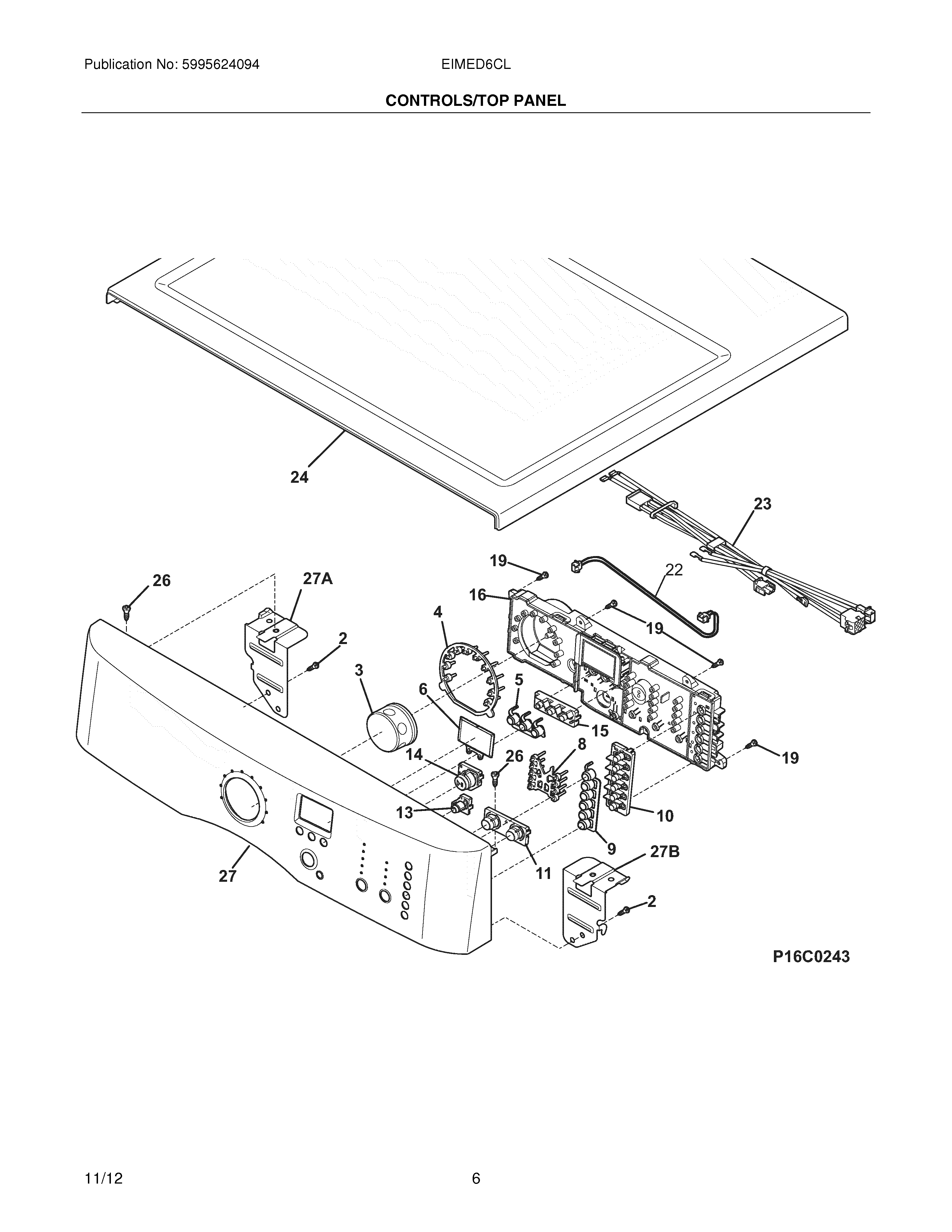

EIMED6CLT2 07 – CONTROLS/TOP PANEL

Products

Position	Product
NI	137150200 Frigidaire Terminal
NI	134926600 Frigidaire Damper
2	131168200 Frigidaire Dryer Screw
3	WCI 134766500
4	PIPE, KNOB LIGHT
5	134872100 Frigidaire Ring
6	134767700 Frigidaire Lens
8	PIPE, MODIFIER LIGHT, GROUP 2&3
9	RING, OPTION BUTTON, LIGHT
10	BUTTON, OPTION
11	BUTTON, MODIFIER, BUTTON 2 & 3
13	137032000 Frigidaire BUTTON
14	137015900 Frigidaire Button
15	137031900 Frigidaire Button
16	809160403 Frigidaire Control Board
19	134402900 Frigidaire Screw
22	134790700 Frigidaire Harness
23	WCI 137242300
24	WCI 134638535
26	131205100 Frigidaire Screw
27B	134711000 Frigidaire Bracket
27A	134710900 Frigidaire Bracket Assembly
27	PANEL, CONTROL CONSOLE, TITANIUM
