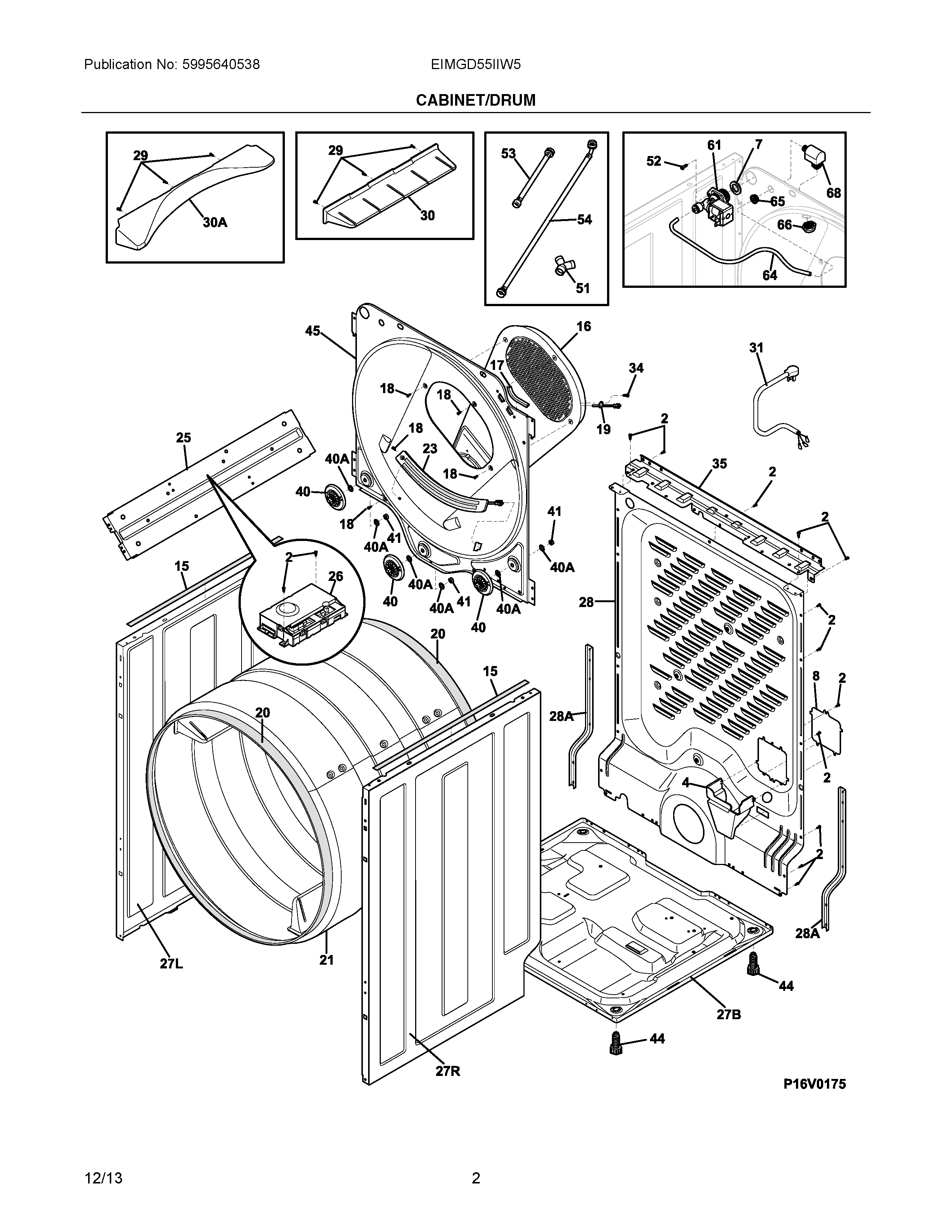

EIMGD55IIW5 02 – CABINET/DRUM

EIMGD55IIW5 02 – CABINET/DRUM

Written by

in

EIMGD55IIW5 02 – CABINET/DRUM

Products

PositionProduct
NIA134930800 Frigidaire Harness
NIA5304438633 Frigidaire Dishwasher Romex Connector
NIA5308027429 Frigidaire Dryer High Temperature Adhesive
NIBRACE, SIDE PANEL
NIA134716200 Frigidaire Retainer
4134792100 Frigidaire Bracket
75303161296 Frigidaire Washer-Inlet Hose (1Piece)
8134694400 Frigidaire Cover
15137031800 Frigidaire Cushion
165304509715 Frigidaire Duct
17134792900 Frigidaire Protector
18131168200 Frigidaire Dryer Screw
19134711200 Frigidaire Washer Thermistor
20137565300 Frigidaire Seal
21137610710 Frigidaire Drum Assembly
23134786100 Frigidaire Moisture Sensor
25137567001 Frigidaire Bracket Assembly
26809160307 Frigidaire Control Board
27RPANEL, RIGHT SIDE, WHITE
27L134712610 Frigidaire Panel
27B134690203 Frigidaire Base
28A137029801 Frigidaire Bracket Assembly
28137560425 Frigidaire Panel
29131205100 Frigidaire Screw
30AVANE, DRUM, MIXING
30137610600 Frigidaire Vane
315304505407 Frigidaire Cord
34131243700 Frigidaire Screw
35WCI 134713100
405304523155 Frigidaire Washer Kit
40A134716700 Frigidaire Washer
41134716800 Frigidaire Nut
44216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
45137556623 Frigidaire Bulkhead
515304500709 Frigidaire Y Hose Adapter Fitting
53137471800 Frigidaire Hose
545304503984 Frigidaire Kit Assembly
61LOW PROFILE MIST VALVE
65137017200 Frigidaire Grommet
665304529773 Frigidaire Nozzle Assembly
67WCI 137017400
