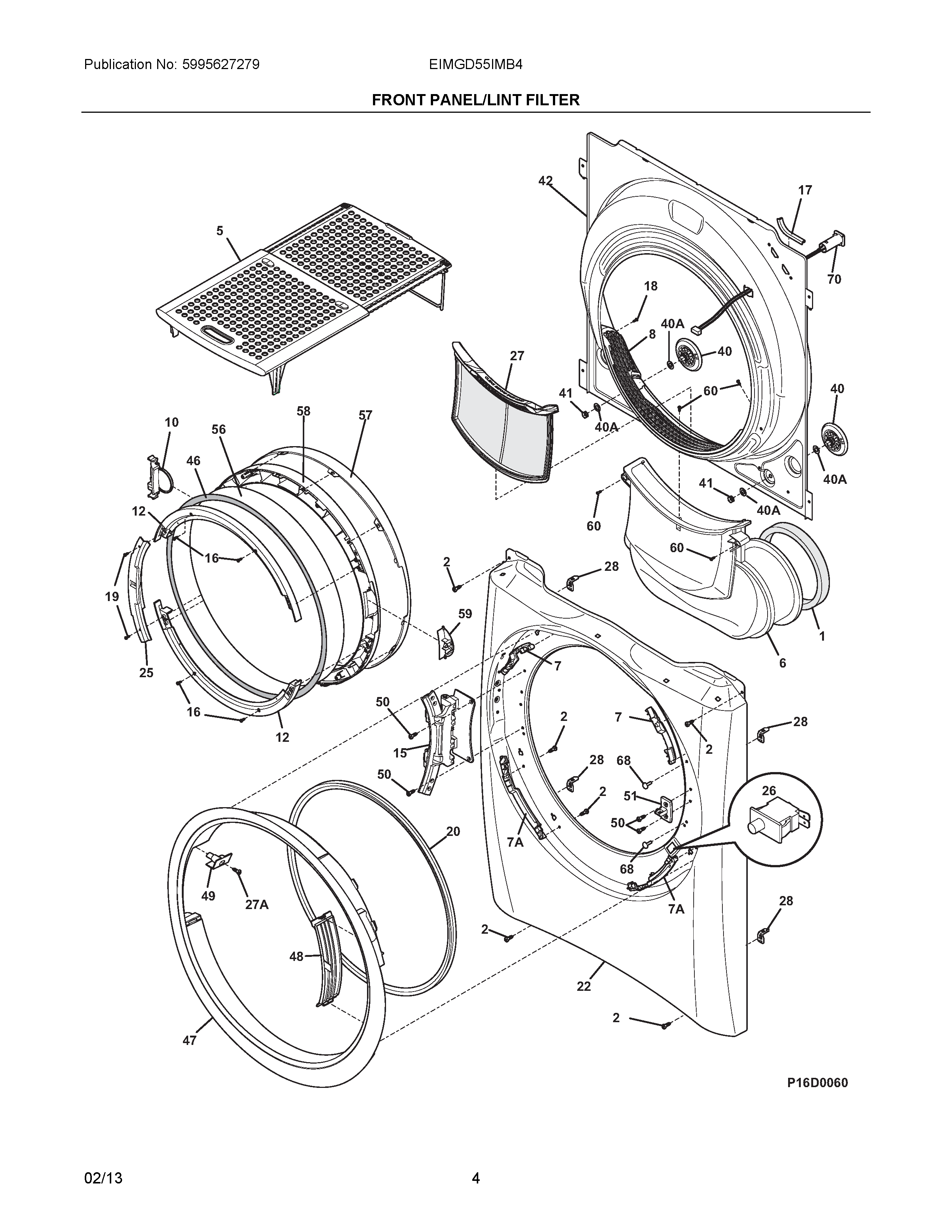

EIMGD55IMB4 03 – FRONT PANEL/LINT FILTER

Products

Position	Product
NIA	5308027429 Frigidaire Dryer High Temperature Adhesive
NIA	134716200 Frigidaire Retainer
NIA	137380600 Frigidaire Screw - M5 x 0.8
NIA	134793200 Frigidaire Harness
1	134784700 Frigidaire Seal Assembly
5	WCI 137453000
6	DUCT, AIR
7	137046800 Frigidaire Bracket
7A	137046700 Frigidaire Bracket
8	COVER, LINT HOUSING
10	WCI 134933900
12	134696901 Frigidaire Frame
15	134704600 Frigidaire Hinge
16	134788000 Frigidaire Screw
17	134792900 Frigidaire Protector
18	131168200 Frigidaire Dryer Screw
19	134790400 Frigidaire Screw
20	137553000 Frigidaire Dryer Gasket-Door
22	WCI 134696315
25	137538802 Frigidaire Door Latch
26	134813660 Frigidaire Switch
27A	134790600 Frigidaire Screw
27	134793600 Frigidaire Dryer Lint Screen Filter
28	137034500 Frigidaire Clip
40	5304523155 Frigidaire Washer Kit
40A	134716700 Frigidaire Washer
41	134716800 Frigidaire Nut
42	137556105 Frigidaire Bulkhead
46	GASKET, DOOR GLASS
47	5304505715 Frigidaire Trim Ring
48	134618900 Frigidaire Cover
49	134651200 Frigidaire Retainer
50	131302800 Frigidaire Drum Vane Screw
51	137459300 Frigidaire Striker
56	137576000 Frigidaire Glass
58	137067900 Frigidaire Outer Lens Assembly
59	134931500 Frigidaire Cover
60	134430300 Frigidaire Screw
68	134742002 Frigidaire Plug
70	137526000 Frigidaire LED Lamp
