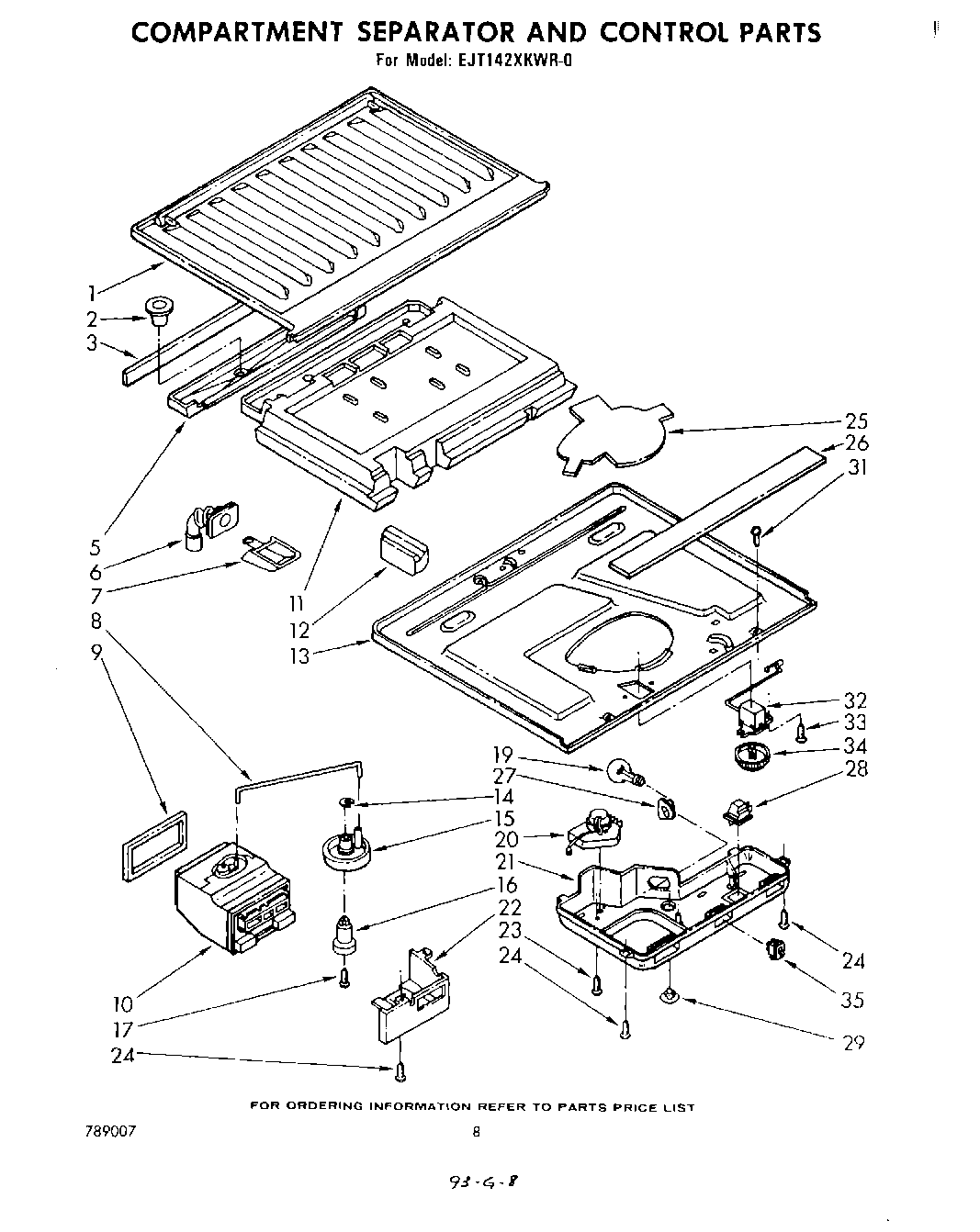

EJT142XKWR0 05 – COMPARTMENT SEPARATOR AND CONTROL

Products

Position	Product
1	Top, Compartment Separator
2	Drain Insert
3	Gasket, Drain Pan
5	Drain Pan
6	Fitting, Drain
7	Cup, Drain
8	Connecting Rod
9	Gasket, Air Diffuser
10	Air Diffuser
11	Insulation, Compartment Separator
12	Rear Corner Block (2)
13	Bottom, Compartment Separator
14	Lockwasher
15	Knob, Air Control
16	Spacer, Knob
17	WP488163 Whirlpool Refrigerator Screw
19	RANGE ONLY 40W 120V APPL BULB
20	Defrost Timer
21	Box, Control
22	Cover, Air Diffuser
23	WP487353 Whirlpool Refrigerator Screw
24	W11624204 Whirlpool Screw
25	Heat Shield
26	Center Rail, Seal Strip
27	4387478 Whirlpool Refrigerator Light Socket
28	W11384469 Whirlpool Door Switch
29	940014 Whirlpool Refrigerator Primary Button Plug
32	WP819470 Whirlpool Refrigerator Thermostat
33	Screw, 8 x 3/8
34	Knob, Thermostat
35	WP938213 Whirlpool Refrigerator Power Switch
