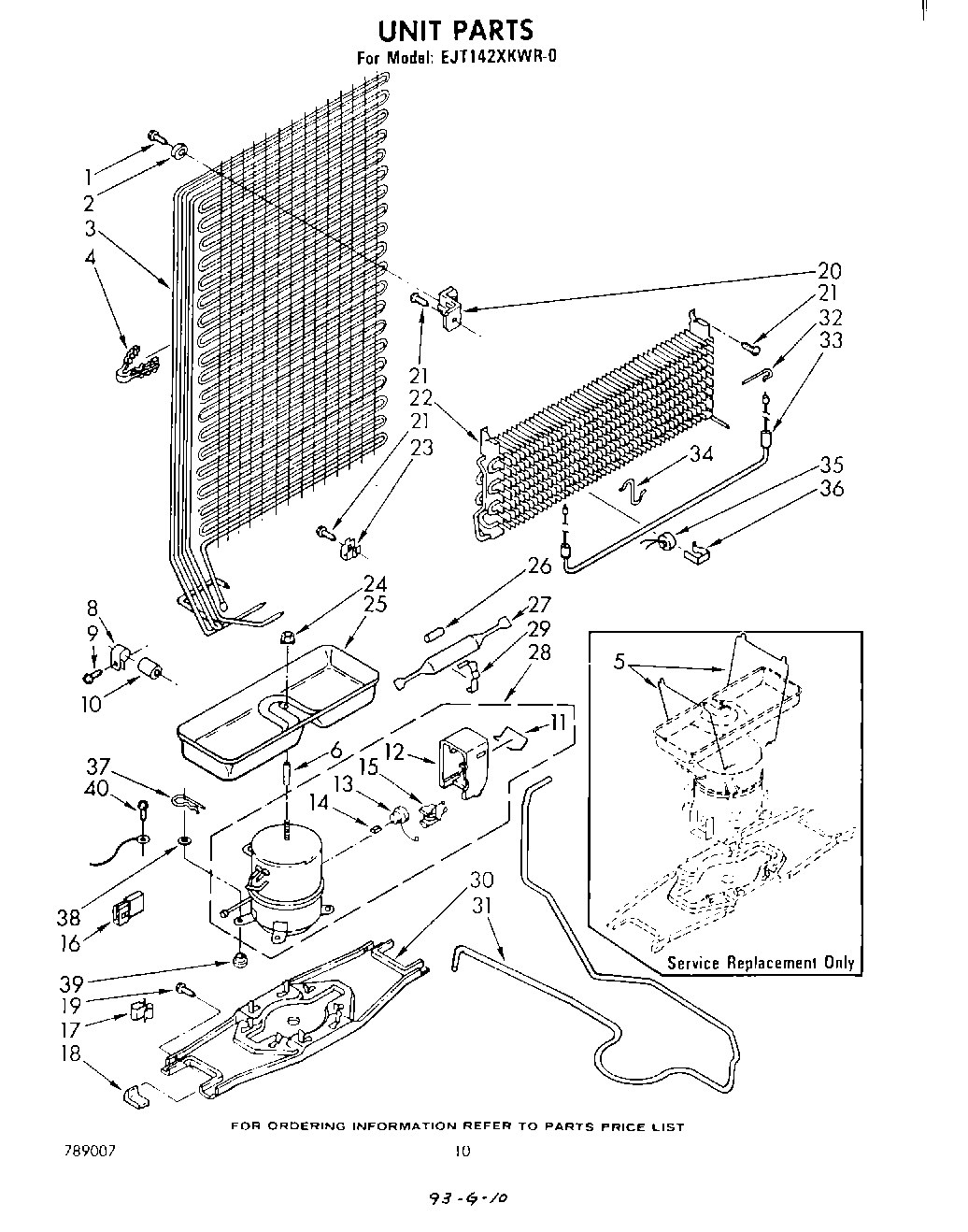

| 1 | Screw, 8 x 7/8 |
| 2 | Bumper, Rubber |
| 3 | Condenser & Precooler Assembly |
| 4 | Clip, Tube (2) |
| 5 | retainer, drain pan (2) (service replacement only) |
| 6 | Spacer |
| 8 | Clamp Tube |
| 9 | WPW10141625 Whirlpool Refrigerator Screw Assembly |
| 10 | dampener |
| 11 | Spring |
| 12 | Case, Relay |
| 13 | Overload |
| 14 | Bumper |
| 15 | Relay (Alternate) |
| 16 | WP717253 Whirlpool Dishwasher Connector |
| 17 | W10812038 Whirlpool Refrigerator Clip |
| 18 | support grommet (2) |
| 19 | 489340 Whirlpool Refrigerator Screw |
| 20 | Condenser Bracket (Top) |
| 21 | WP489069 Whirlpool Compactor Screw |
| 22 | Evaporator |
| 23 | Clip, Condenser Mounting (2) |
| 24 | WP487939 Whirlpool Refrigerator Nut |
| 25 | Tray, Evaporator |
| 26 | Restrictor Sleeve |
| 27 | W10843121 Whirlpool Refrigerator Tube |
| 28 | Compressor Kit (Includes Items 4, 5, 8, 9 & 10) |
| 29 | Drier Clamp |
| 30 | Unit, Frame |
| 31 | Heat Exchanger |
| 32 | Clip, Heater (2) |
| 33 | Heater, Defrost |
| 34 | Support, Heater |
| 35 | WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat |
| 36 | Clamp |
| 37 | clip (4) |
| 38 | slotted washer (4) |
| 39 | Grommet (4) |
| 40 | 978027 Whirlpool Refrigerator Primary Valve |
| 40 | VALVE, ACCESS (5/8``) |
| 40 | 978030 Whirlpool Refrigerator Valve |
| 40 | 978026 Whirlpool Refrigerator Primary Valve |
| 40 | WP978025 Whirlpool Refrigerator Valve |
| 40 | VALVE, ACCESS (1/2``) |
| 40 | 303776 Whirlpool Dishwasher Screw |
