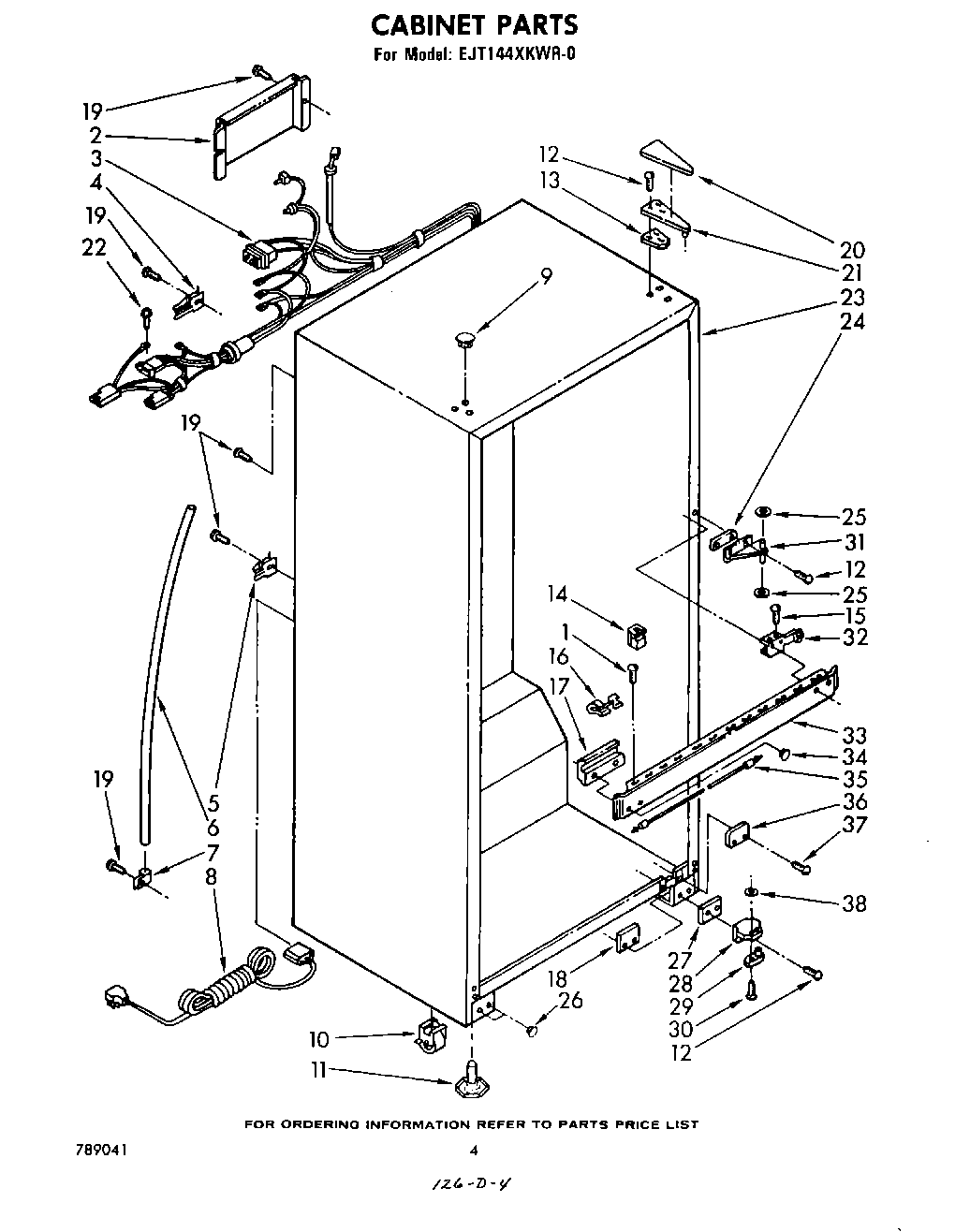

EJT144XKWR0 03 – CABINET

EJT144XKWR0 03 – CABINET

Written by

in

EJT144XKWR0 03 – CABINET

Products

Position	Product
1	WP488729 Whirlpool Refrigerator Door Screw
2	Cover, Wiring
3	Cabinet, Wiring Assembly
4	Clamp
5	549193 Whirlpool Refrigerator Power Clamp
6	8316810 Whirlpool Refrigerator Drain Tube
7	488946 Whirlpool Air Conditioner Clamp
8	Cord, Service
9	Hole Plug (2) (Golden Harvest)
9	Hole Plug (2) (White)
9	Hole Plug (Coffee)
9	Hole Plug (New Avocado)
9	Hole Plug (2) (Almond)
10	Roller, Front & Rear (4)
11	W11117769 Whirlpool Refrigerator Leveler
12	WP999367 Whirlpool Refrigerator Screw
12	Screw (Repair)
13	Shim, Hinge
14	Spacer (2)
16	Breaker, Trim Clip
17	Center, Rail Shim (2)
18	Tap Plate, Bottom
19	W11624204 Whirlpool Screw
20	Hinge Cover (New Avocado)
20	1119787 Whirlpool Refrigerator Hinge Cover
20	Hinge Cover (Golden Harvest)
20	Hinge, Cover (Coffee)
21	Hinge, Top
22	WP489128 Whirlpool Refrigerator Screw
23	Cabinet (Not A Serviceable Part)
24	Shim, Hinge Center
25	WP488296 Whirlpool Washer Refrigerator
26	Plug Button (2) (New Avocado)
26	Plug Button (2) (Coffee)
26	Hole, Plug (2) (Almond)
26	Hole Plug (2) (Golden Harvest)
26	WPL 941416
27	Shim, Bottom Hinge
28	Butt Hinge (Bottom)
29	Hinge Pin, Bottom
30	Screw 10-32 x 5/16
31	Hinge, Center
32	Bracket, Center Rail (2)
33	Center Rail (Golden Harvest)
33	Center Rail (Coffee)
33	Center Rail (Almond)
33	Center Rail (White)
33	Center Rail (New Avocado)
34	WPL 940090
34	Hole Plug (2) (Golden Harvest)
34	Hole Plug (2)
34	Hole Plug (2) (Coffee)
34	Hole Plug (2) (Almond)
35	WPL 938278
36	Tube, Rail Cover (White)
36	Tube, Rail Cover (Golden Harvest)
36	Tube, Rail Cover (Almond)
36	Tube, Rail Cover (Coffee)
36	WPL 935710
37	Screw
38	WP487576 Whirlpool Washer
