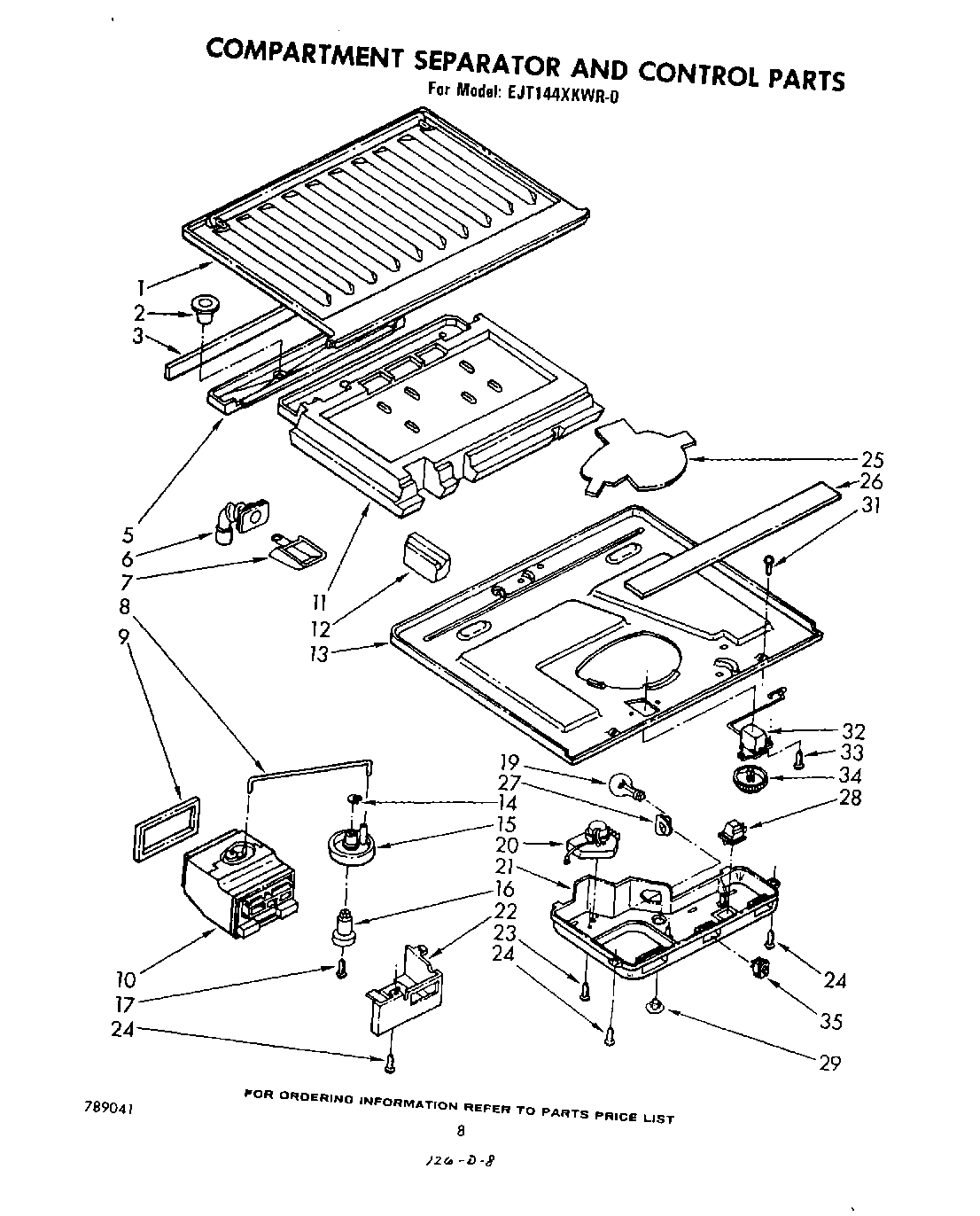

EJT144XKWR0 05 – COMPARTMENT SEPARATOR AND CONTROL

Products

PositionProduct
1Top, Compartment Separator
2Drain Insert
3Gasket, Drain Pan
5Drain Pan
6Fitting, Drain
7Cup, Drain
8Connecting Rod
9Gasket, Air Diffuser
10Air Diffuser
11Insulation, Compartment Separator
12Rear Corner Block (2)
13Bottom, Compartment Separator
14Lockwasher
15Knob, Air Control
16Spacer, Knob
17WP488163 Whirlpool Refrigerator Screw
19W11679940 Whirlpool Refrigerator Light Bulb Assembly
20Defrost Timer
21Box, Control
22Cover, Air Diffuser
23WP487353 Whirlpool Refrigerator Screw
24W11624204 Whirlpool Screw
25Heat Shield
26Center Rail, Seal Strip
274387478 Whirlpool Refrigerator Light Socket
28W11384469 Whirlpool Door Switch
29940014 Whirlpool Refrigerator Primary Button Plug
32WP819470 Whirlpool Refrigerator Thermostat
33Screw, 8 x 3/8
34Knob, Thermostat
35WP938213 Whirlpool Refrigerator Power Switch
