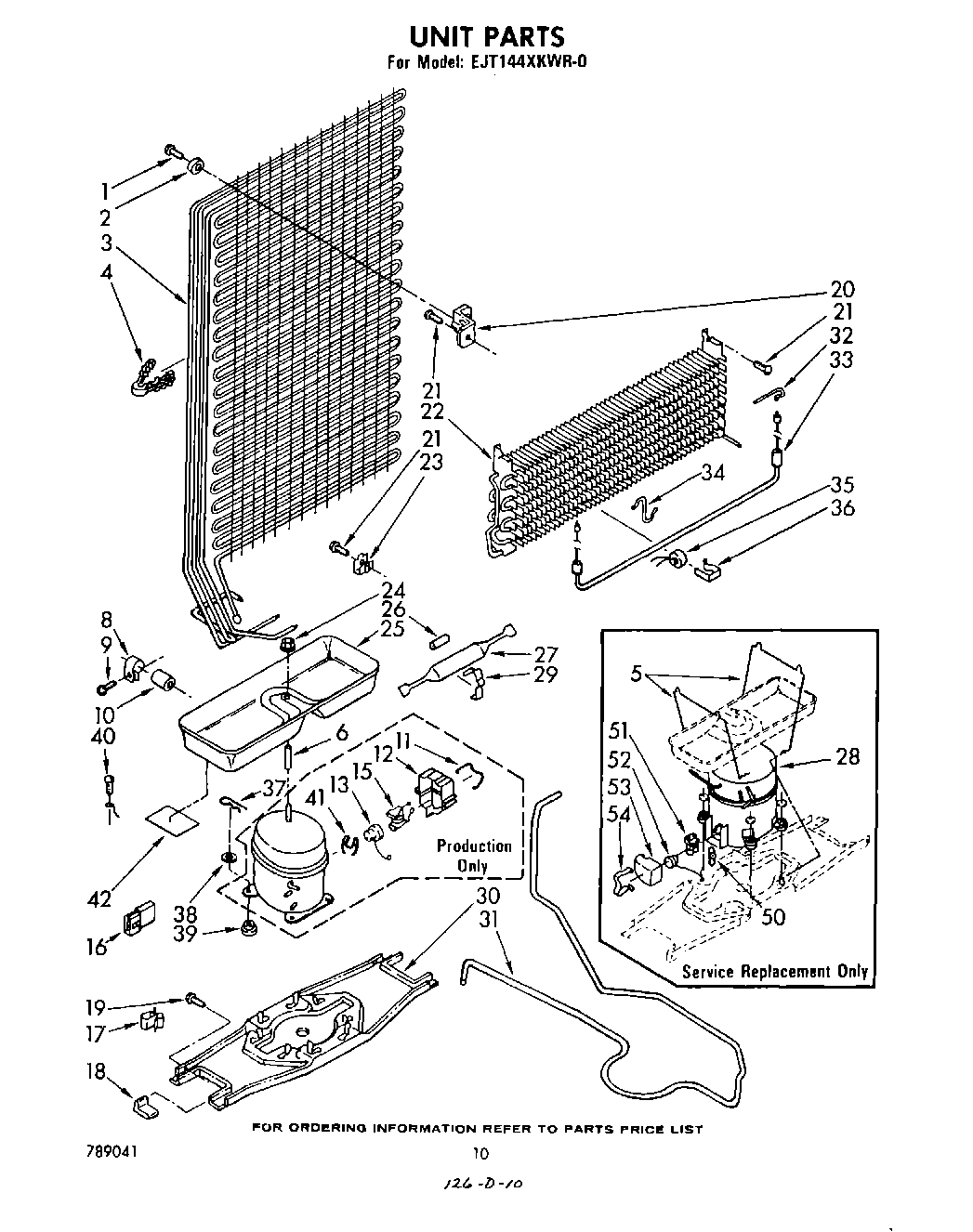

EJT144XKWR0 06 – UNIT

Products

Position	Product
1	Screw, 8 x 7/8
2	Bumper, Rubber
3	condenser & precooler assembly
4	Clip, Tube
5	retainer, drain pan (2) (service replacement only)
6	Spacer
8	Clamp Tube
9	WPW10141625 Whirlpool Refrigerator Screw Assembly
10	dampener
11	case spring
12	relay case
13	overload protector
15	Relay
16	WP717253 Whirlpool Dishwasher Connector
17	W10812038 Whirlpool Refrigerator Clip
18	support grommet (2)
19	489340 Whirlpool Refrigerator Screw
20	Condenser Bracket (Top)
21	WP489069 Whirlpool Compactor Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	WP487939 Whirlpool Refrigerator Nut
25	Tray, Evaporator
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 32, 33, 34, 35 & 36) (Also Order 876765 Tube Kit)
29	Drier Clamp
30	Unit, Frame
31	heat exchanger
32	Clip, Heater (2)
33	Heater, Defrost
34	Support, Heater
35	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
36	Clamp
37	clip (4)
38	slotted washer (4)
39	Grommet (4)
40	303776 Whirlpool Dishwasher Screw
41	Spring, Overload
42	Pad, Sound
50	Spring, Overload
51	Relay
52	overload
53	Cover, Terminal
54	Cover, Spring
54	WP978025 Whirlpool Refrigerator Valve
54	VALVE, ACCESS (1/2“)
54	978030 Whirlpool Refrigerator Valve
54	978027 Whirlpool Refrigerator Primary Valve
54	978026 Whirlpool Refrigerator Primary Valve
54	VALVE, ACCESS (5/8“)
