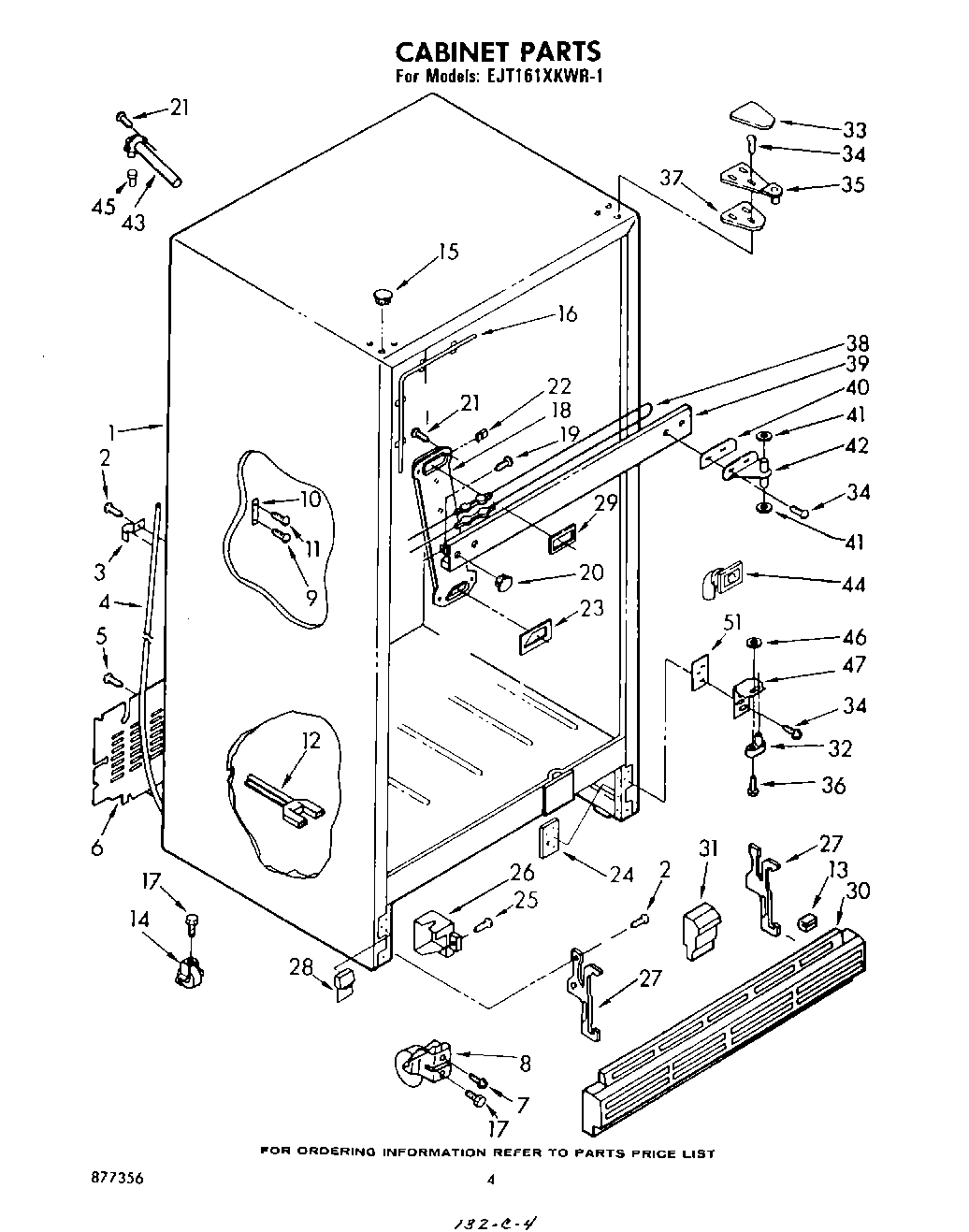

EJT161XKWR1 03 – CABINET

EJT161XKWR1 03 – CABINET

Written by

in

EJT161XKWR1 03 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	WP489069 Whirlpool Compactor Screw
3	WPL 836077
4	8316810 Whirlpool Refrigerator Drain Tube
6	Cover
7	Screw, 5/16-24 x 1
8	Roller, Front
9	WP489128 Whirlpool Refrigerator Screw
10	Strap, Ground
11	Screw, 8-32 x 1-1/2
12	WPL 548734
13	Bumper, Grille
14	WPW10250570 Whirlpool Refrigerator Cabinet Roller
15	Hole Plug (New Avocado)
15	Hole Plug (Coffee)
15	Hole Plug (2) (Almond)
15	Hole Plug (2) (Golden Harvest)
15	Hole Plug (2) (White)
16	Stile, Heater
17	Screw, 1/4-28 x 1/2 (2)
18	Duct, Air
19	Screw (Repair)
19	Screw, 8 x 3/8
20	Hole Plug (New Avocado)
20	Hole Plug (Golden Harvest)
20	Hole Plug (Coffee)
20	Hole, Plug (Almond)
20	Hole, Plug (White)
21	WP98165 Whirlpool Screw
22	Nut, Speed (4)
23	Gasket Outlet
24	Tap Plate
25	WP488729 Whirlpool Refrigerator Door Screw
26	WPL 549947
27	WPL 844614
28	WPL 989931
28	WPL 989930
28	WPL 989929
28	WPL 989928
28	Corner, Filler (
29	Gasket Inlet
30	Grille (Almond)
30	Grille (Golden Harvest)
30	Grille (New Avocado)
30	Grille (Coffee)
30	Grille (White)
31	WPL 836372
32	Hinge Pin, Bottom
33	Hinge Cover (Golden Harvest)
33	Hinge Cover (New Avocado)
33	Hinge, Cover (Coffee)
33	1119787 Whirlpool Refrigerator Hinge Cover
34	Screw (Repair)
34	WP999367 Whirlpool Refrigerator Screw
35	Hinge, Top
36	Screw 10-32 x 5/16
37	WPL 836151
38	WPL 989254
39	WPL 989191
39	WPL 836066
39	WPL 989905
39	WPL 989906
39	WPL 989907
40	Shim, Hinge Center
41	WP488296 Whirlpool Washer Refrigerator
42	Hinge, Center
43	WP2196157 Whirlpool Fill Tube
44	WPL 836096
45	WP487996 Whirlpool Refrigerator Cap Tube
46	WP487802 Whirlpool Refrigerator Washer
47	Hinge, Bottom
51	Shim, Bottom Hinge
