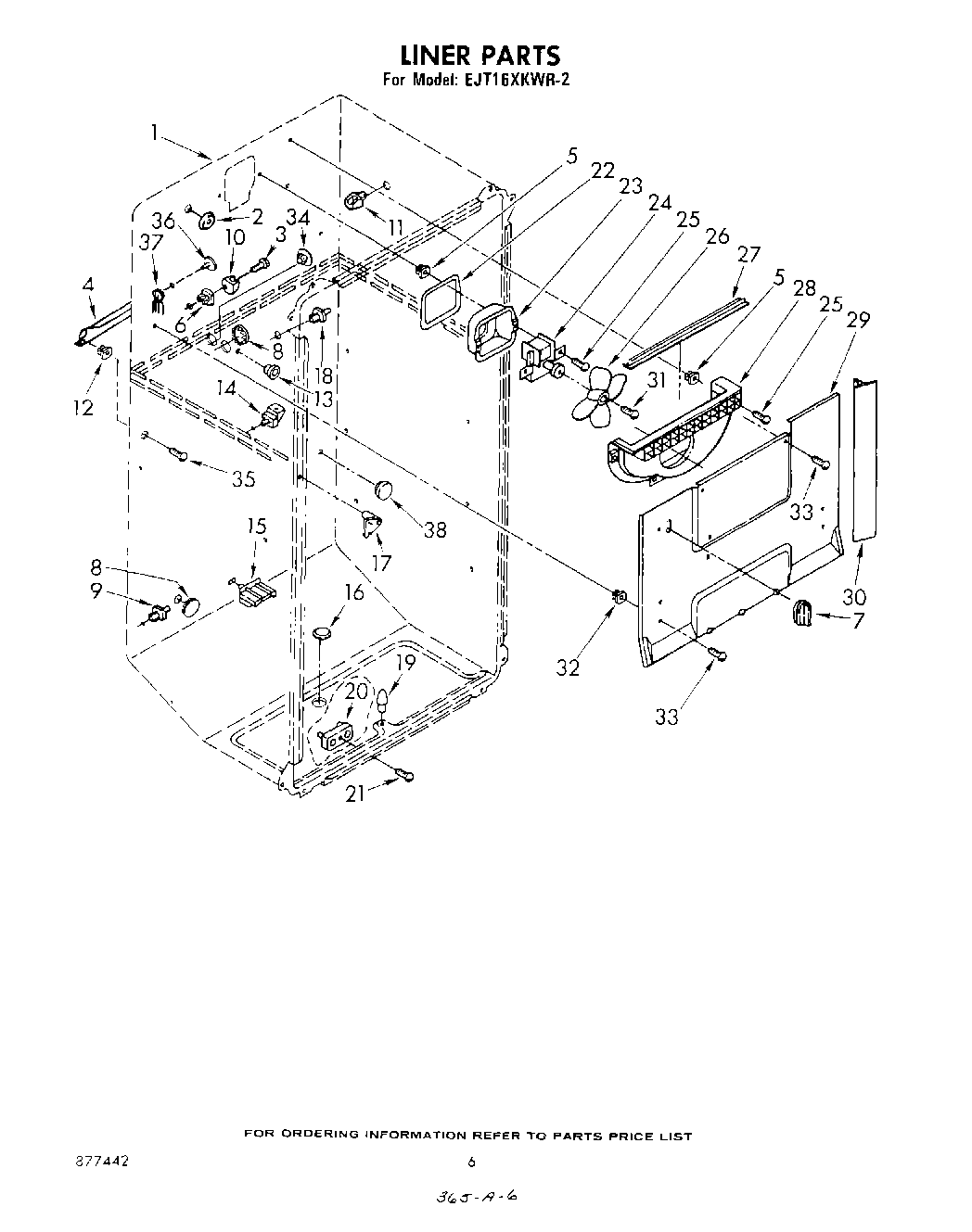

| 1 | Liner (Not A Serviceable Part) |
| 2 | Grommet, Water Inlet |
| 3 | WP488729 Whirlpool Refrigerator Door Screw |
| 4 | Reinforcement Shelf Ladder (2) |
| 5 | Grommet |
| 6 | Screw Grommet |
| 7 | Hole Plug, Evaporator |
| 8 | Hole, Plug |
| 9 | Shelf, Stud |
| 10 | Shelf Stud, Saddle L.S. |
| 11 | Shelf Stud Saddle (R.S.) |
| 12 | Screw Grommet |
| 13 | Grommet, Wiring |
| 14 | Retainer, Stud (4) |
| 15 | Stud, Support Rear |
| 16 | Drain Cover |
| 17 | Spacer, Liner (2) |
| 18 | Shelf, Stud (2) |
| 19 | Grommet, Crisper Cover |
| 20 | Spacer, Liner (8) |
| 21 | WP488163 Whirlpool Refrigerator Screw |
| 22 | Gasket, Motor Cover |
| 23 | Cover, Motor |
| 24 | 482731 Whirlpool Refrigerator Evaporator Fan Motor Kit |
| 25 | W11624204 Whirlpool Screw |
| 26 | WP1100938 Whirlpool Refrigerator Fan Blade |
| 27 | Gasket, Sealing |
| 28 | Scroll, Fan |
| 29 | Cover, Evaporator |
| 30 | Gasket, Cover (2) (15-3/4``) |
| 31 | WP487887 Whirlpool Refrigerator Screw |
| 32 | Grommet |
| 34 | Hole, Plug |
| 35 | WP98165 Whirlpool Screw |
| 36 | Receptacle Cap |
| 37 | Wiring, Ice Maker |
| 38 | Grommet Drain Fitting |
