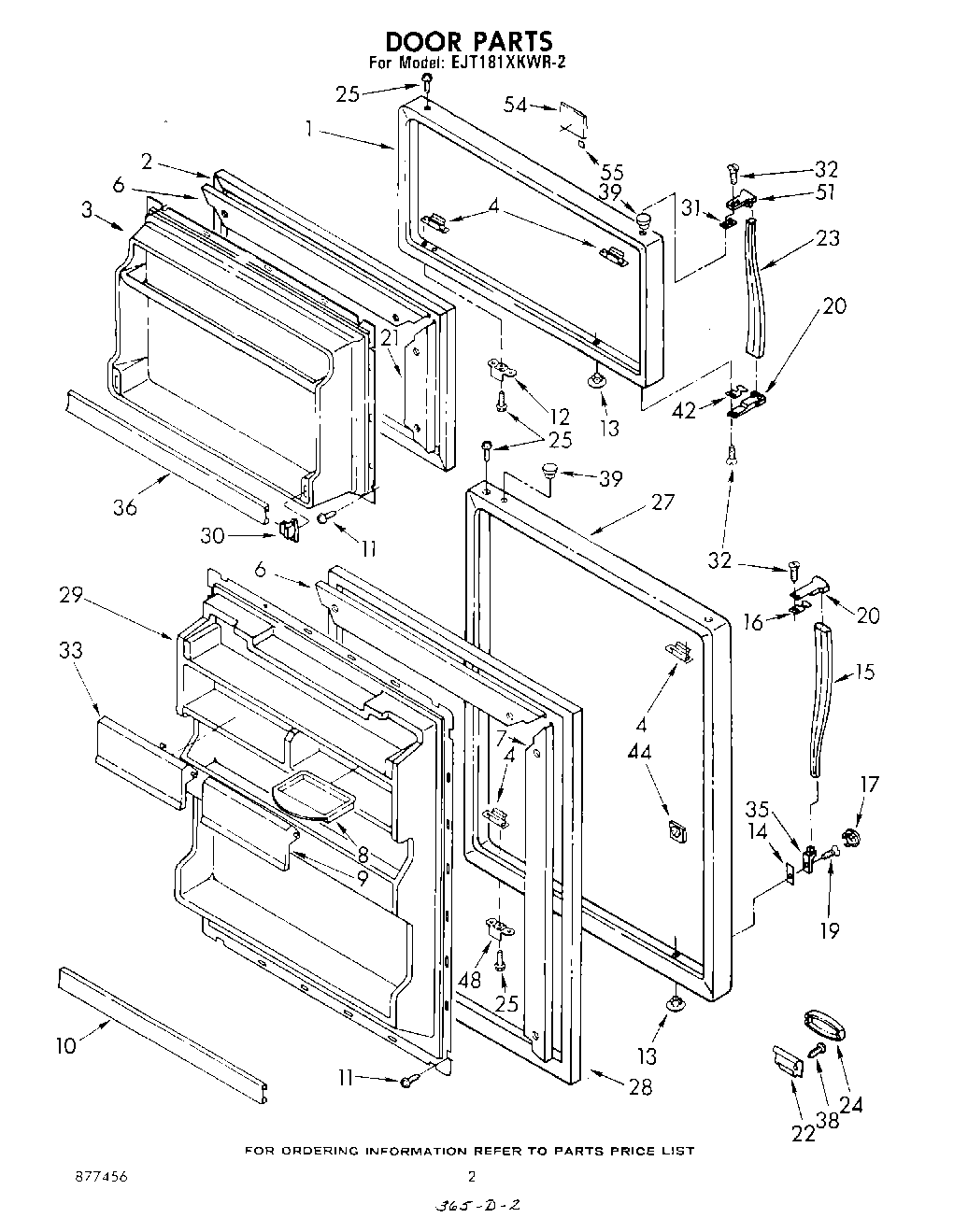

EJT181XKWR2 02 – DOOR

EJT181XKWR2 02 – DOOR

Written by

in

EJT181XKWR2 02 – DOOR

Products

PositionProduct
1Door, Freezer (Almond)
1Door, Freezer (Golden Harvest)
1Door, Freezer (White)
1Door, Freezer (New Avocado)
1Door, Freezer (Coffee)
2Gasket, Freezer Door
3Panel, Interior
4W10833053 Whirlpool Refrigerator Plate
6Retainer, Top & Bottom (2)
7Retainer, Gasket Side
9Door, Butter
10Trim, Shelf (3)
11W11624204 Whirlpool Screw
11SCREW
12Bracket, Door Stop
13Hole Plug (2)
13Hole Plug (2) (New Avocado)
13Hole Plug (2) (Golden Harvest)
13Hole Plug (2) (Coffee)
13Hole Plug (2) (Almond)
14Shim, Handle End
15Handle, Center
17WP1101634 Whirlpool Refrigerator Cover
19WP488729 Whirlpool Refrigerator Door Screw
20WP2191883 Whirlpool Refrigerator Handle Endcap
21Retainer Gasket Side
22Clip, Medallion
23WPL 982944
24Medallion (Golden Harvest)
24Medallion (Coffee)
24Medallion (New Avocado)
24Medallion (Almond)
24Medallion (White)
25Screw (Repair)
25WP488921 Whirlpool Refrigerator Screw
27Door, Refrigerator (Golden Harvest)
27Door, Refrigerator (Coffee)
27Door, Refrigerator (White)
27Door, Refrigerator (Almond)
27Door, Refrigerator (New Avocado)
28Gasket, Refrigerator Door
29Panel, Interior
30WP839975 Whirlpool Refrigerator Endcap Trim
31Shim, Handle
32Screw (Repair)
32WP488920 Whirlpool Refrigerator Screw
33Utility, Door
35WP2183139 Whirlpool Refrigerator Handle End Cap
36Trim, Shelf
39Hole Plug (New Avocado)
39WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
39Hole Plug (Coffee)
39Hole Plug (Almond)
42Spa
44WP939101 Whirlpool Refrigerator Plate
48Bracket, Door Stop
51WP2191882 Whirlpool Refrigerator Handle End Cap
54Nameplate
55Tape Strip
